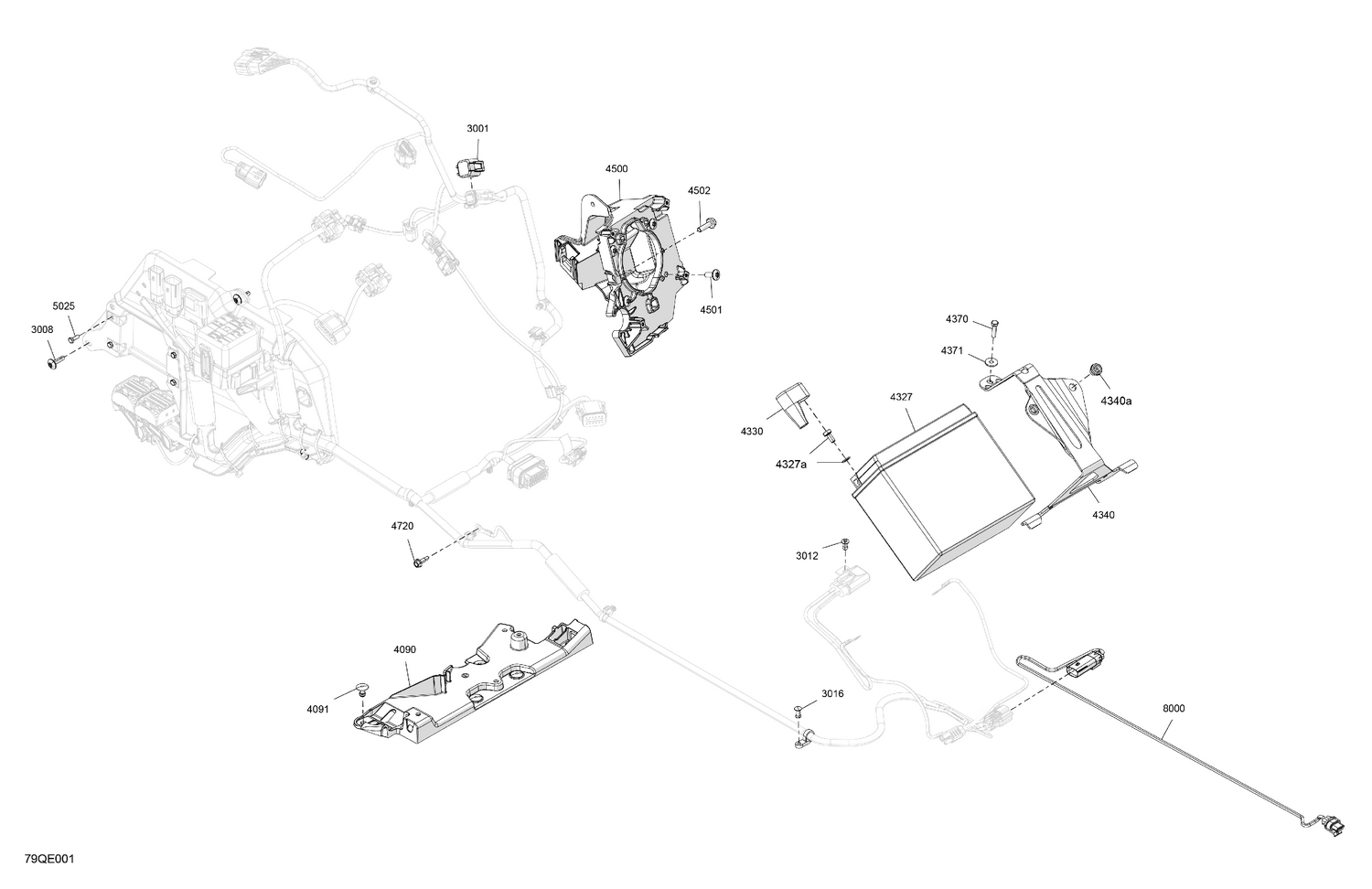

08- Electric - Lower Section
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 3001 | 515178435 | Diagnostic Cap |
| 3008 | 250000586 | Torx Truss M5 X 20 |
| 3012 | 293150301 | Pop Rivet 3/16 X ,551 |
| 3016 | 390407200 | Pop Rivet 3/16” |
| 4090 | 510007832 | Front Seat Support |
| 4091 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 4327a | 250000282 | Battery Bolt Kit |
| 4330 | 710001817 | Protector Cap |
| 4340a | 293450275 | Insert |
| 4370 | 207152044 | Hex. Screw M5 X 20 |
| 4371 | 391301600 | Washer |
| 4500 | 517309482 | Support |
| 4501 | 250000717 | Torx Head Screw M6 X 16 |
| 4502 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 4720 | 250000911 | Hex. Flange Screw M5 X 16 |
| 5025 | 207141260 | Screw Hex. M4 X 12 |
