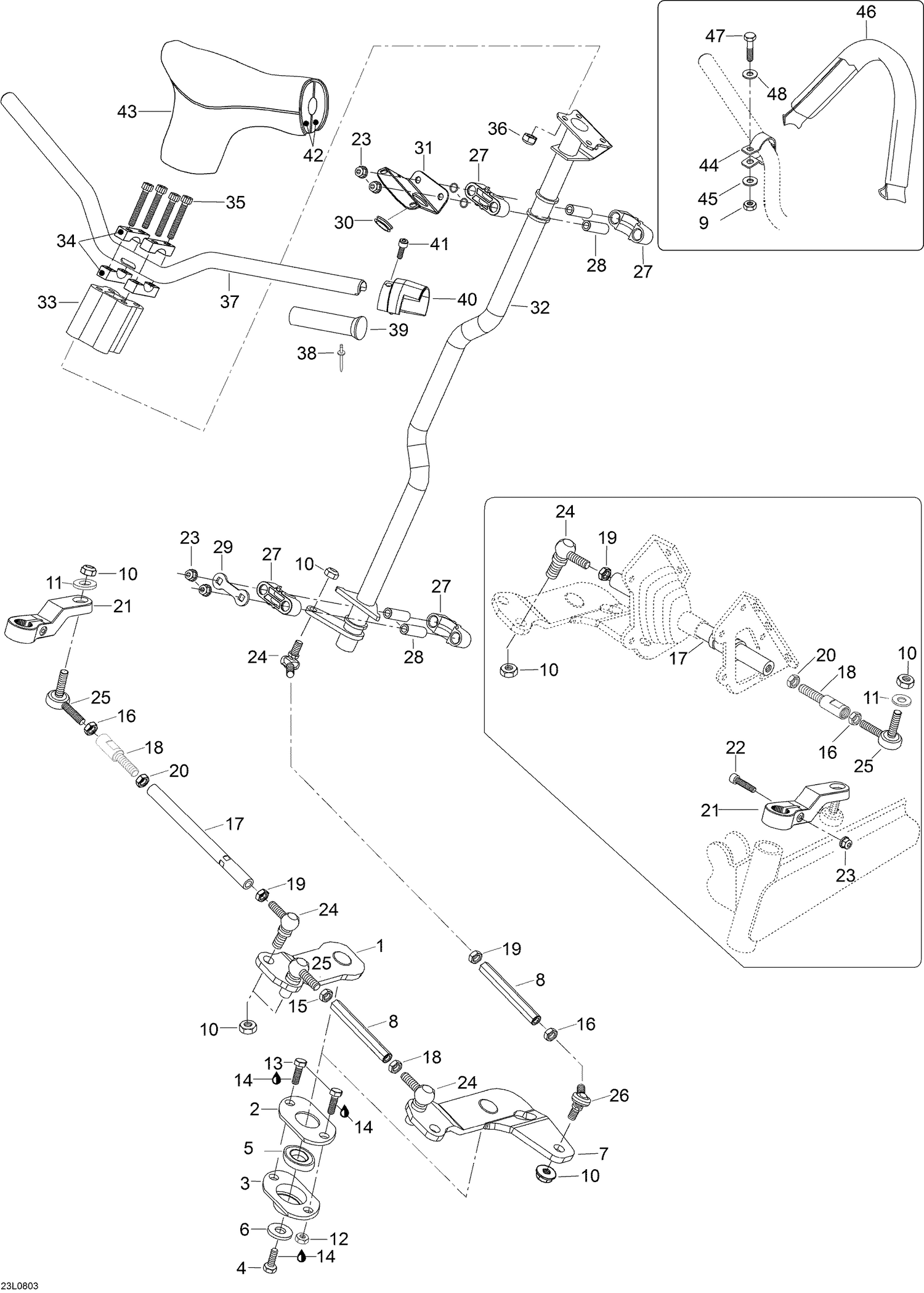

| Ref | Part Number | Description |
|---|
| 1 |
605352300 |
RH LEVER - Call your local BRP dealership |
| 2 |
5345380 |
COVER PLATE - Call your local BRP dealership |
| 3 |
605350644 |
Bearing Support |
| 4 |
40337 |
Screw M8 x 16 |
| 5 |
293350115 |
Ball Bearing This part replaces 503190795. |
| 6 |
5446279 |
Washer |
| 7 |
605352299 |
LH LEVER - Call your local BRP dealership |
| 8 |
605448308 |
SHORT TIE ROD - Call your local BRP dealership |
| 9 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 10 |
33023 |
Elastic stop nut M10 |
| 11 |
20105 |
Washer, hardened M10 |
| 12 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 13 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 14 |
293800060 |
Loctite 243, 10ml |
| 15 |
33019 |
Nut M10 |
| 16 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 17 |
605450794 |
ROD_LINK - Call your local BRP dealership |
| 18 |
605450793 |
ADJUSTER - Call your local BRP dealership |
| 19 |
33017 |
Nut M10x1.25VASDIN934 m8 ZNe(1=10pcs) - Call your local BRP dealership |
| 20 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 21 |
5348261 |
Steering arm - Call your local BRP dealership |
| 22 |
40828 |
Socket head screw M8 x 35 |
| 23 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 24 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 25 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 26 |
605450895 |
BALL JOINT RH - Call your local BRP dealership |
| 27 |
506150400 |
Half-housing |
| 28 |
506150500 |
Bushing-housing |
| 29 |
506150600 |
Plate stopper |
| 30 |
28022 |
Grommet |
| 31 |
605351973 |
Bracket |
| 32 |
605150632 |
MAIN TUBE - Call your local BRP dealership |
| 33 |
605351275 |
EXTENSION 90 MM - Call your local BRP dealership |
| 34 |
548448 |
Support of Bar - Call your local BRP dealership |
| 35 |
40209 |
Alley Screw M8x130 DIN912 (1=10pcs) - Call your local BRP dealership |
| 36 |
33027 |
Elastic stop nut M8 |
| 37 |
605251368 |
HANDLE BAR - Call your local BRP dealership |
| 38 |
36005 |
Rivet |
| 39 |
5340464 |
Grip |
| 40 |
506151566 |
ADAPTATOR - Call your local BRP dealership |
| 41 |
40390 |
Socket head screw M8 x 20 |
| 42 |
605252110 |
FOAM, FRONT - Call your local BRP dealership |
| 42 |
605252111 |
FOAM, REAR - Call your local BRP dealership |
| 43 |
605254571 |
STEERING COVER - Call your local BRP dealership |
| 44 |
506152536 |
Black Support Plate This part replaces 506151792. |
| 45 |
20003 |
Washer A6,4 |
| 46 |
506152115 |
Strap Ass'y This part replaces 415095500. |
