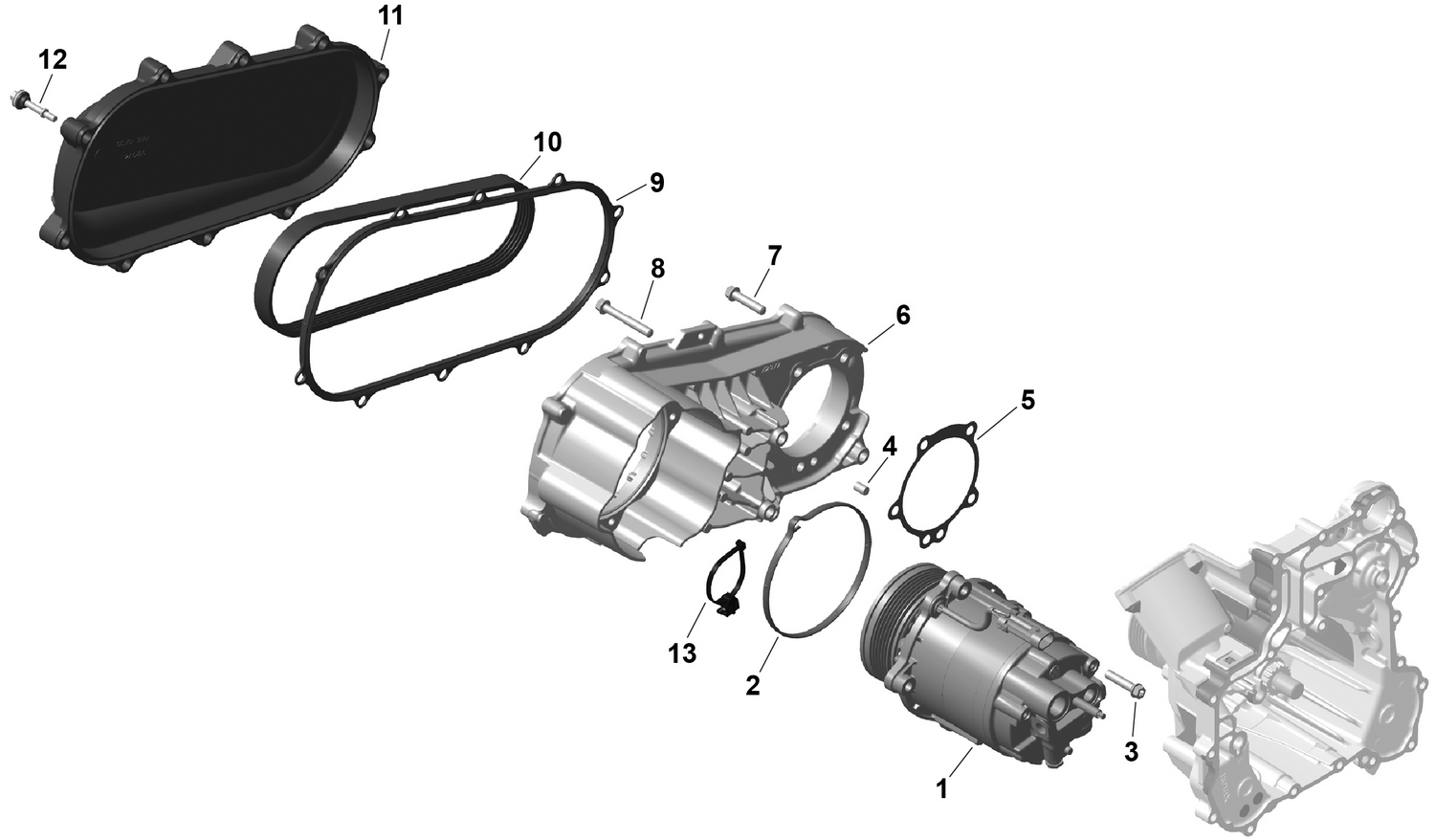

01- ROTAX - HVAC
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420889414 | Compressor |
| 2 | 420630257 | Gasket |
| 3 | 420641188 | Torx Flange Screw M8 X 35 This part replaces 420440867. |
| 4 | 420632014 | Center Pin 8 X 12 |
| 5 | 420230036 | Gasket |
| 6 | 420912372 | Bracket |
| 7 | 420641188 | Torx Flange Screw M8 X 35 This part replaces 420440867. |
| 8 | 420641213 | Torx Flange Screw M8 X 55 This part replaces 420440397. |
| 9 | 420630259 | Gasket |
| 10 | 422980810 | Belt This part replaces 420980810. |
| 11 | 420912371 | NEEDS DESCRIPTION This part replaces 420912374. |
| 12 | 420440568 | Hex Screw M6 X 30 |
