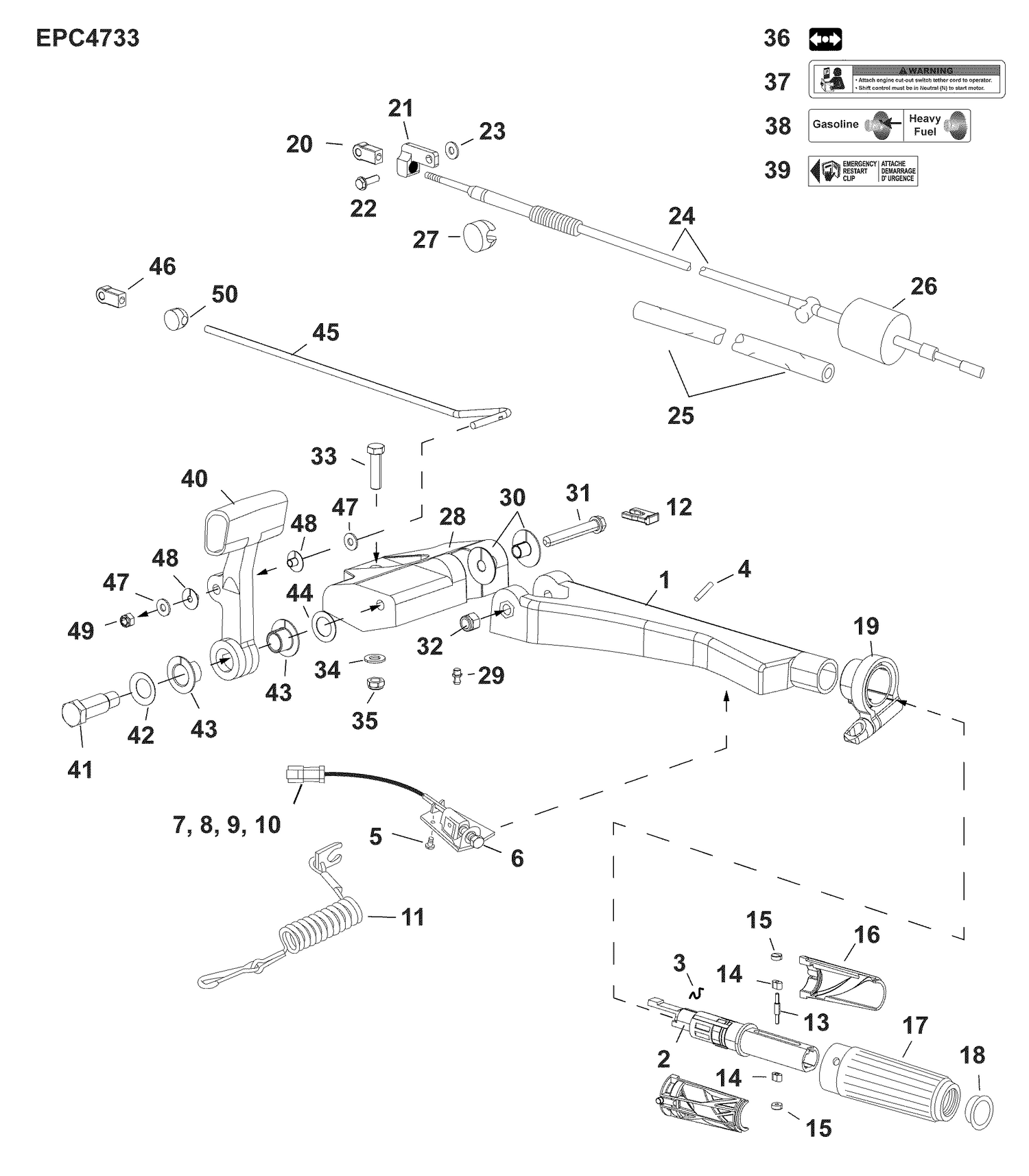

06-6_TILLER ARM
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0437144 | HANDLE ASSEMBLY, Tiller steering |
| 19 | 5008076 | COMMANDE DE FRICTION D'ACCÉLÉRATION |
| 21 | 0357357 | ANCHOR, Throttle cable |
| 24 | 5009152 | THROTTLE CABLE |
| 27 | 0357364 | BUSHING, Throttle cable |
| 28 | 0355221 | STEERING ARM BRACKET, Tiller |
| 40 | 0341384 | LEVER, Shift |
| 41 | 0357990 | SCREW, Shift lever |
| 42 | 0127386 | RONDELLE |
| 44 | 0908398 | WASHER |
| 45 | 0356357 | SHIFT ROD |
| 47 | 0329241 | RONDELLE |
