Parts Catalog

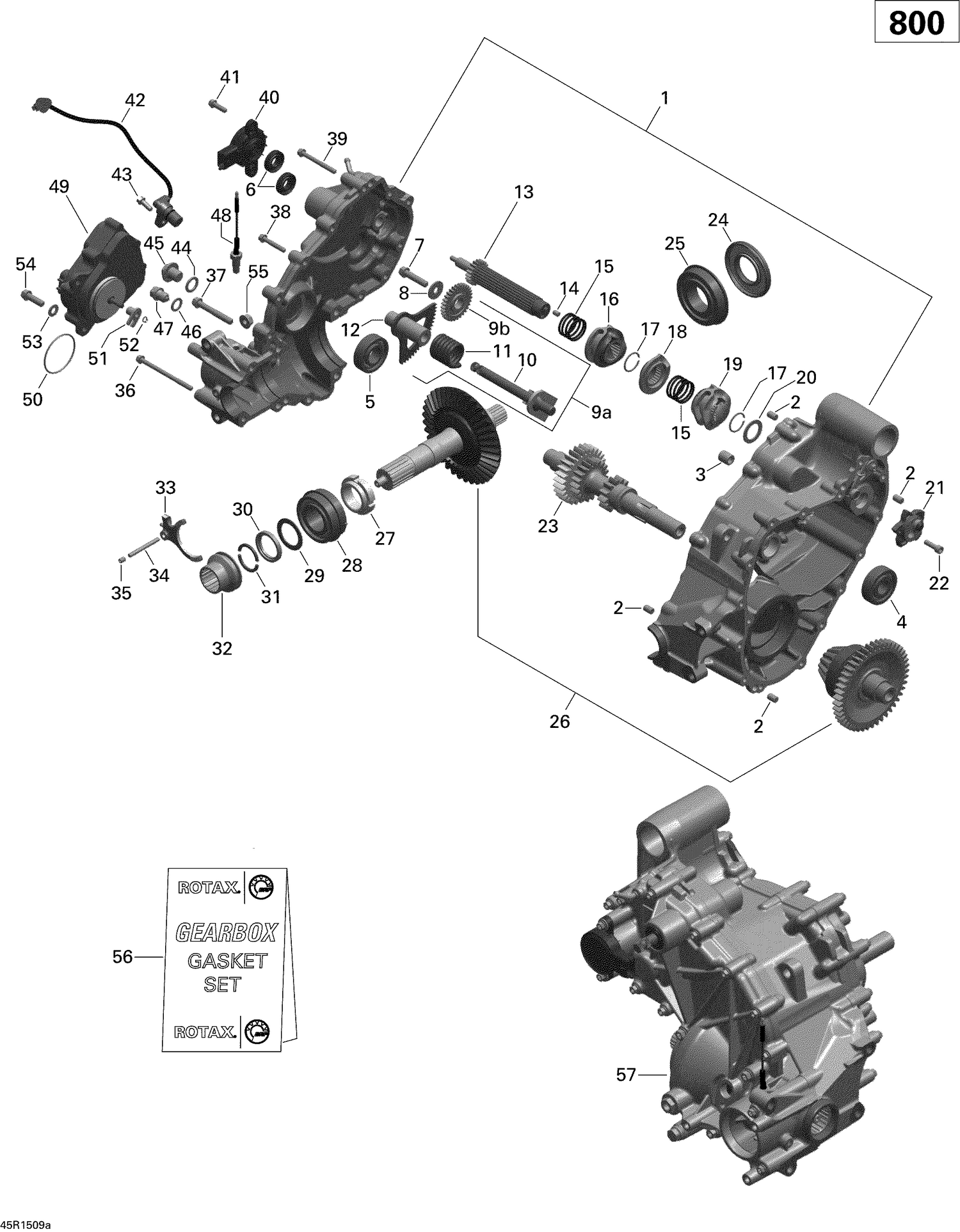

05- Gear Box 1_45R1509a

Parts (44)

Ref	Part Number	Description
2	420632010	Center Pin 8 X 12
4	420932816	Ball Bearing This part replaces 420932815.
5	420932433	Ball Bearing 6204
6	420250450	Oil Seal
7	420641188	Torx Flange Screw M8 X 35
8	420227937	Plain Washer
9b	Not	Available As Spare Part - Intermediate Gear, 30 Teeth
10	Not	Available As Spare Part - Shift Shaft
11	Not	Available As Spare Part - Spring
12	Not	Available As Spare Part - Tooth Segment
14	Not	Available As Spare Part - Needle Pin
15	Not	Available As Spare Part - Compression Spring
16	Not	Available As Spare Part - Gear Shifting Gate
17	Not	Available As Spare Part - Retaining Ring
18	Not	Available As Spare Part - Disengagement Gate
19	Not	Available As Spare Part - Gear Shifting Gate
20	Not	Available As Spare Part - Thrust Washer
21	Not	Available As Spare Part - Index Washer
22	420241939	Allen Screw M6 X 20
23	420637705	Countershaft This part replaces 420637425.
24	420831955	Oil Seal
33	Not	Available As Spare Part - Shifting Fork
34	Not	Available As Spare Part - Needle Pin
35	420841771	SET SCREW M6 X 8 - Call your local BRP dealership
36	420641228	Torx Flange Screw M6 X 85
37	420641213	Torx Flange Screw M8 X 55
38	420440274	Torx Flange Screw M6 X 35
39	420440702	Torx Flange Screw M6 X 55
40	420266168	Angle Rotation Sensor
41	420641048	Torx Flange Screw M6 X 16
42	420265727	Camshft Position Sensor Ass'y This part replaces 420265626.
43	420641048	Torx Flange Screw M6 X 16
44	420650350	O-Ring
45	420241662	Plug Screw M14 X 1.5 This part replaces 420241660.
46	420250640	Copper Washer
47	420241787	Magnetic Drain Plug M12 This part replaces 420241786.
48	420640192	Contact Screw M10 Ass'y With Cable
50	293300117	O-Ring
51	415129175	Shifting Fork
52	293370042	Circlip
53	420250315	Flat Washer 8.4 mm This part replaces 420250311.
54	420440372	Torx Flange Screw M8 X 25
55	420842619	Hex. Nut M8
56	420684149	Gasket Set
