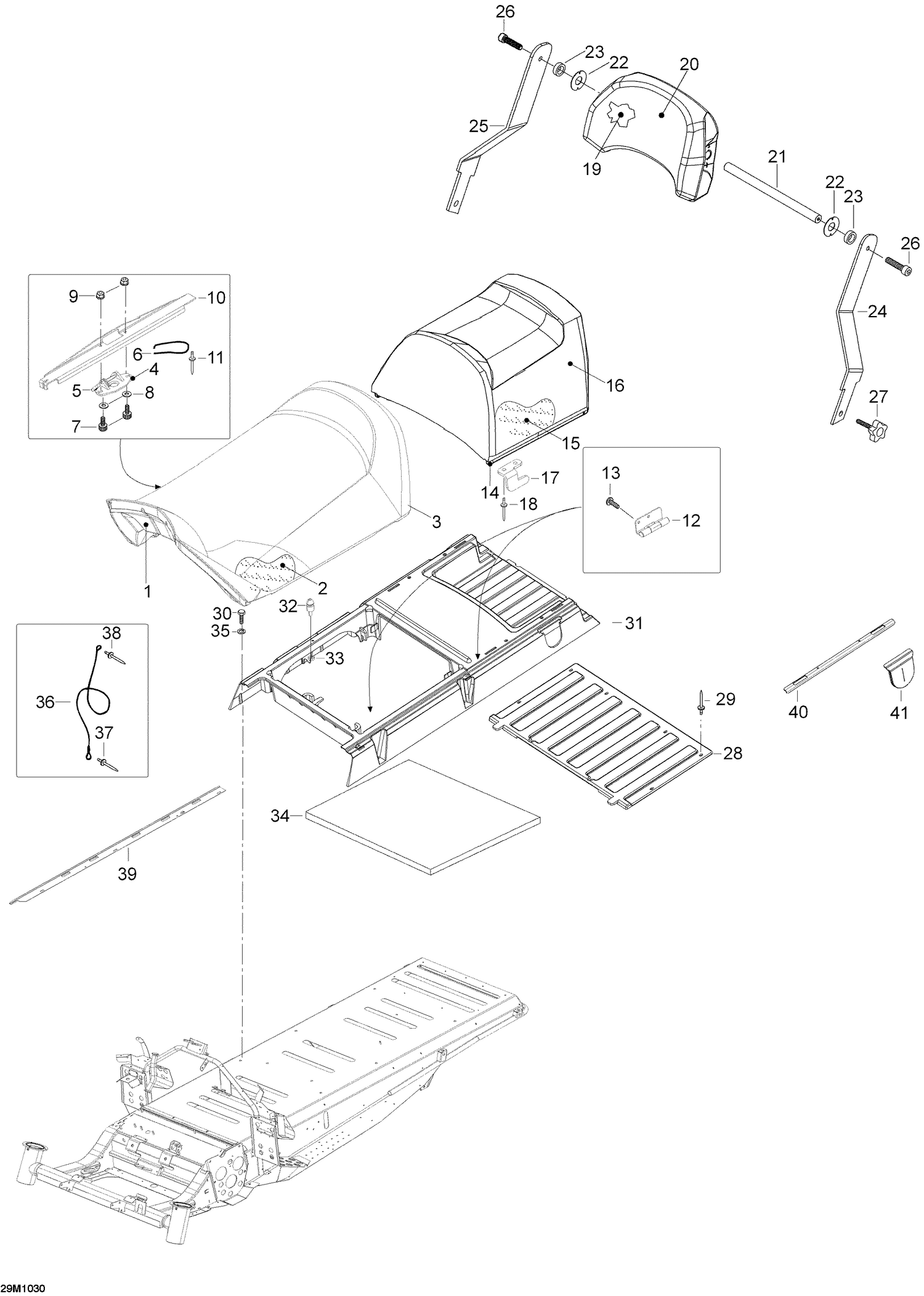

| Ref | Part Number | Description |
|---|
| 1 |
605251388 |
SEAT BASE, FRONT - Call your local BRP dealership |
| 2 |
605255689 |
Seat Foam |
| 3 |
605255216 |
SEAT FRONT COVER, SUV - Call your local BRP dealership |
| 4 |
269700109 |
Latch Ass'y This part replaces 269700076. |
| 5 |
269700109 |
Latch Ass'y This part replaces 269700077. |
| 6 |
269700109 |
Latch Ass'y |
| 7 |
M40276 |
SOCKET HEAD SCREW M6 X 25 - Call your local BRP dealership |
| 8 |
234061410 |
Flat Washer 6 mm |
| 9 |
232561414 |
Elastic Stop Nut M6 |
| 10 |
605352483 |
SUPPORT PLATE - Call your local BRP dealership |
| 11 |
M36088 |
Rivet |
| 12 |
605351798 |
Hinge |
| 13 |
M40890 |
Screw 4,2 X 16 |
| 14 |
605251390 |
SEAT BASE, REAR - Call your local BRP dealership |
| 15 |
605255691 |
REAR SEAT FOAM - Call your local BRP dealership |
| 16 |
605255218 |
SEAT COVER, SUV - Call your local BRP dealership |
| 17 |
605351808 |
LH HOOK - Call your local BRP dealership |
| 17 |
605352007 |
RH HOOK - Call your local BRP dealership |
| 18 |
36087 |
Rivet This part replaces M36087. |
| 19 |
510004365 |
BACKREST FOAM - Call your local BRP dealership |
| 20 |
605355498 |
BACKREST COVER - Call your local BRP dealership |
| 21 |
605355357 |
BACKREST AXLE - Call your local BRP dealership |
| 22 |
605355358 |
WASHER - Call your local BRP dealership |
| 23 |
510004378 |
Rubber Shim |
| 24 |
605355499 |
LH ARM - Call your local BRP dealership |
| 25 |
605355500 |
RH ARM - Call your local BRP dealership |
| 26 |
605640010 |
SCREW M10X20 - Call your local BRP dealership |
| 27 |
510003533 |
Handle M8 X 35 |
| 28 |
605255587 |
FRAME COVER - Call your local BRP dealership |
| 29 |
M36036 |
Black, Rivet |
| 30 |
207161644 |
Hex. Screw M6 X 16 |
| 31 |
605155585 |
SEAT BASE - Call your local BRP dealership |
| 32 |
605452035 |
LOCK PIN - Call your local BRP dealership |
| 33 |
232561414 |
Elastic Stop Nut M6 |
| 34 |
605355635 |
FOAM - Call your local BRP dealership |
| 35 |
234161471 |
Lock Washer M6, Black |
| 36 |
293750070 |
Seat Retainer Cable This part replaces M546777. |
| 37 |
36037 |
Black Rivet This part replaces M36037. |
| 38 |
36009 |
Rivet This part replaces M36009. |
| 39 |
605255762 |
RH SEAT BRACKET - Call your local BRP dealership |
| 40 |
605355816 |
REAR SEAT SUPPORT - Call your local BRP dealership |
