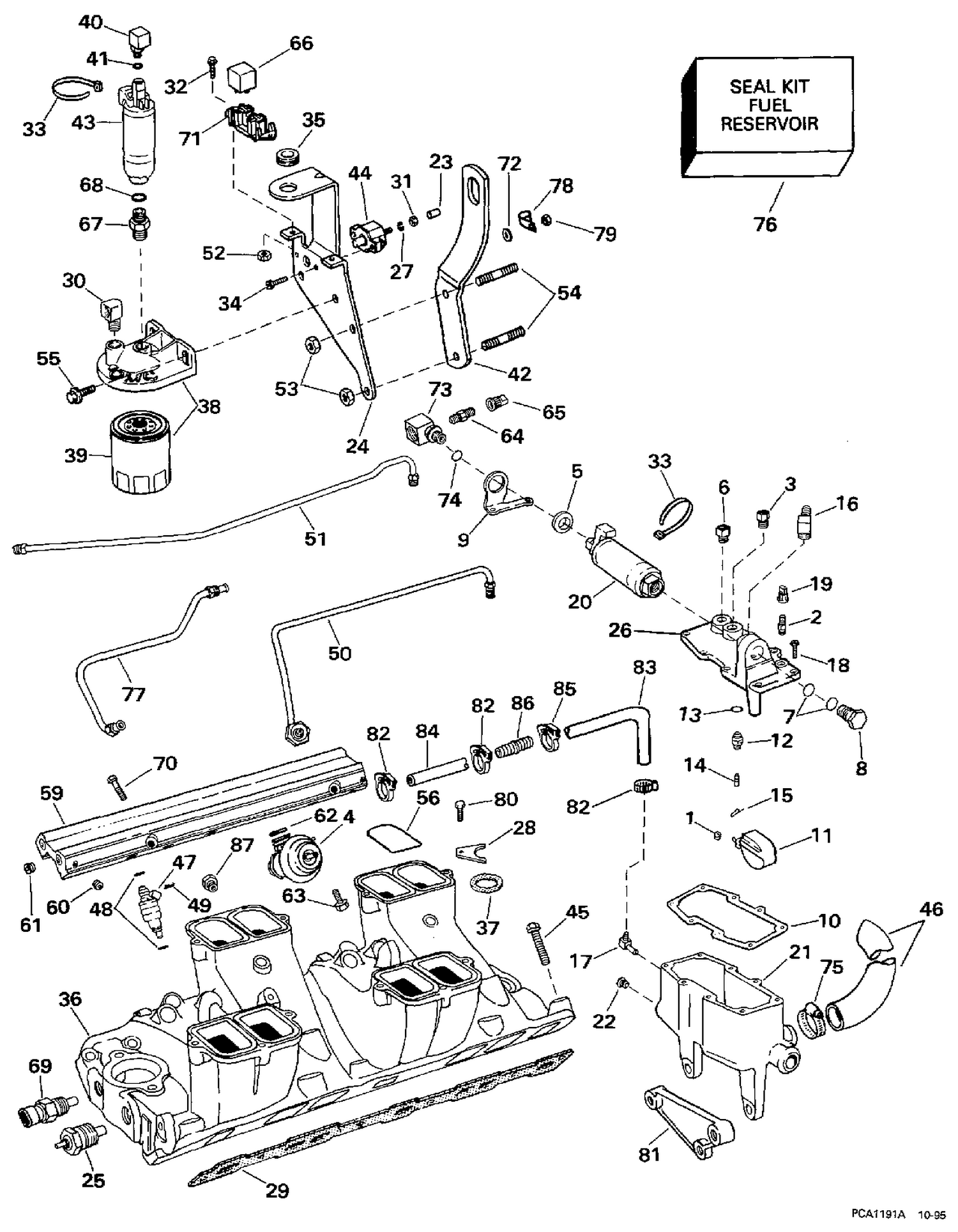

| Ref | Part Number | Description |
|---|
| 1 |
0203363 |
RETAINER This part replaces 3852034. |
| 2 |
3854152 |
VALVE, Pressure |
| 3 |
3852462 |
FITTING, Cover, return line |
| 4 |
3854517 |
PRESSURE REGULATOR |
| 5 |
0909988 |
BUSHING, Tilt & trim cable This part replaces 3852481. |
| 6 |
3852017 |
ADAPTER, Fuel line |
| 7 |
3853642 |
O-RING, Retainer, fuel pump |
| 8 |
3853572 |
RETAINER, Fuel pump to cover |
| 9 |
3853573 |
BRACKET, Fuel pump grommet |
| 10 |
3857728 |
GASKET, Cover, reservoir This part replaces 3853574. |
| 11 |
3853575 |
FLOAT |
| 12 |
3853576 |
SEAT, Float needle |
| 13 |
3853577 |
GASKET, Float needle seat |
| 14 |
0915883 |
NEEDLE, Float This part replaces 3853578. |
| 15 |
3853579 |
CLIP, Needle to float |
| 16 |
3853597 |
ELBOW, Vent, reservoir to intake |
| 17 |
0174177 |
ELBOW KIT This part replaces 3852480. |
| 18 |
3853606 |
SCREW, Cover to reservoir |
| 20 |
3857650 |
FUEL PUMP, High pressure This part replaces 3855958. |
| 21 |
3854149 |
RESERVOIR ASSY. |
| 23 |
3853537 |
CAP, Breaker assy |
| 24 |
3856439 |
BRACKET, Fuel filter & pump |
| 25 |
3852029 |
SENDER, Water temperature |
| 26 |
3854405 |
COVER, Reservoir |
| 28 |
3852108 |
CLAMP, Distributor |
| 29 |
3854096 |
GASKET SET, Intake manifold |
| 30 |
3852013 |
ELBOW, Filter inlet |
| 33 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 3852158. |
| 34 |
3853620 |
SCREW, Circuit breaker |
| 35 |
0909988 |
BUSHING, Tilt & trim cable This part replaces 3852481. |
| 36 |
3854516 |
INTAKE MANIFOLD |
| 37 |
0312780 |
GASKET, Dist. to manifold This part replaces 3852109. |
| 38 |
3850861 |
COVER & FUEL FILTER ASSY |
| 39 |
5012363 |
Filter Ay This part replaces 0502906. |
| 40 |
3853494 |
FITTING |
| 41 |
3850820 |
O-RING |
| 42 |
3854377 |
BRACKET, Cylinder head |
| 43 |
3857985 |
FUEL PUMP, Low pressure This part replaces 3854902. |
| 44 |
3854282 |
BREAKER, Fuel pump |
| 45 |
3854653 |
BOLT, Intake manifold, short |
| 45 |
3854654 |
BOLT, Intake manifold, long |
| 46 |
3855684 |
HOSE, Water pump to reservoir |
| 47 |
3854518 |
INJECTOR, Fuel |
| 48 |
3855192 |
O-RING, Fuel injector |
| 49 |
3855191 |
CLIP, Fuel injector |
| 50 |
3854646 |
LINE, Regulator to reservoir |
| 51 |
3854644 |
LINE, Fuel pump to reservoir |
| 53 |
3853273 |
LOCKNUT, Coupler |
| 54 |
0312974 |
STUD, Adapter housing This part replaces 3852117. |
| 55 |
3853326 |
SCREW, Bracket to engine |
| 56 |
3854515 |
O-RING, Manifold |
| 59 |
3854574 |
RAIL ASSY., Fuel |
| 60 |
3855032 |
PLUG, Fuel rail, 1/16 -27 NPTF |
| 61 |
3855033 |
PLUG, Fuel rail, 1/8 -27 NPTF |
| 62 |
3855190 |
O-RING, Regulator |
| 64 |
3854152 |
VALVE, Pressure |
| 67 |
3853493 |
FITTING, Filter outlet to pump |
| 69 |
3850397 |
SENSOR, Coolant temperature |
| 72 |
3852495 |
SPACER, Oil tube clamp |
| 73 |
3854924 |
FITTING |
| 74 |
3850820 |
O-RING |
| 75 |
0912627 |
CLAMP This part replaces 3852602. |
| 76 |
3850374 |
SEAL KIT, Fuel reservoir |
| 77 |
3854645 |
LINE, Reservoir to fuel rail |
| 78 |
3852458 |
CLAMP, Oil drain tube |
| 79 |
0314898 |
L'NUT, Stud, alt frt This part replaces 3852129. |
| 80 |
3853557 |
SCREW, Brace to alterntr bracket |
| 81 |
3854582 |
BRACKET, Reservoir |
| 83 |
3850653 |
HOSE, Valve to reservoir |
| 84 |
3854673 |
HOSE, Thermostat to valve |
| 85 |
3854925 |
CLAMP, Anti-siphon valve |
| 86 |
3850666 |
VALVE, Anti-siphon |
