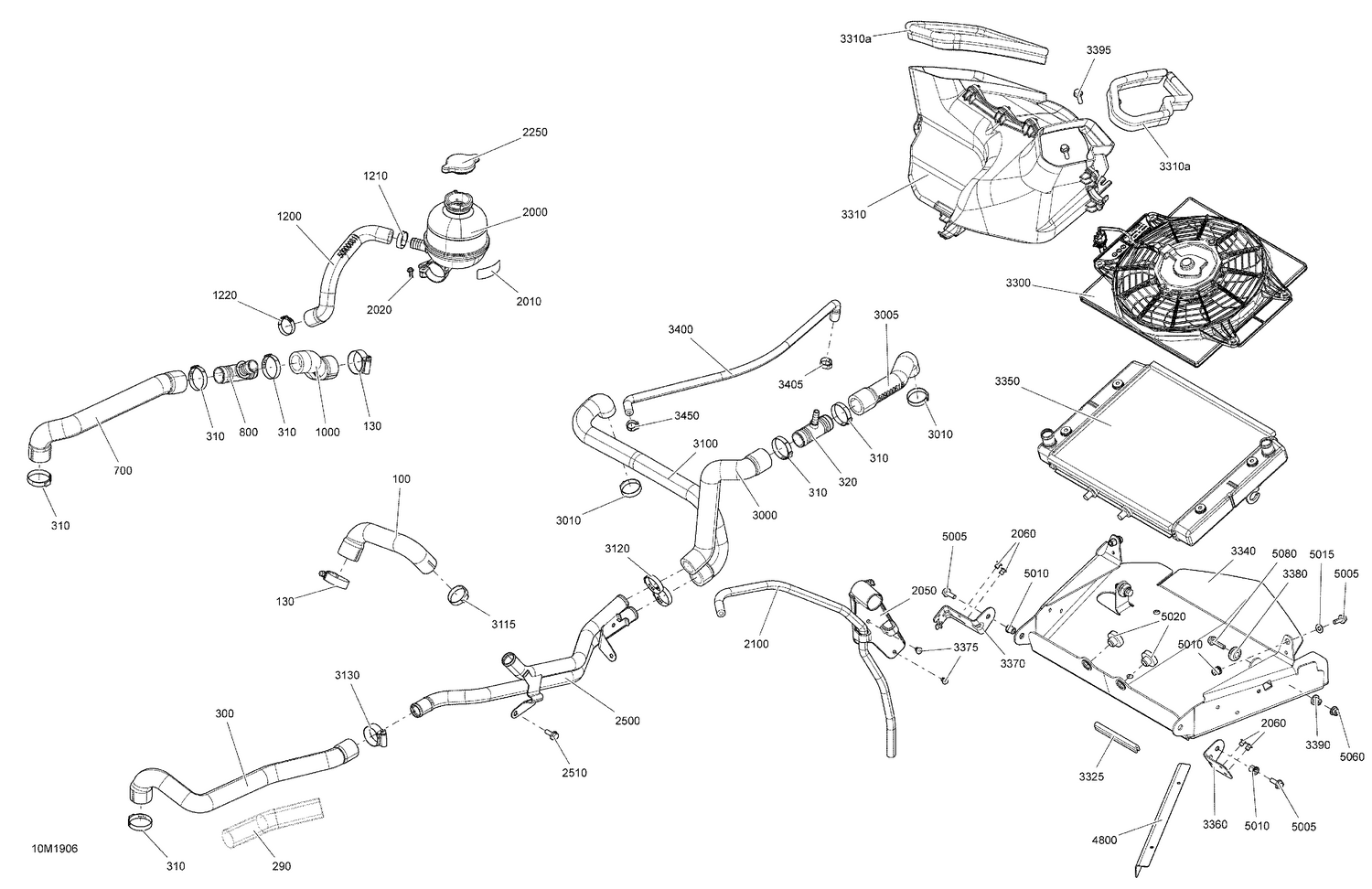

| Ref | Part Number | Description |
|---|
| 100 |
509000932 |
Engine Outlet Hose |
| 130 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 290 |
219704421 |
Protector Tube 32 Mm 1000Mm Long |
| 300 |
509000634 |
Hose |
| 310 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 320 |
509000510 |
T-Fitting |
| 700 |
509001062 |
Radiator Return Hose This part replaces 509000697. |
| 710 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 800 |
509000372 |
T-Fitting |
| 1000 |
509000921 |
Radiator Hose |
| 1010 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 1020 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 1200 |
509001063 |
Filling Hose This part replaces 509000811. |
| 1210 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 1220 |
293650099 |
Crimp Clamp |
| 2000 |
509000875 |
Cooling Tank |
| 2010 |
516005904 |
Warning Decal |
| 2020 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 2050 |
509000694 |
Front Bracket |
| 2060 |
390909200 |
Avex Rivet |
| 2100 |
509000775 |
Hose |
| 2250 |
509000180 |
Radiator Pressure Cap |
| 2500 |
509000800 |
Water Pipe |
| 2510 |
207561634 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 3000 |
509000617 |
Radiator Hose |
| 3005 |
509000618 |
Radiator Hose |
| 3006 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 3010 |
293650165 |
Oetiker Gear Clamp |
| 3100 |
509000560 |
Radiator Hose |
| 3110 |
293650165 |
Oetiker Gear Clamp |
| 3115 |
293650141 |
Oetiker Clamp |
| 3120 |
509000735 |
Clamp |
| 3130 |
509000931 |
Gear Clamp |
| 3300 |
509000692 |
Fan Ass'y |
| 3310a |
219704371 |
Neoprene Seal 3000 mm Long |
| 3310b |
219704371 |
Neoprene Seal 3000 mm Long |
| 3325 |
219704353 |
Was 271000110 Protection Trim |
| 3340 |
509000988 |
Radiator Support |
| 3350 |
509000972 |
Radiator |
| 3360 |
509000715 |
Support |
| 3370 |
509000772 |
Support |
| 3375 |
390909100 |
Avex Rivet |
| 3380 |
709000582 |
Grommet This part replaces 293720053. |
| 3390 |
293900100 |
Bushing |
| 3395 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 3400 |
509000860 |
Breather Hose |
| 3405 |
293650047 |
Crimp Clamp, 15.3-706R |
| 3450 |
293650025 |
Oetiker Gear Clamp |
| 4800 |
509000892 |
DEFLECTOR - Call your local BRP dealership |
| 4900 |
390909200 |
Avex Rivet |
| 5005 |
207661654 |
Hex. Flange Screw M6 X 16 |
| 5010 |
293450275 |
Insert |
| 5015 |
224061121 |
Flat Washer |
| 5020 |
709200285 |
Grommet |
| 5060 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
