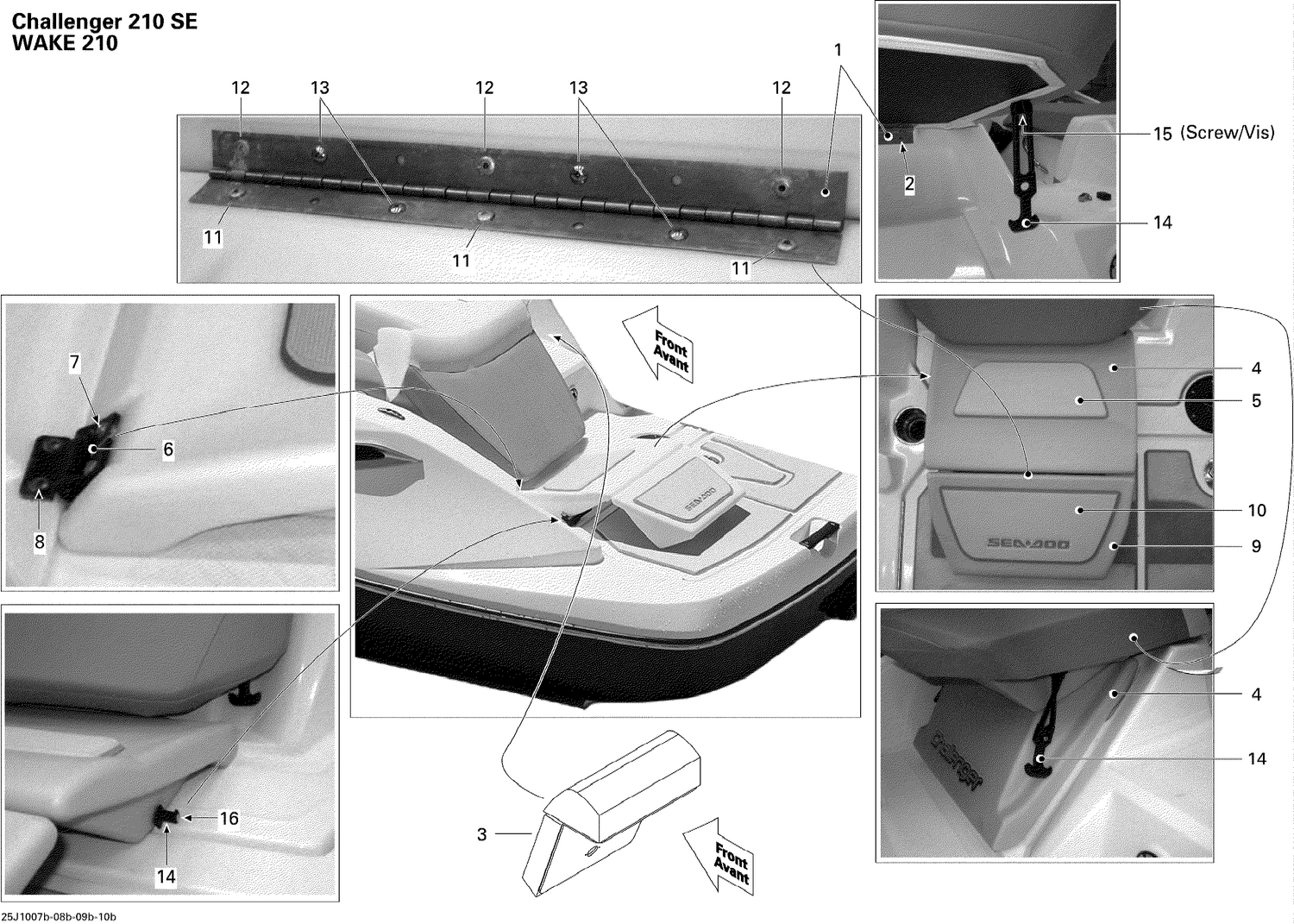

| Ref | Part Number | Description |
|---|
| 1 |
204613980 |
Hinge |
| 2 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 3 |
269002729 |
BACKREST-FILLER/REAR-CENTER - Call your local BRP dealership This part replaces 269001894. |
| 4 |
269001905 |
BASE BACKREST CUSHION - Call your local BRP dealership |
| 5 |
269001642 |
CUSHION MAT - Call your local BRP dealership |
| 6 |
269001694 |
TENSION HINGE - Call your local BRP dealership |
| 7 |
204100220 |
Pan Head Screw 10-32 X 1/2" |
| 8 |
202000203 |
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership |
| 9 |
269001906 |
BASE CUSHION - Call your local BRP dealership |
| 10 |
269001643 |
CUSHION MAT - Call your local BRP dealership |
| 11 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 12 |
293150037 |
Avdel Rivet 3/16" |
| 13 |
204100049 |
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership |
| 14 |
204071304 |
RUBBER LATCH - Call your local BRP dealership |
| 15 |
204100081 |
SCREW #8 X 1-1/4? - Call your local BRP dealership |
