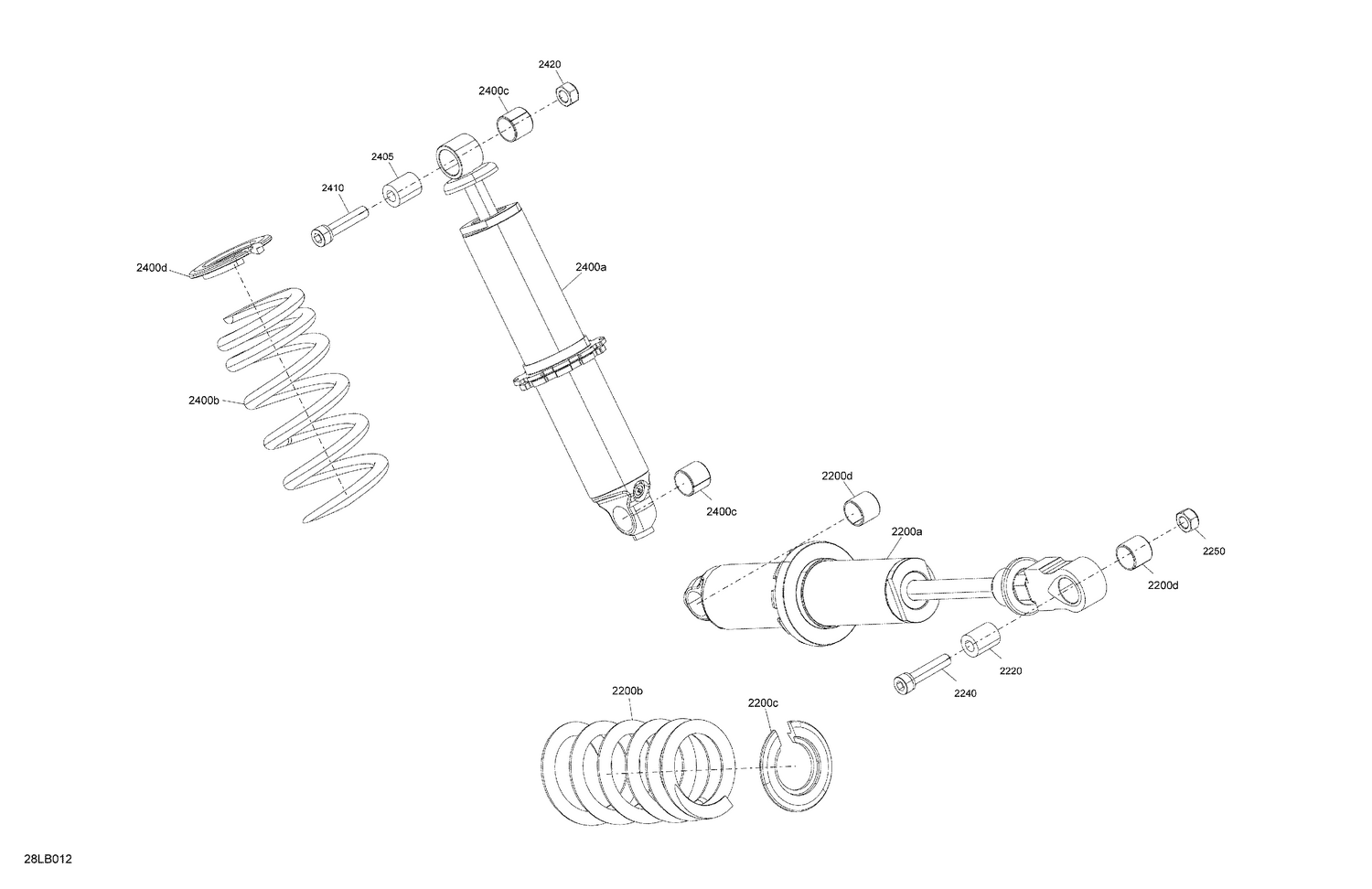

05- Suspension - Rear Shocks
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2200a | 503195778 | Rear Shock |
| 2200b | 503196071 | Spring 330 MM-50 N/MM |
| 2200c | 503196528 | Stopper Spring This part replaces 503194922. |
| 2200d | 503195134 | Glide Bearing |
| 2220 | 5446652 | Bushing |
| 2240 | 40134 | Screw Socket HD.DIN 912 |
| 2250 | 232500416 | Elastic Stop Nut M10 |
| 2400a | 503195779 | Center Shock |
| 2400b | 503193292 | Spring 220 MM-30 N/MM |
| 2400c | 503195134 | Glide Bearing |
| 2400d | 503196528 | Stopper Spring This part replaces 503194922. |
| 2405 | 5446652 | Bushing |
| 2410 | 40134 | Screw Socket HD.DIN 912 |
