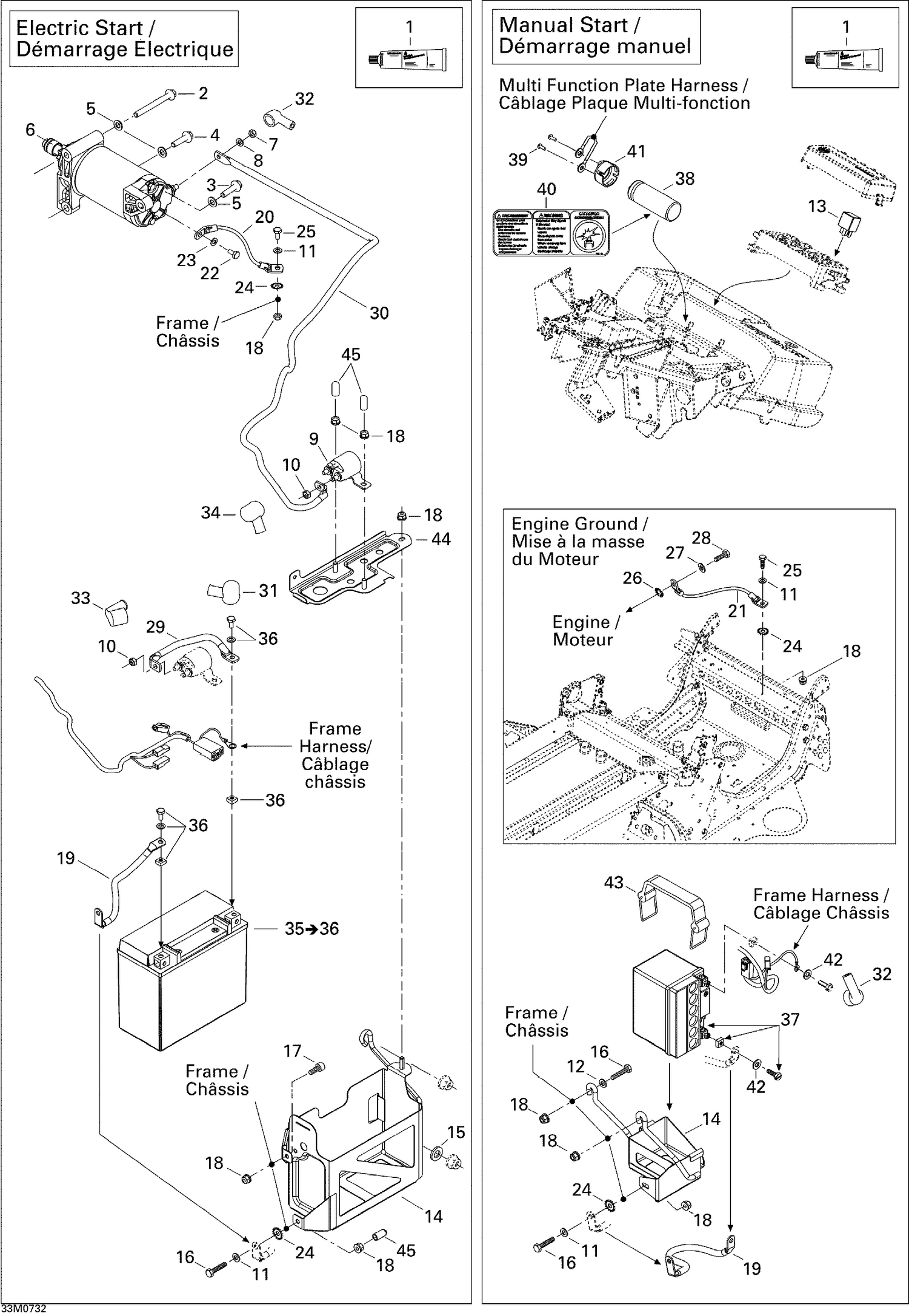

10- Electrical System
Parts (6)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 11 | 234061410 | Flat Washer 6 mm |
| 19 | 515176172 | GROUND WIRE - Call your local BRP dealership |
| 24 | 250200041 | Lock Washer Serrated M6 |
| 25 | 207662044 | Hex. Flange Screw M6 X 20 |
| 32 | 278001771 | PROTECTOR CAP - Call your local BRP dealership |
