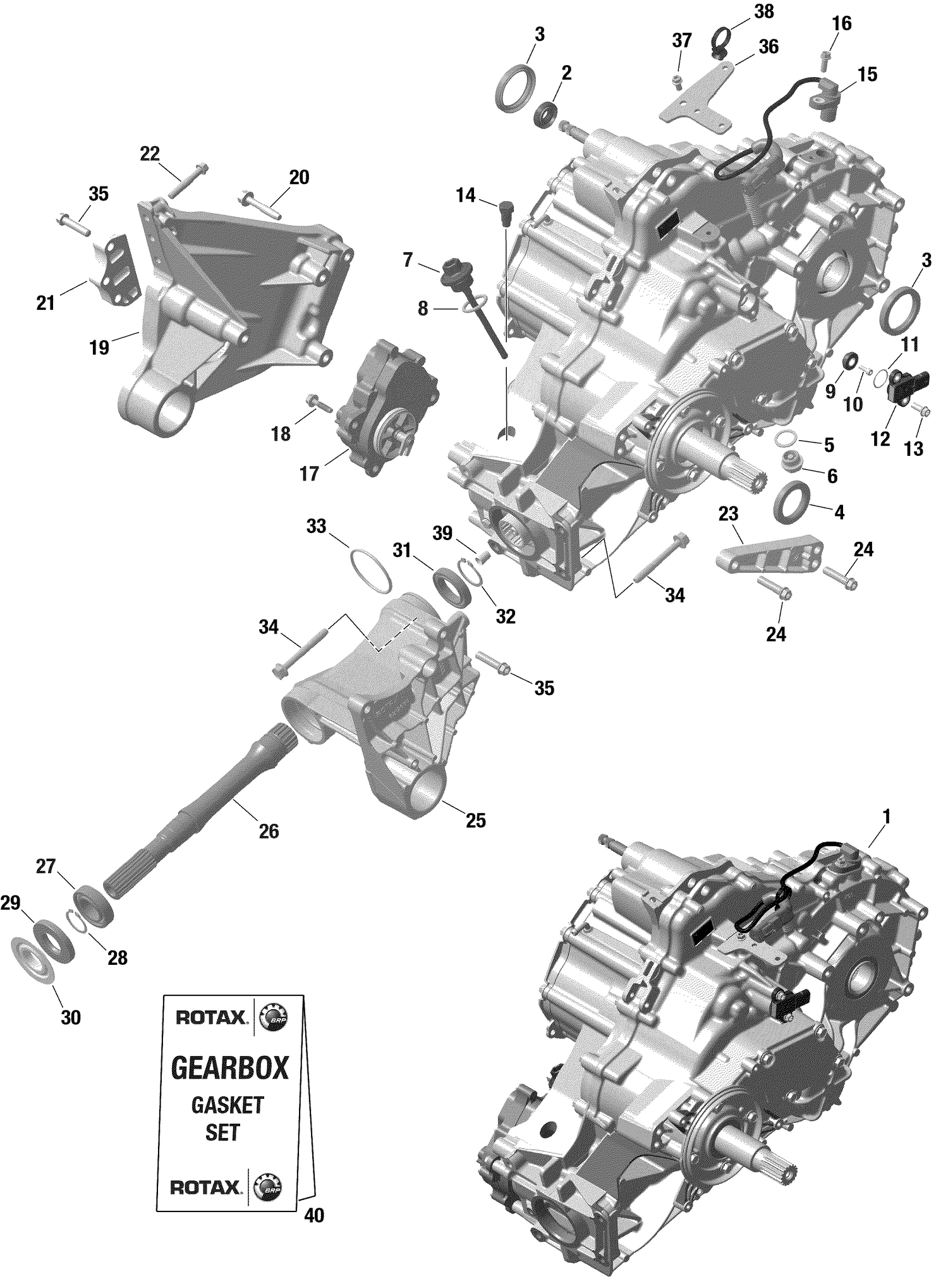

01- Rotax - Gear Box And Components - 509
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420686788 | Gear Box This part replaces 420686509. |
| 2 | 420250452 | Oil Seal |
| 3 | 420230137 | Oil Seal |
| 4 | 420950089 | Oil Seal |
| 5 | 420552280 | Crush Washer |
| 6 | 420840278 | Drain Plug M18 X 1.5 This part replaces 420840277. |
| 7 | 420256806 | Oil Dipstick |
| 8 | 420631640 | O-Ring |
| 9 | 420256000 | Magnet |
| 10 | 420440292 | Allen Screw M4 X12 |
| 11 | 420230405 | O-Ring |
| 12 | 420265122 | Angle Of Rotation Sensor |
| 13 | 420440162 | Torx Flange Screw M6 X 16 |
| 14 | 420241905 | Plug Screw M10X10 |
| 15 | 420265727 | Camshft Position Sensor Ass'y This part replaces 420265722. |
| 16 | 420440162 | Torx Flange Screw M6 X 16 |
| 17a | 293300117 | O-Ring |
| 17b | 415129175 | Shifting Fork |
| 17c | 293370042 | Circlip |
| 18 | 420441951 | Collar Screw M6 x 25 |
| 19 | 420212638 | Engine Bracket Rear Mag Side |
| 20 | 420441932 | Torx Flange Screw M8 X 45 This part replaces 420441931. |
| 21 | 420212639 | Engine Bracket Front Mag Side |
| 22 | 420641208 | Hex. Flange Screw M8 X 45 |
| 23 | 420212641 | Gear Box Bracket |
| 24 | 420440861 | Torx Flange Screw M8 X 35 |
| 25 | 420212631 | Engine Bracket PTO Side |
| 26 | 420637600 | Drive Shaft |
| 27 | 420232342 | Ball Bearing This part replaces 420232341. |
| 28 | 420945810 | Circlip |
| 29 | 420831178 | Oil Seal |
| 30 | 420626990 | Cover |
| 31 | 420632275 | Ball Bearing |
| 32 | 420945610 | Retaining Ring |
| 33 | 420450393 | O-Ring This part replaces 420450391. |
| 34 | 420440403 | Torx Flange Screw M8 X 65 |
| 35 | 420440861 | Torx Flange Screw M8 X 35 |
| 36 | 420651042 | Support Plate |
| 37 | 420440162 | Torx Flange Screw M6 X 16 |
| 38 | 420951346 | Tie Rap 212mm |
| 39 | 420929670 | Dowel Pin 10 X 13 |
