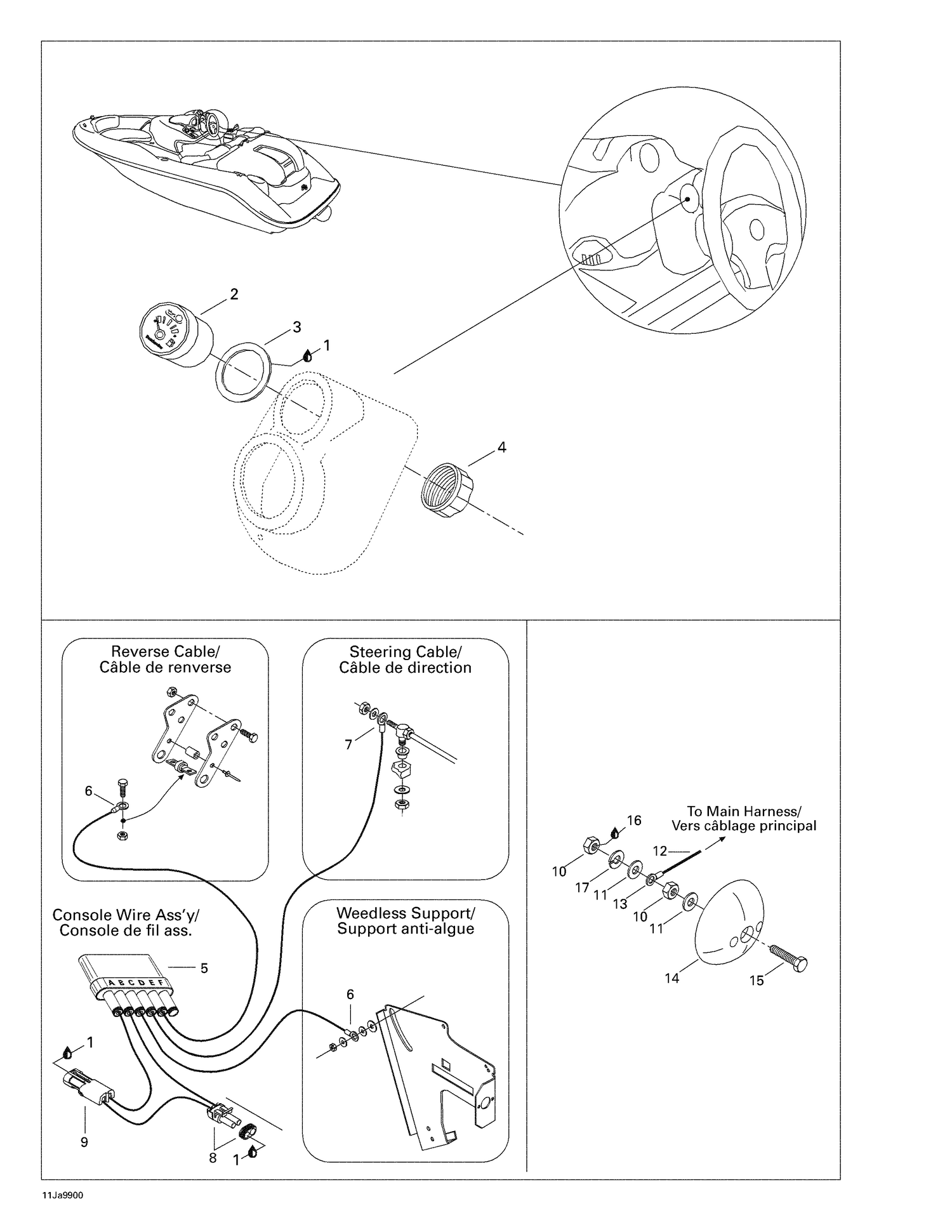

10- Electrical Accessories 1
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 2 | 204470319 | Fuel/Oil Gauge |
| 3 | 204470308 | Gasket |
| 4 | 204470146 | Gauge Nut |
| 6 | 278001392 | Open Barrel Terminal |
| 7 | 278001323 | Open Barrel, Amp |
| 8 | 278000220 | Male Connector, 2 Circuits |
| 9 | 278000217 | Female Housing, 2 Circuits |
| 10 | 211100026 | HEX. NUT 1/4 - Call your local BRP dealership |
| 11 | 234062600 | Flat Washer M6, Stainless |
| 13 | 278001392 | Open Barrel Terminal |
| 14 | 204470290 | Anode |
| 15 | 204100001 | Hex. Screw |
| 16 | 296000309 | Silicone Sealant 51388, 300 ml |
