| Ref | Part Number | Description |
|---|
| 13 |
0436079 |
THERMOSTAT ASSY. |
| 14 |
0436195 |
ENSEMBLE THERMOSTAT |
| 16 |
0301967 |
O RING |
| 18 |
0437694 |
ENSEMBLE MEMBRANE & COUPELLE |
| 21 |
0308458 |
JOINT TORIQUE, tête carter-moteur |
| 23 |
0585023 |
INTERRUPTEUR THERMOSTATIQUE, bâbord |
| 29 |
0344228 |
CYLINDER HEAD |
| 30 |
0341961 |
SCREW, Cylinder head, M8 |
| 31 |
0325569 |
T, amorçage |
| 33 |
0437684 |
SPARK PLUG, Champion QL82C |
| 35 |
0341052 |
SCREW, Filter bracket |
| 36 |
0342246 |
HEAT SHIELD |
| 38 |
HOSE,#1 |
Transfer port check valve to #3 boost port elbow, 4 1/2 in. (114mm) |
| 38 |
HOSE,#2 |
Transfer port check valve to #1 boost port elbow, 6 1/2 in. (165mm) |
| 41 |
HOSE, |
Tee to #2 boost port elbow, 5 1/2 in. (140mm) |
| 42 |
HOSE, |
Lower main elbow to upper main elbow, 1 1/2 in. (292mm) |
| 43 |
0514005 |
SUPPORT, connecteur sectionneur de batterie |
| 46 |
0342496 |
THROTTLE STOP |
| 48 |
0341632 |
GUIDE, Ball detent |
| 49 |
0334338 |
SCREW, Lever to shift rod |
| 50 |
0315164 |
BALL, Shift detent |
| 51 |
0339331 |
GASKET, Powerhead base |
| 53 |
0341902 |
BRACKET |
| 56 |
0344468 |
BRACKET, Filter mounting |
| 57 |
0341052 |
SCREW, Filter bracket |
| 58 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 59 |
0344132 |
BRACKET, Plug wires |
| 62 |
0344455 |
SCREW, Air silencer support |
| 63 |
0314416 |
BUMBER, Advance screw |
| 64 |
0337415 |
NUT |
| 65 |
0329241 |
RONDELLE |
| 66 |
0437910 |
POWERHEAD GASKET SET |
| 0438067 |
0438067 |

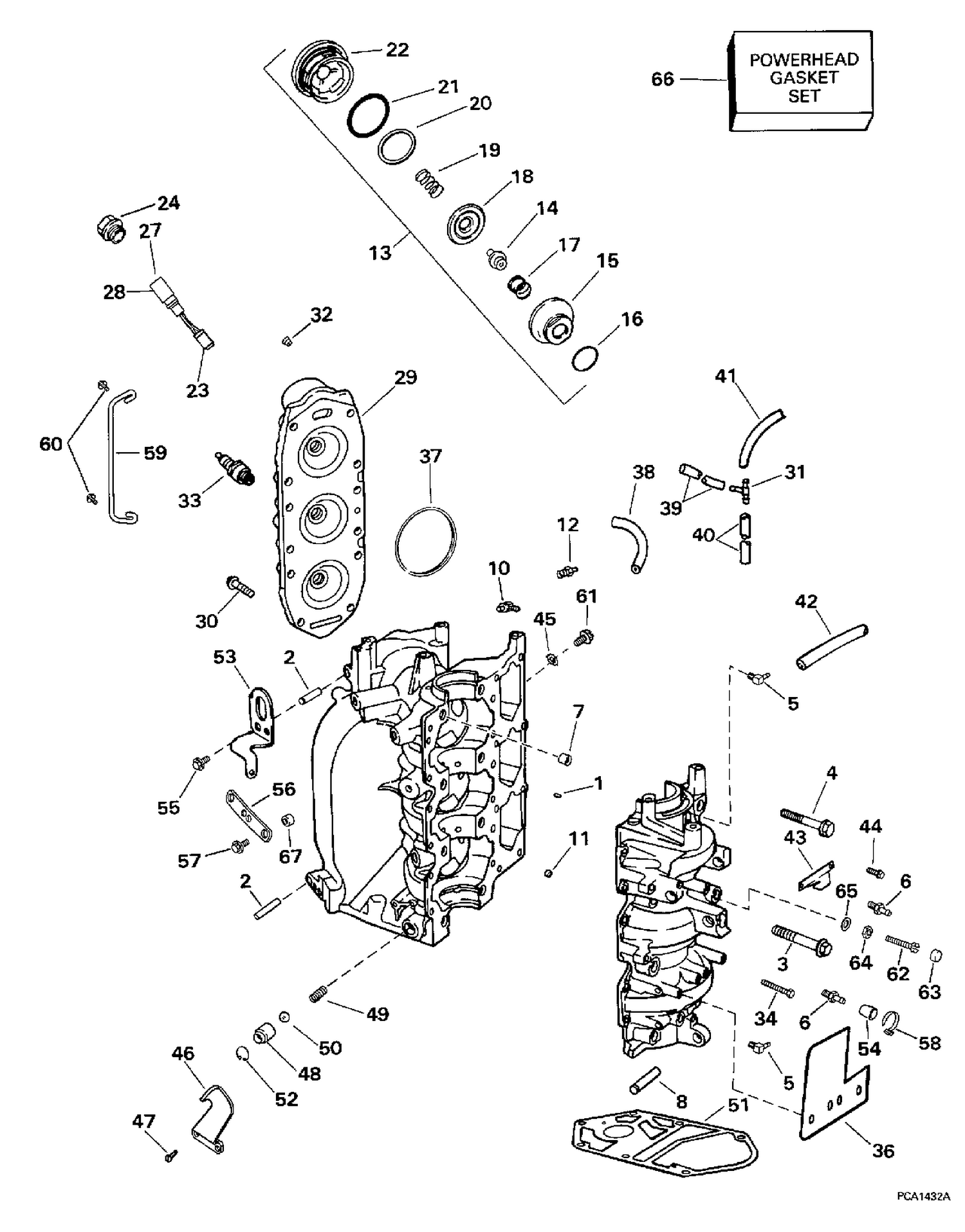

CYLINDER & CRANKCASE ASSY. |
