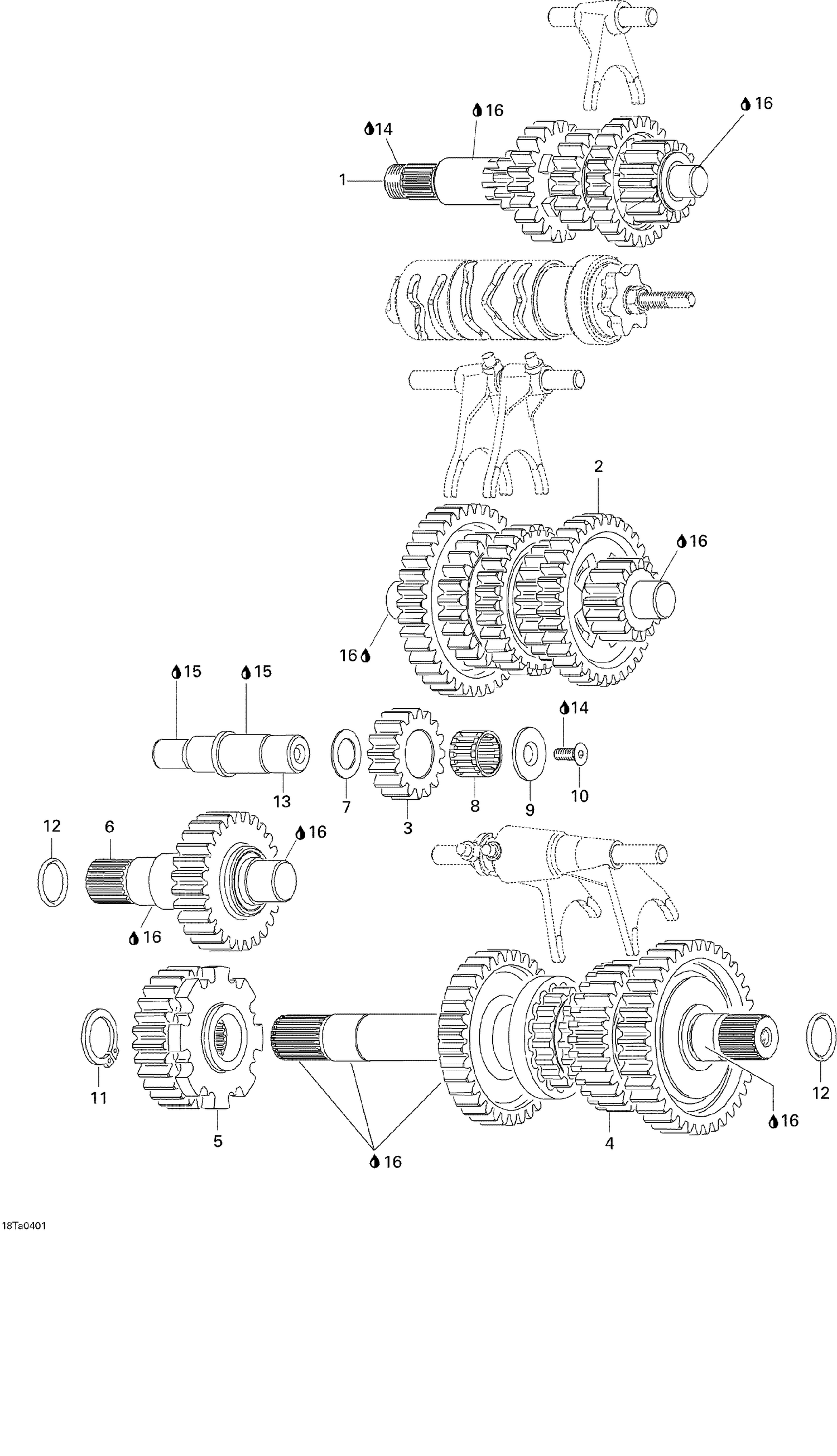

| Ref | Part Number | Description |
|---|
| 1 |
420220487 |
Countershaft |
| 2 |
420220509 |
Main Shaft Ass'y |
| 3 |
420634890 |
Sliding Gear |
| 4 |
420220497 |
Rear Output Shaft |
| 5 |
420634925 |
OUTPUT GEAR 28 TEETH - Call your local BRP dealership |
| 6 |
420220522 |
Front Output Shaft |
| 7 |
420227440 |
THRUST WASHER - Call your local BRP dealership |
| 8 |
420632230 |
NEEDLE CAGE - Call your local BRP dealership |
| 9 |
420244270 |
STOP WASHER - Call your local BRP dealership |
| 10 |
420941436 |
Screw M6 X 20 This part replaces 420941430. |
| 11 |
420945870 |
CIRCLIP - Call your local BRP dealership |
| 12 |
420430373 |
O-Ring This part replaces 420430370. |
| 13 |
Not |
Available As Spare Part - Arbre d'engrenage intermédiaire |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
