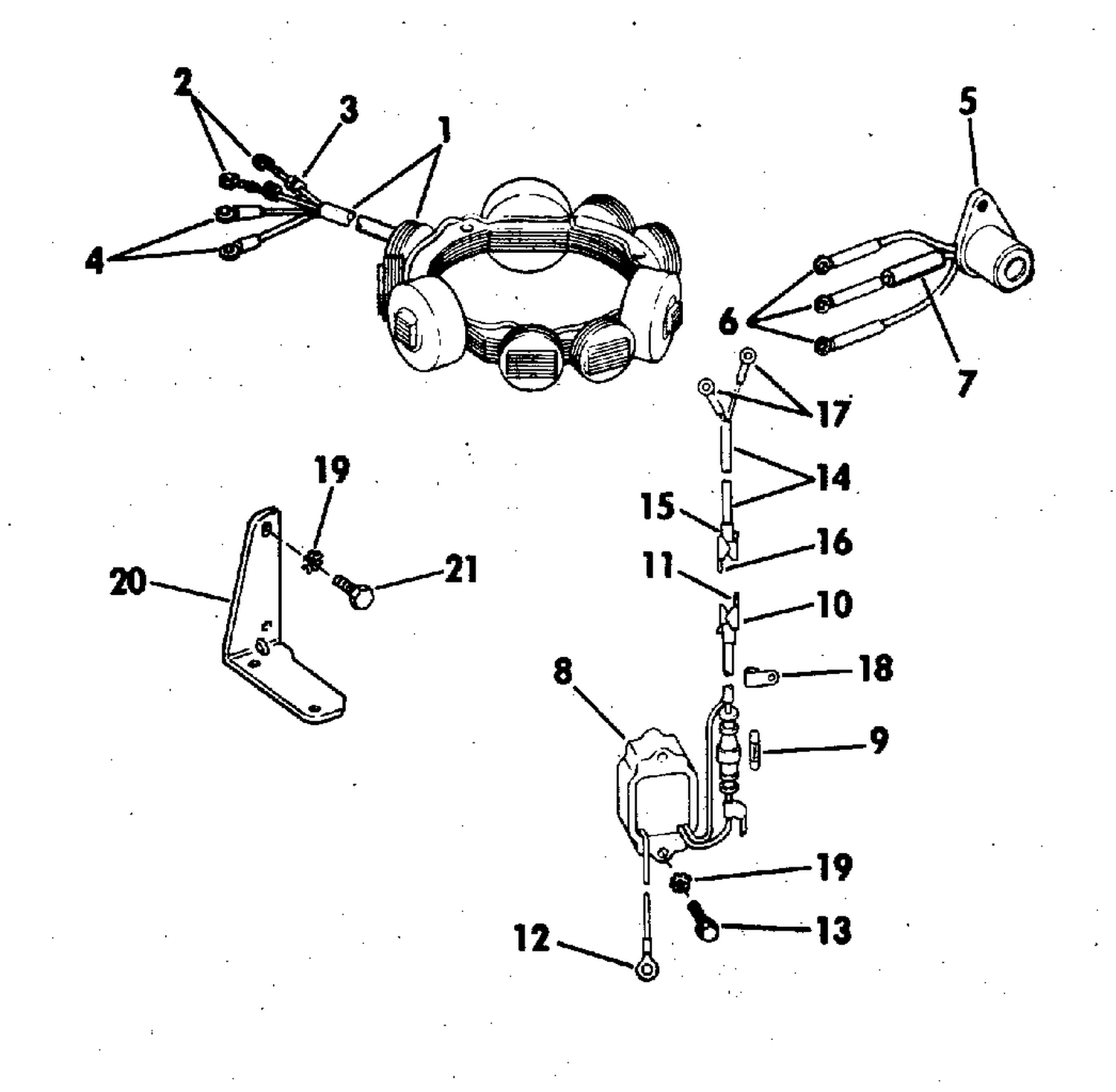

12 AMP ALTERNATOR CONVERSION KIT 55-70 & 75 HP
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0581301 | STATOR ASSY., 12 amp |
| 1 | 0581302 | STATOR ASSY., 12 amp |
| 7 | 0511050 | TUBE, Heat shrink |
| 8 | 0581580 | VOLTAGE REGULATOR |
| 13 | 0306493 | SCREW, Regulator mounting |
| 13 | 0316565 | SCREW ,Box to bracket |
| 14 | 0172761 | LEAD ASSEMBLY |
| 18 | 0330151 | CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 20 | 0123110 | BRACKET, Voltage regulator |
| 0172651 | 0172651 | ALTERNATOR CONVERSION KIT, 12 amp |
| 0173276 | 0173276 | ALTERNATOR CONVERSION KIT, 12 amp |
