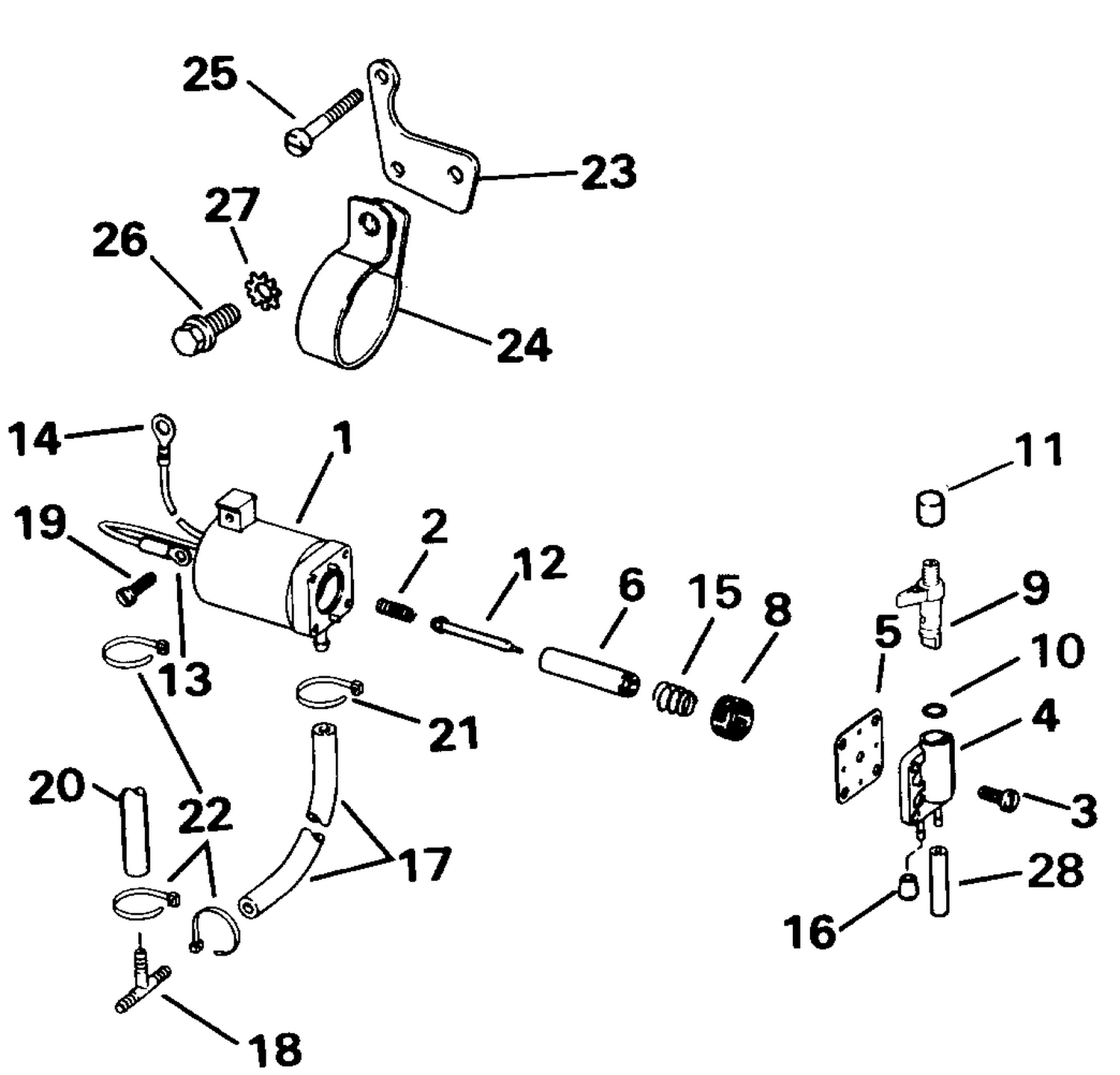

ELECTRIC PRIMER SYSTEM
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5007356 | Kit Ay This part replaces 0434326. |
| 4 | 0511807 | COVER&GASKET AY |
| 5 | 0333448 | GASKET |
| 17 | HOSE, | Tee to primer, 7 1/2 in. (191mm) |
| 19 | 0329182 | VIS, borne |
| 20 | HOSE, | Tee to carb., 1 in. (25mm) |
| 22 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 23 | 0335842 | BRACKET, Solenoid mounting |
| 24 | 0910201 | COLLIER, solénoïde amorçage |
| 25 | 0315287 | SCREW |
| 26 | 0341013 | SCREW, Cover This part replaces 0908668. |
