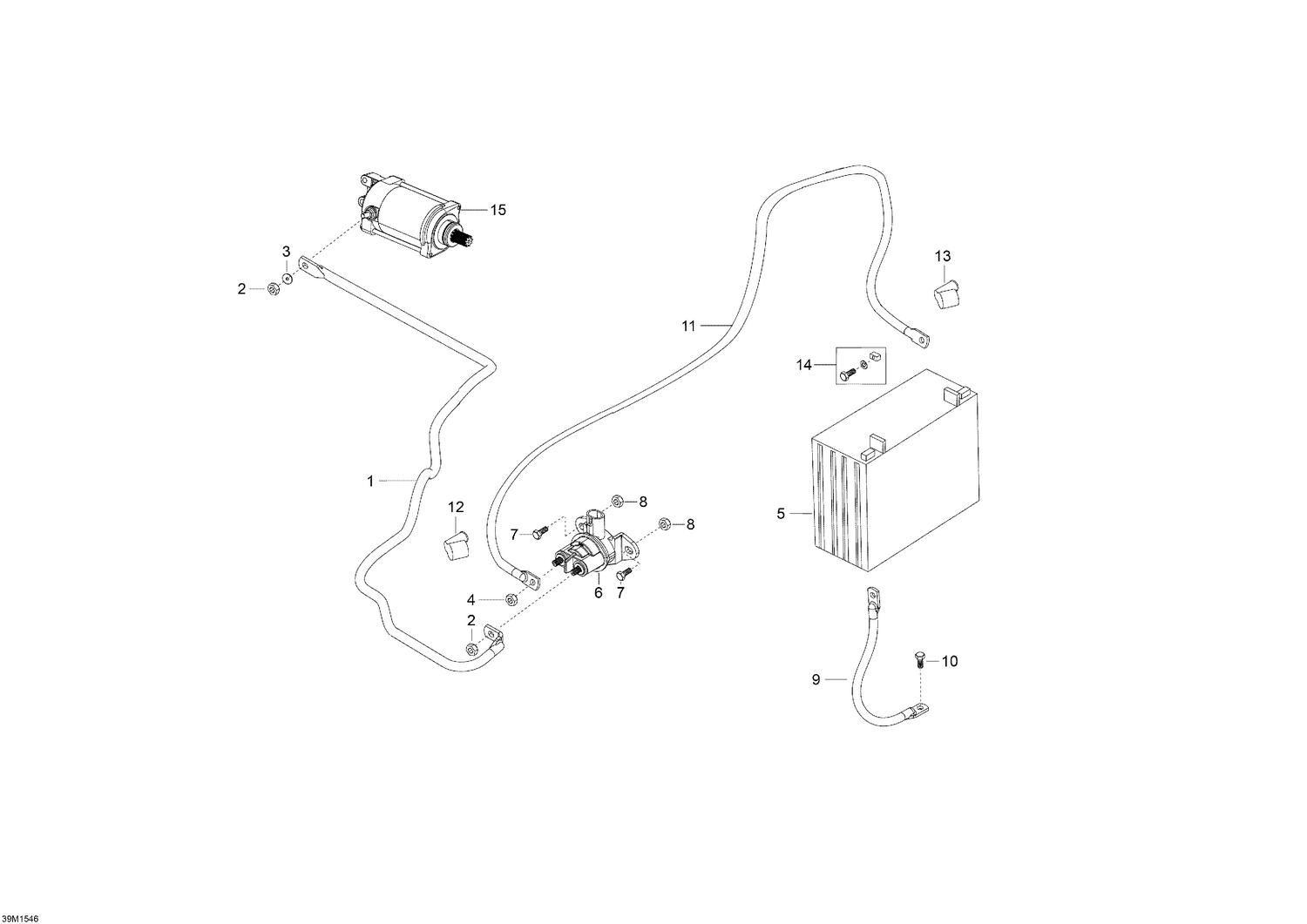

10- Battery And Starter _39M1546
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515177605 | Battery Wire |
| 2 | 232561434 | Elastic Stop Nut M6 |
| 3 | 234061410 | Flat Washer 6 mm |
| 4 | 232561434 | Elastic Stop Nut M6 |
| 5 | 410301203 | Battery YUASA YTX20L |
| 6 | 278003012 | Starter Relay |
| 7 | 207661644 | Hex. Flange Screw M6 X 16 |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 9 | 515176780 | Ground Wire |
| 10 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 11 | 515176967 | BATTERY CABLE - Call your local BRP dealership |
| 12 | 710000495 | Protector Cap |
| 13 | 710000495 | Protector Cap |
| 14 | 250000282 | Battery Bolt Kit |
