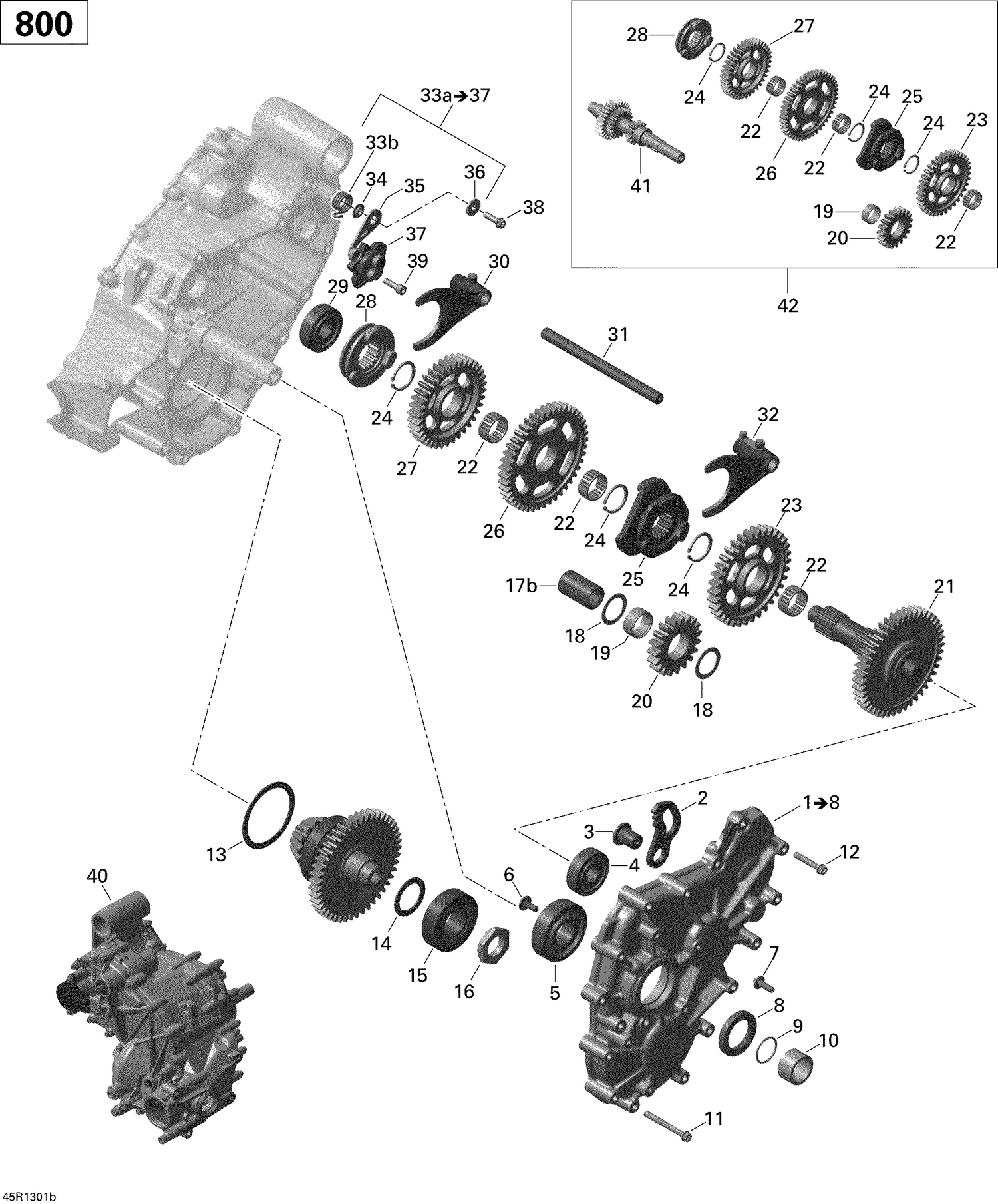

| Ref | Part Number | Description |
|---|
| 2 |
420257659 |
Parking Lock Lever This part replaces 420257658. |
| 3 |
420647123 |
Collar Sleeve This part replaces 420647120. |
| 4 |
420932816 |
Ball Bearing This part replaces 420932815. |
| 5 |
420932822 |
Ball Bearing This part replaces 420932825. |
| 6 |
420241522 |
Torx Screw M6 X 16 This part replaces 420241529. |
| 7 |
420441433 |
Distance Screw M6 This part replaces 420441430. |
| 8 |
420950089 |
Oil Seal This part replaces 420950087. |
| 9 |
420631612 |
O-Ring This part replaces 420631610. |
| 10 |
420247118 |
Distance Ring This part replaces 420247117. |
| 11 |
420440702 |
Torx Flange Screw M6 X 55 |
| 12 |
420641258 |
Torx Flange Screw M6 X 35 |
| 30 |
420657365 |
Shift Fork This part replaces 420257629. |
| 31 |
420258394 |
Pivot This part replaces 420258387. |
| 32 |
420657355 |
Shift Fork Ass'y This part replaces 420257619. |
| 33b |
Not |
Available As Spare Part - Index Spring |
| 34 |
Not |
Available As Spare Part - Step Ring |
| 35 |
Not |
Available As Spare Part - Index Lever |
| 36 |
Not |
Available As Spare Part - Washer |
| 37 |
Not |
Available As Spare Part - Index Washer |
| 38 |
420440207 |
Torx Flange Screw M6 X 20 |
| 39 |
420241939 |
Allen Screw M6 X 20 This part replaces 420241932. |
| 41 |
420637705 |
Countershaft This part replaces 420620896. |
