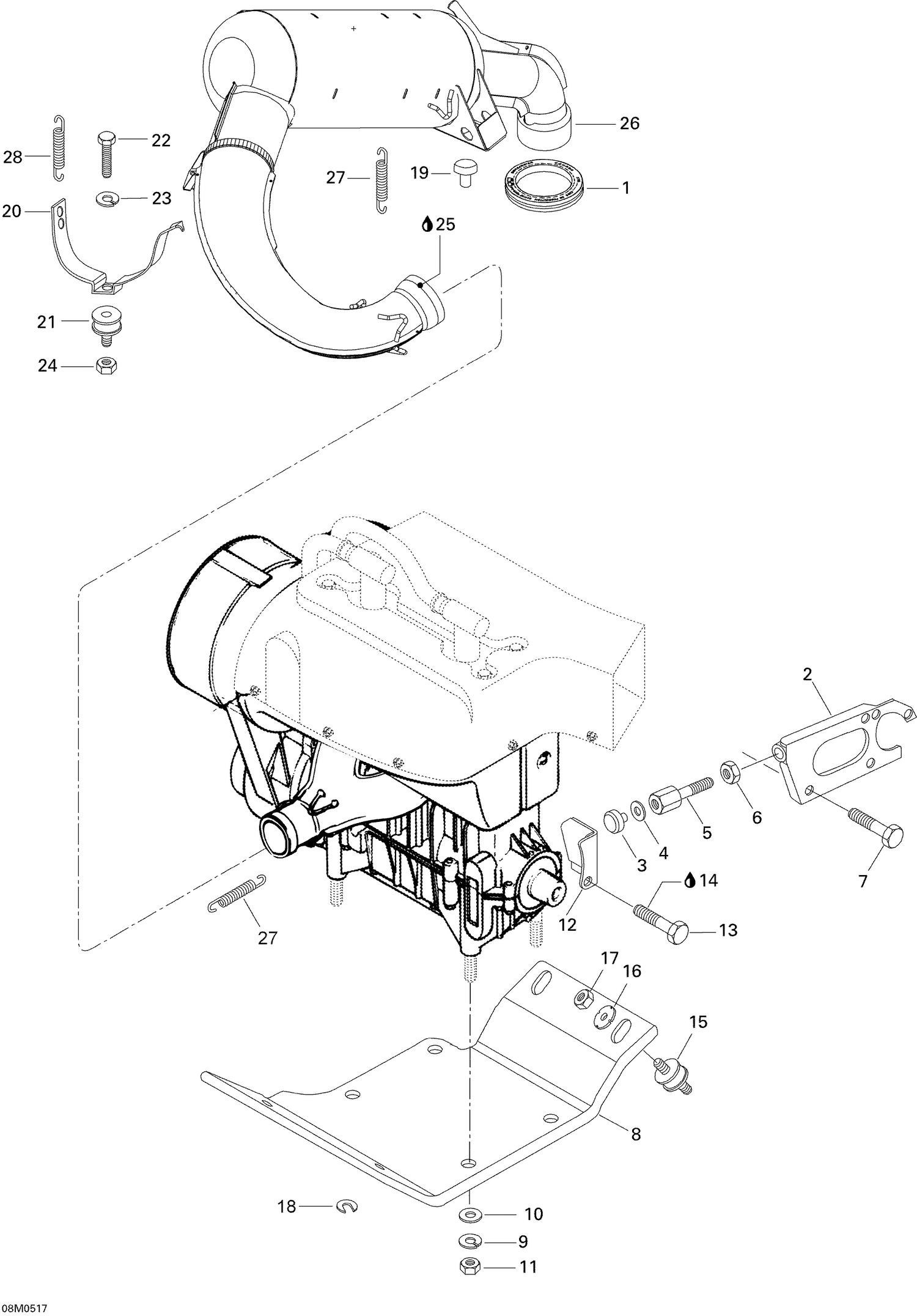

| Ref | Part Number | Description |
|---|
| 1 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
| 2 |
605350127 |
PLATE SUPPORT - Call your local BRP dealership |
| 3 |
512059710 |
STOPPER - Call your local BRP dealership |
| 4 |
M20028 |
Washer |
| 5 |
512058800 |
STOPPER SCREW - Call your local BRP dealership |
| 6 |
M33218 |
Hex. Jam Nut |
| 7 |
M40327 |
SCREW-M6X12 - Call your local BRP dealership |
| 8 |
M5246291 |
SUPPORT-ENGINE - Call your local BRP dealership |
| 9 |
M20047 |
Lock Washer |
| 10 |
20005 |
WASHER M10 - Call your local BRP dealership This part replaces M20105. |
| 11 |
232006414 |
Hex. Nut M10 X 1.5 |
| 12 |
M5344446 |
Welded Stopper Plate |
| 13 |
207181644 |
Hex. Screw M8 x 16 |
| 14 |
293800060 |
Loctite 243, 10 ml |
| 15 |
570128700 |
RUBBER MOUNT - Call your local BRP dealership |
| 16 |
512056700 |
Lock Washer |
| 17 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 18 |
M546221 |
Washer |
| 19 |
570044700 |
Rubber Bumper |
| 20 |
M535108 |
Support |
| 21 |
M28245 |
Rubber Bumper |
| 22 |
M40034 |
Screw |
| 23 |
234181401 |
Lock Washer 8 mm |
| 24 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 25 |
293800090 |
Sealant, Loctite, 80 ml |
| 26 |
420979823 |
Muffler_Exhaust - Call your local BRP dealership |
| 27 |
420938796 |
Spring This part replaces 420938795. |
