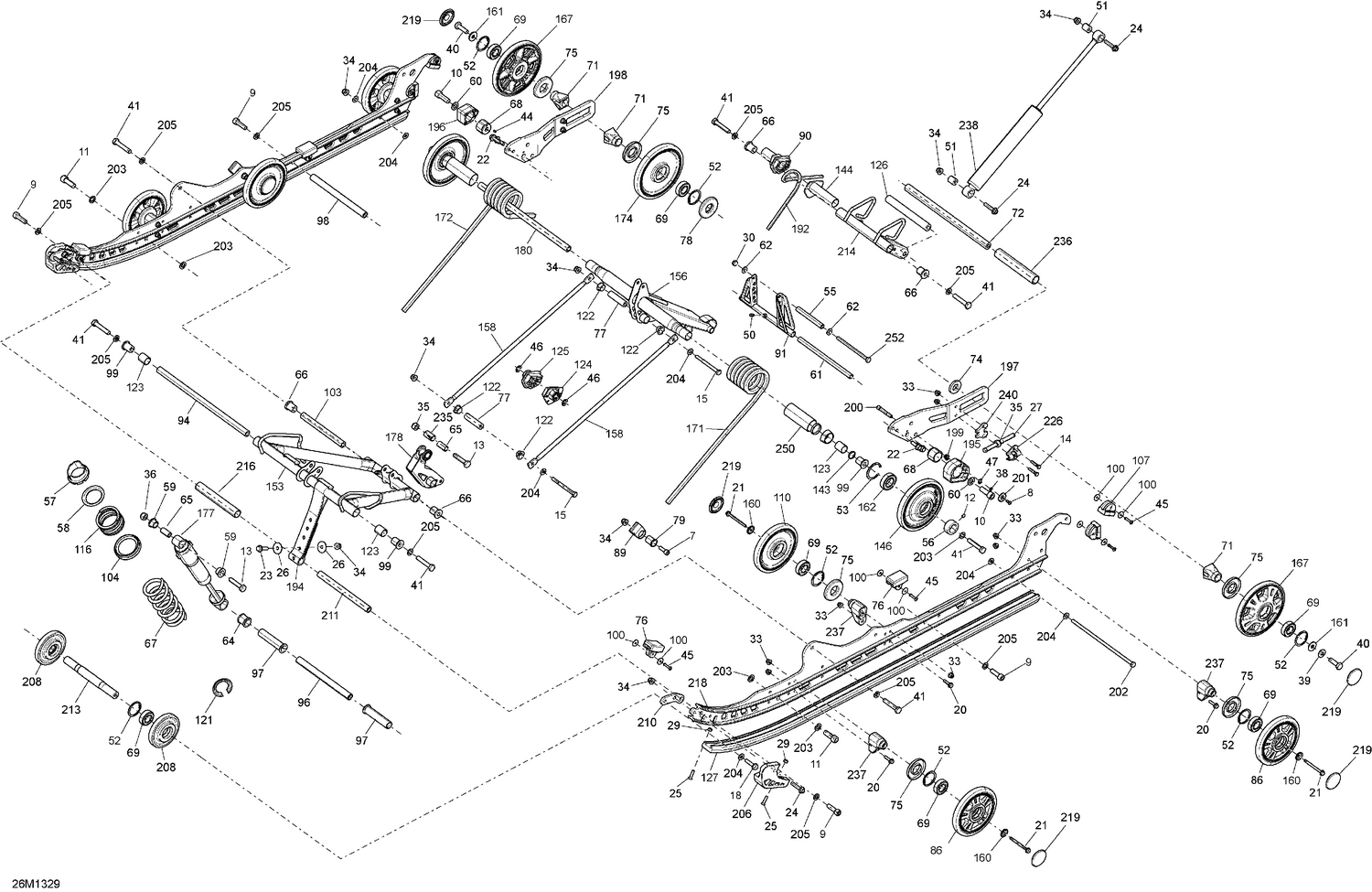

| Ref | Part Number | Description |
|---|
| 7 |
205082554 |
Socket Screw M8 X 25 |
| 8 |
250000742 |
Torx Screw M5 X 14 This part replaces 250000145. |
| 9 |
205503554 |
Socket Head Screw M10 X 35 |
| 10 |
205523544 |
Socket Head Screw M12 X 35, Scotch Grip |
| 11 |
205523554 |
Socket Head Screw M12 X 35 |
| 12 |
206260844 |
Socket Set Screw M6 X 8 |
| 13 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 14 |
207063054 |
Hex. Cap Screw M6 X 30 |
| 15 |
207089044 |
Hex. Screw M8 X 90 |
| 20 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 21 |
207667056 |
Hex. Flange Screw M6 X 70 |
| 22 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 23 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 24 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 25 |
208562531 |
Phillips Screw M6 X 25 |
| 26 |
250200128 |
Flat Washer 8 mm |
| 27 |
230100054 |
Hex Screw M10 x 100 |
| 29 |
232561414 |
Elastic Stop Nut M6 |
| 30 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 33 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 34 |
233281466 |
Elastic Flange Nut M8 |
| 35 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 36 |
233601466 |
Elastic Locking Nut M10 |
| 38 |
234051410 |
Flat Washer M5 |
| 39 |
234201474 |
Conical Spring Washer 10 mm |
| 40 |
250000592 |
Hex Cap Screw Nylon M10 x 35 |
| 41 |
250000605 |
Hex. Screw S.Grip M10 X 55 |
| 44 |
250400005 |
Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership |
| 45 |
293150142 |
Pop Rivet 3/16" |
| 46 |
293370013 |
E-Circlip |
| 47 |
293370068 |
Circlip |
| 50 |
408200700 |
Grease Fitting |
| 51 |
414936000 |
Bushing |
| 52 |
415129371 |
Retaining Ring |
| 53 |
415129780 |
Retaining Ring |
| 55 |
503144300 |
Upper Axle, Pivot Arm |
| 56 |
503168800 |
Retaining Ring |
| 57 |
505073625 |
Adjustment Cam This part replaces 505070150. |
| 58 |
503191872 |
Spring Guide |
| 59 |
503189117 |
Urethane Bushing |
| 60 |
503189148 |
Washer |
| 61 |
503189156 |
Pivot Arm Axle |
| 62 |
503189157 |
Washer |
| 64 |
503189271 |
Bushing |
| 65 |
503189282 |
Bushing |
| 66 |
503189324 |
Bushing |
| 67 |
503192279 |
Black, Spring |
| 68 |
503189488 |
Block Guide |
| 69 |
503190396 |
Ball Bearing |
| 71 |
503190428 |
Rear Wheel Spacer |
| 72 |
503190429 |
Rear Axle |
| 74 |
503190432 |
Washer |
| 75 |
503190434 |
Labyrinth Seal |
| 76 |
503190576 |
Rubber Stopper |
| 77 |
503190643 |
Axle Bar (Long) |
| 78 |
503190682 |
Labyrinth Seal |
| 79 |
861805547 |
Spring Support Kit This part replaces 503190754. |
| 86 |
503191152 |
Black, Wheel Ass'y 147 mm |
| 89 |
861805547 |
Spring Support Kit This part replaces 503191183. |
| 90 |
503191190 |
RH Spring Cam |
| 91 |
503191209 |
Pivot Arm |
| 94 |
503191215 |
Upper Shaft |
| 96 |
503189272 |
CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258. |
| 97 |
503191259 |
Center Bushing |
| 98 |
503191260 |
Axle Strap |
| 99 |
503191262 |
Bushing |
| 100 |
503191273 |
Washer |
| 103 |
503191279 |
Lower Shaft |
| 104 |
503191281 |
Spring Spacer |
| 107 |
503191291 |
Rubber Stopper |
| 110 |
503191311 |
Black, Wheel Ass'y 147 mm |
| 116 |
503191343 |
Black, Spring |
| 121 |
503194270 |
Spring Stopper This part replaces 503192029. |
| 122 |
503191555 |
Swivel Bushing |
| 123 |
503191556 |
Extended Bushing |
| 124 |
503191565 |
LH Cam Adjuster |
| 125 |
503191566 |
RH Cam Adjuster |
| 126 |
503191608 |
Cam Axle |
| 127 |
503192618 |
Black Slider, 154" |
| 143 |
503191651 |
Washer |
| 144 |
503191668 |
LH Spring Cam |
| 146 |
503191738 |
Black, Wheel Ass'y 155 mm |
| 153 |
503191752 |
Front Arm |
| 156 |
503191762 |
Rear Arm |
| 158 |
503191765 |
Link Rod |
| 160 |
503191820 |
Wheel Cup M6 |
| 161 |
503191910 |
Washer |
| 162 |
503193548 |
Ball Bearing This part replaces 503191982. |
| 167 |
503192128 |
Deep Black, Wheel Ass'y, 165 mm |
| 171 |
503193158 |
Black, LH Spring Square This part replaces 503192136. |
| 172 |
503193159 |
Black, RH Spring Square This part replaces 503192137. |
| 174 |
503192140 |
Black, Wheel Ass'y, 165 mm |
| 177 |
503192991 |
Center Shock |
| 178 |
503192211 |
Rocker |
| 180 |
503191215 |
Upper Shaft |
| 192 |
503194624 |
Spring This part replaces 503192282. |
| 194 |
503192360 |
Stopper Strap |
| 195 |
503192426 |
LH Block |
| 196 |
503192427 |
RH Block |
| 199 |
503192436 |
Compression Spring |
| 200 |
503192437 |
Rode |
| 201 |
503192438 |
Handle |
| 202 |
503192440 |
Bolt M8 X 248mm |
| 203 |
503192491 |
Washer |
| 204 |
503192494 |
Washer |
| 205 |
503192496 |
Washer |
| 206 |
503192609 |
LH Protector |
| 206 |
503192610 |
RH Protector |
| 208 |
503192611 |
Black, Wheel Ass'y, 100 mm |
| 210 |
503192612 |
Plate |
| 211 |
503192613 |
Axle Strap |
| 213 |
503192644 |
Front Wheel Axle |
| 214 |
503192647 |
Runner Pivot |
| 216 |
503196943 |
Spacer This part replaces 503192678. |
| 218 |
503193397 |
Runner |
| 219 |
503192771 |
Black, Wheel Cap |
| 226 |
503192583 |
Tensioner This part replaces 503192814. |
| 235 |
503193037 |
Bushing |
| 236 |
503193052 |
Spacer |
| 237 |
503193894 |
Casted Support This part replaces 503193082. |
| 238 |
503193192 |
Rear Shock HPG SEAL |
| 240 |
503193250 |
Spacer |
| 250 |
572080700 |
Bushing |
