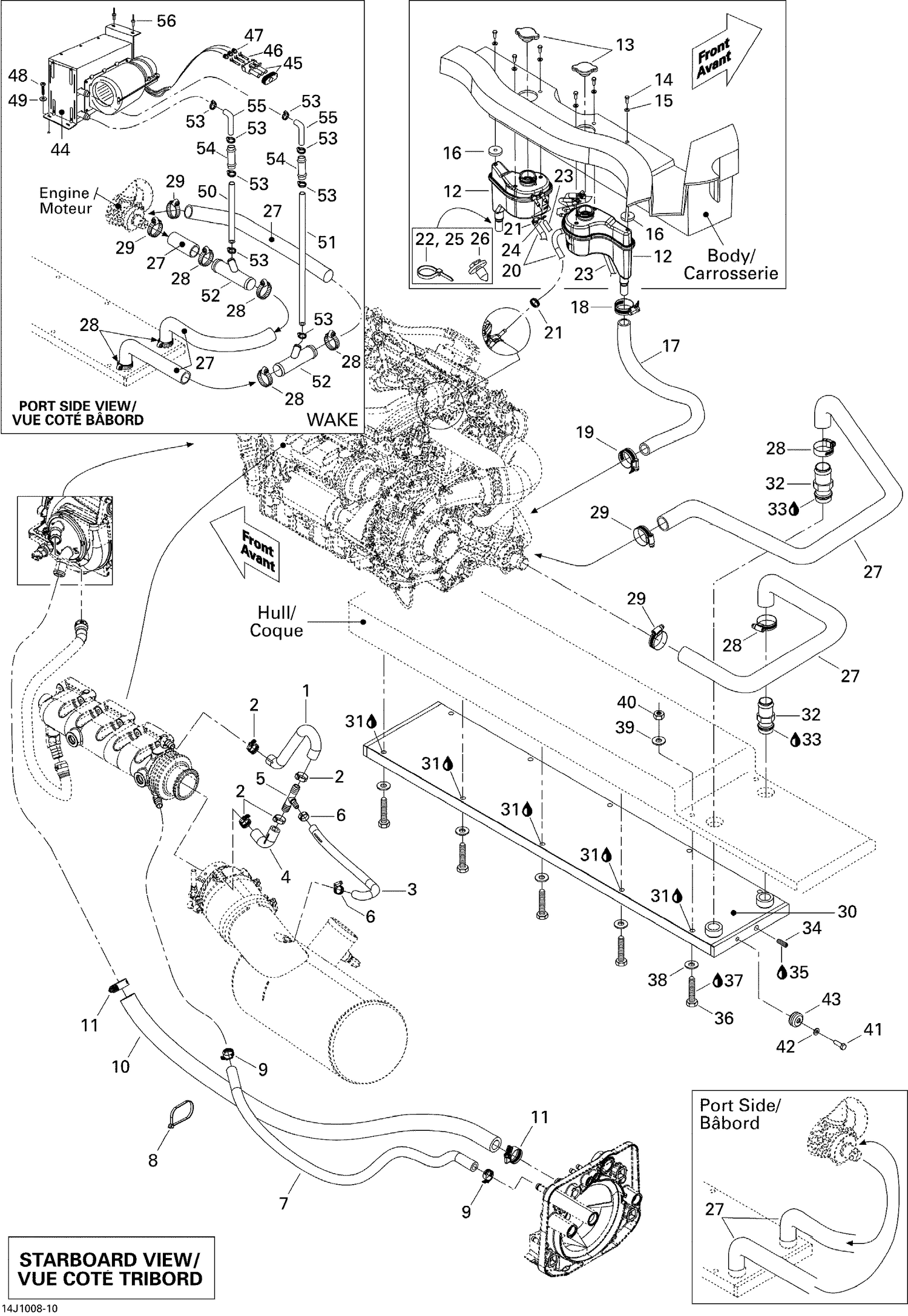

| Ref | Part Number | Description |
|---|
| 1 |
276000484 |
Hose, Bypass Upper This part replaces 276000244. |
| 2 |
293650172 |
Tridon Gear Clamp |
| 3 |
276000246 |
Formed Hose |
| 4 |
276000455 |
Hose, Bypass Lower This part replaces 276000245. |
| 5 |
293710116 |
T-Fitting |
| 6 |
293650171 |
Tridon Gear Clamp |
| 7 |
219704394 |
Was 276000001 Hose 12.5 mm |
| 8 |
293750008 |
Tie Wrap 368 mm |
| 9 |
293650172 |
Tridon Gear Clamp |
| 10 |
219704361 |
Hose 19.0Mm. 2000Mm Long |
| 11 |
293650051 |
Tridon Gear Clamp |
| 12 |
276000265 |
Coolant Tank |
| 13 |
276000100 |
Pressure Cap |
| 14 |
205062560 |
Socket Head Screw M6 X 25 |
| 15 |
234062600 |
Flat Washer M6, Stainless |
| 16 |
705202084 |
SPACER - Call your local BRP dealership |
| 17 |
219704361 |
Hose 19.0Mm. 2000Mm Long |
| 18 |
293650051 |
Tridon Gear Clamp |
| 19 |
293650019 |
Tridon Gear Clamp |
| 20 |
219704357 |
Was 275500549 Hose 1/4" |
| 21 |
293650025 |
Oetiker Gear Clamp |
| 22 |
293750002 |
Tie Wrap 142 mm |
| 23 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 24 |
293750001 |
Tie Wrap 94 mm |
| 25 |
293750002 |
Tie Wrap 142 mm |
| 26 |
293730040 |
Mount Dart |
| 27 |
204061380 |
RUBBER HOSE, PORT - Call your local BRP dealership |
| 28 |
293650045 |
Tridon Gear Clamp |
| 29 |
293650045 |
Tridon Gear Clamp |
| 30 |
204300255 |
HEAT EXCHANGER - Call your local BRP dealership |
| 31 |
219701421 |
Instant Gasket |
| 32 |
204300133 |
Hose Fitting - Call your local BRP dealership |
| 34 |
211500001 |
Pipe Plug Socket Head 1/8-27 Npt |
| 35 |
219704454 |
Was 293800013 Loctite 56765 |
| 36 |
205405060 |
SOCKET HEAD SCREW M10 X 50 - Call your local BRP dealership |
| 37 |
293800060 |
Loctite 243, 10 ml |
| 38 |
234000600 |
Flat Washer 10 mm, Stainless |
| 39 |
234002600 |
Flat Washer 10 mm, Stainless |
| 40 |
232001600 |
HEX. NUT M10 - Call your local BRP dealership |
| 41 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 42 |
234061600 |
Stainless Flat Washer M6 |
| 43 |
271001813 |
Anode Zinc This part replaces 271001487. |
| 44 |
204300198 |
HEATER UNIT - Call your local BRP dealership |
| 45 |
278000273 |
Male Housing, 3 Circuits |
| 46 |
278000223 |
Female Terminal |
| 47 |
278000218 |
Wire Seal |
| 48 |
211000021 |
PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership |
| 49 |
234052600 |
Flat Washer 5 mm, Stainless |
| 50 |
204300204 |
HOSE 16 MM - Call your local BRP dealership |
| 51 |
204300204 |
HOSE 16 MM - Call your local BRP dealership |
| 52 |
204130174 |
Y-Fitting |
| 53 |
293650045 |
Tridon Gear Clamp |
| 54 |
276000271 |
STRAIGHT FITTING, 5/8'' X 5/8'' - Call your local BRP dealership |
| 55 |
204300204 |
HOSE 16 MM - Call your local BRP dealership |
