Parts Catalog

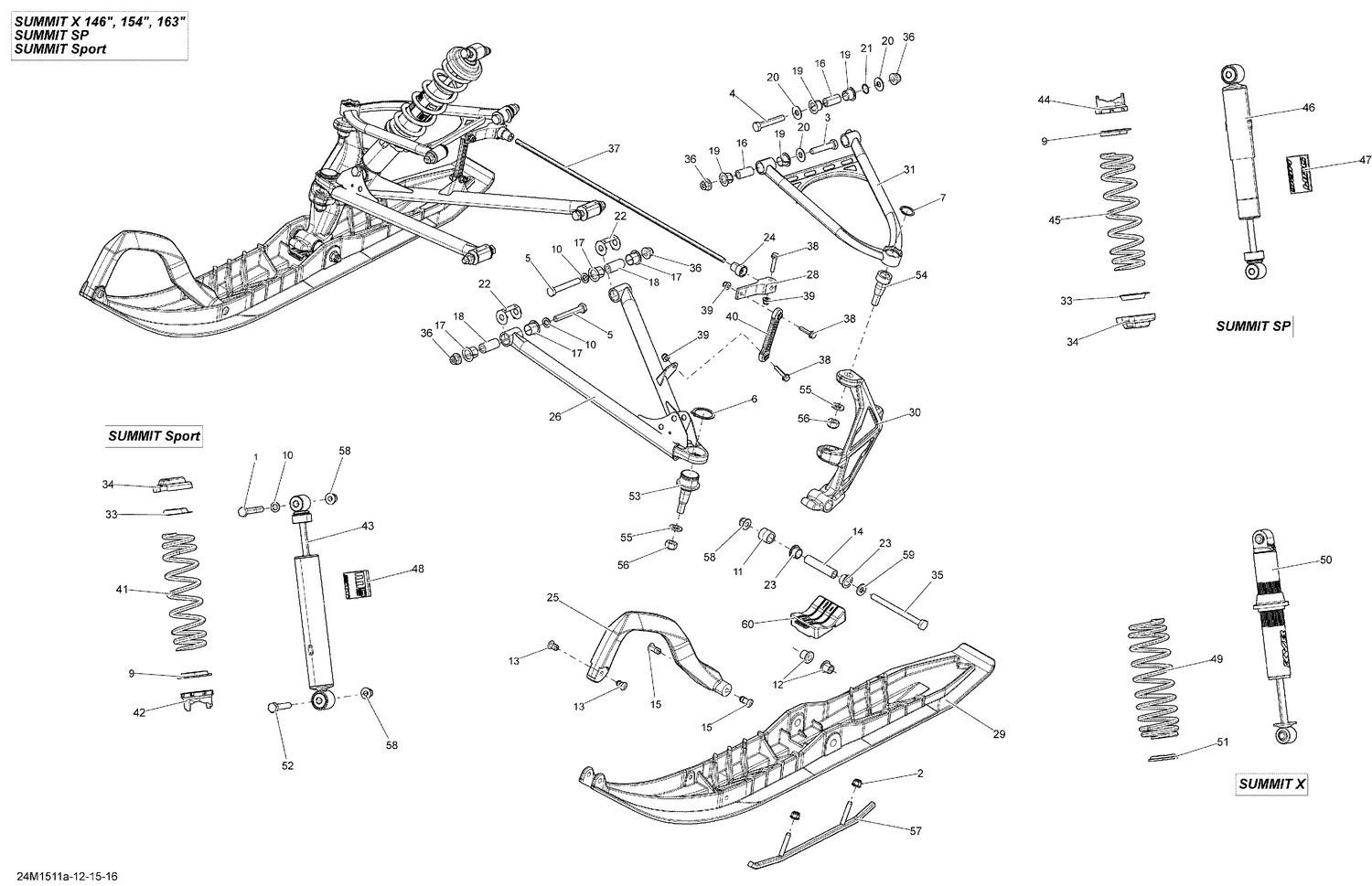

07- Front Suspension And Ski 600HOETEC_24M1512

Parts (56)

Ref	Part Number	Description
1	207006544	Hex. Screw M10 X 1.5 X 65
2	233281414	Hex. Flange Elastic Nut M8
3	250001022	Screw Hex. M10 X 50 This part replaces 250000289.
4	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
5	250001024	Screw Hex. M10 X 70 This part replaces 250000291.
6	293370035	Circlip
7	293370070	Circlip
9	503187500	Spring Guide
10	503189564	Washer
11	503193651	Spacer
12	505071781	Ski Bushing
13	505071812	Retainer 17mm long
14	506133300	Spacer
15	505072133	Retainer 23mm Long
16	505072143	Sleeve
17	505072208	Bushing
18	505072209	Sleeve
19	505072250	Bushing
20	505072392	Washer
21	505072448	O-Ring
22	505072634	Wear Plate
23	505072690	Leg Bushing
24	505072786	Bushing
26	505073039	Black, LH Lower Arm
26	505073040	Black, Lower Arm RH
28	505073176	Stabilisator Lever
29	505073227	Black, Ski
31	505073466	Black Upper Arm LH 36"
31	505073467	Black Upper Arm RH 36"
33	706200785	Cap
34	706200881	Spring Stopper
35	250000703	Hex. Screw M10 X 130
36	250100165	Hex. Flange Elastic Nut M10
37	505073609	Stabilisator
38	207663056	Hex. Flange Screw M6 X 1.0 X 30
39	233261466	Hex. Flange Elastic Nut M6
40	505073172	Double Ball Joint Link
41	XXX	Not Available As Spare Parts
42	XXX	Not Available As Spare Parts
43	XXX	Not Available As Spare Parts
44	505073625	Adjustment Cam
45	505072792	Black Spring
46	505073236	Front Shock HPG
47	516005533	Shock Decal "HPG"
48	XXX	Not Available As Spare Parts
49	XXX	Not Available As Spare Parts
50	XXX	Not Available As Spare Parts
51	XXX	Not Available As Spare Parts
52	207005554	Hex Screw M10 X 1.5 X 55
53	505073636	Ball Joint This part replaces 505072682.
54	505072913	Upper Ball Joint
55	503192491	Washer
56	232521464	Hex Elastic Nut M12 X 1.25
57	860201044	Carbide Runner Kit (Square Runner)
58	233201414	Hex. Flange Elastic Nut M10
59	732900049	Washer
