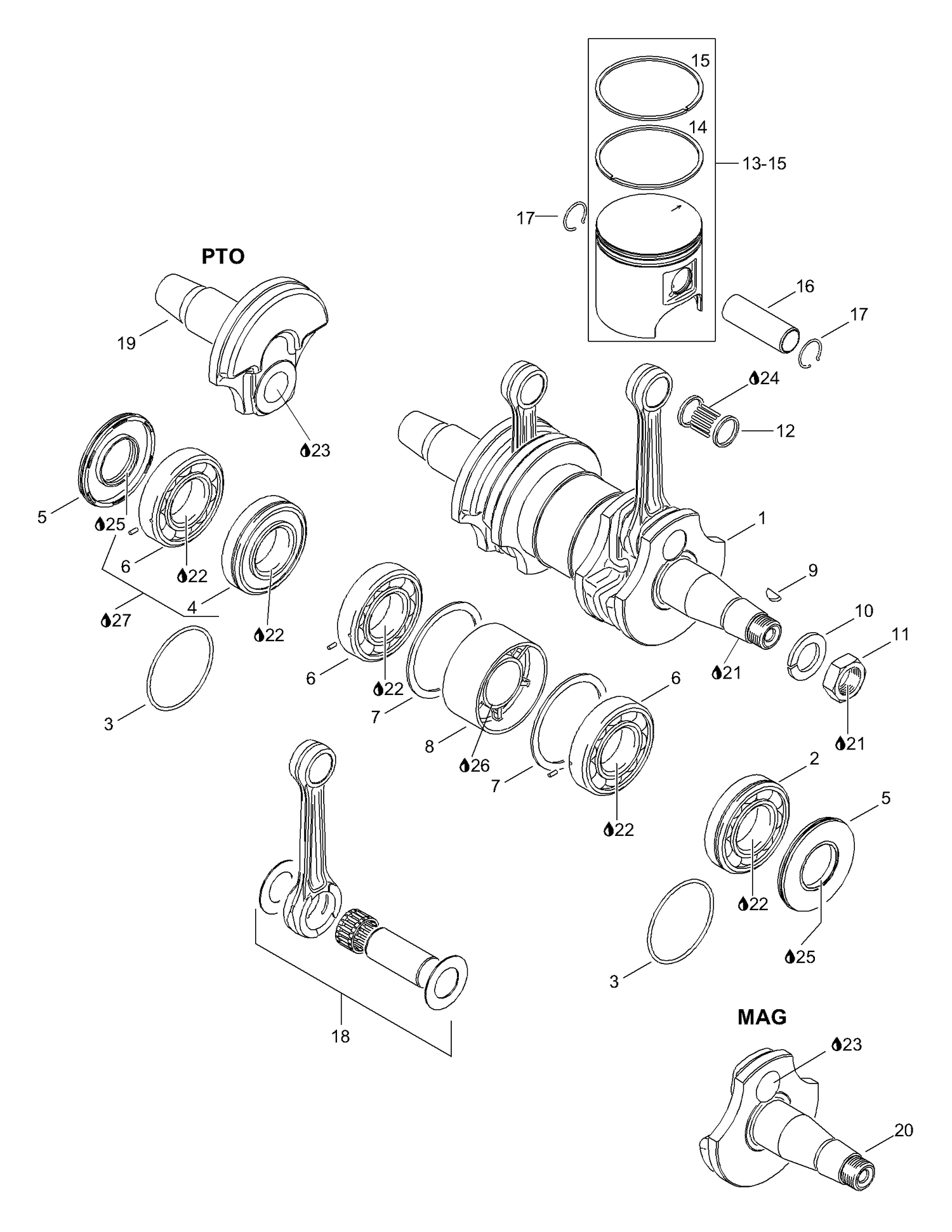

01- Crankshaft Assy
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420832571 | Ball bearing 6207 |
| 3 | 293300022 | O-Ring, 64 mm X 2 mm This part replaces 420250165. |
| 4 | 420832632 | Ball Bearing This part replaces 420832637. |
| 5 | 420831952 | Oil Seal This part replaces 420831950. |
| 6 | 420929972 | Drive pin |
| 7 | 420927710 | Retaining disk |
| 8 | 420850149 | Labyrinth sleeve |
| 9 | 420246055 | Woodruff key |
| 10 | 420945759 | Lock washer |
| 11 | 420842239 | Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 12 | 420832420 | NEEDLE BEARING - Call your local BRP dealership |
| 14 | 420815300 | Piston ring 76.00 mm |
| 14 | 420815301 | Piston ring 76.25 mm |
| 14 | 420815302 | Piston ring 76.50 mm |
| 15 | 420815155 | Retangular ring This part replaces 420815150. |
| 15 | 420815156 | Retangular ring This part replaces 420815151. |
| 15 | 420815157 | Semi-Trapez Ring, 2nd This part replaces 420815152. |
| 16 | 420916407 | Piston Pin This part replaces 420916405. |
| 17 | 420845106 | Piston Circlip |
| 18 | 420889064 | Crankshaft repair kit |
| 19 | 420819180 | Crankshaft P.T.O.-side |
| 20 | 420819213 | Crankshaft, MAG Side This part replaces 420819210. |
| 21 | 293800060 | Loctite 243, 10 ml This part replaces 420899785. |
| 22 | 420297434 | Loctite anti seize |
| 23 | 420897341 | Loctite 14486, 10cc |
| 25 | 420899271 | Klueber petamo |
| 26 | 779119 | NEEDS DESCRIPTION This part replaces 413802900. |
