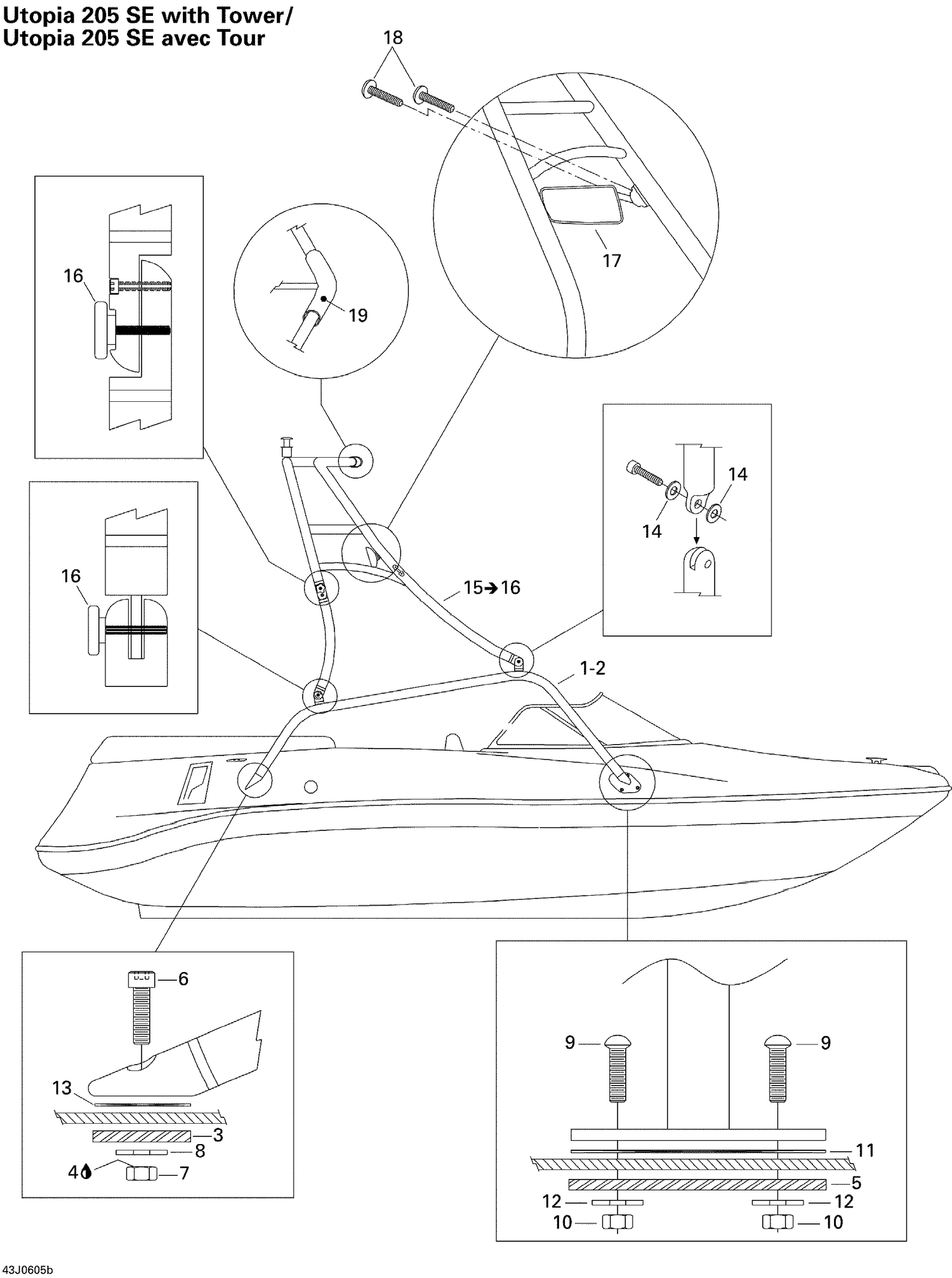

| Ref | Part Number | Description |
|---|
| 1 |
204072226 |
RH Tower Rail |
| 2 |
204072227 |
LH Tower Rail |
| 3 |
204072271 |
Tower Insert |
| 4 |
293800060 |
Loctite 243, 10 ml |
| 5 |
204072228 |
TOWER INSERT, FRONT - Call your local BRP dealership |
| 6 |
204100092 |
SOCKET HEAD SCREW 5/8? X 2-1/2? - Call your local BRP dealership |
| 7 |
204100093 |
LOCK NUT 5/8 - Call your local BRP dealership |
| 8 |
204071423 |
WASHER - Call your local BRP dealership |
| 9 |
204100151 |
SCREW-CTSK.OV.HD. 1/4-20 X 2 - Call your local BRP dealership |
| 10 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 11 |
204130106 |
Front Gasket |
| 12 |
204100157 |
Flat Washer 1/4", Stainless |
| 13 |
204130010 |
GASKET, REAR - Call your local BRP dealership |
| 14 |
204100158 |
Washer, Nylon |
| 16 |
204071433 |
Fluted Knob |
| 17 |
295100386 |
SKI MIRROR - Call your local BRP dealership This part replaces 204071420. |
| 18 |
204100129 |
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership |
