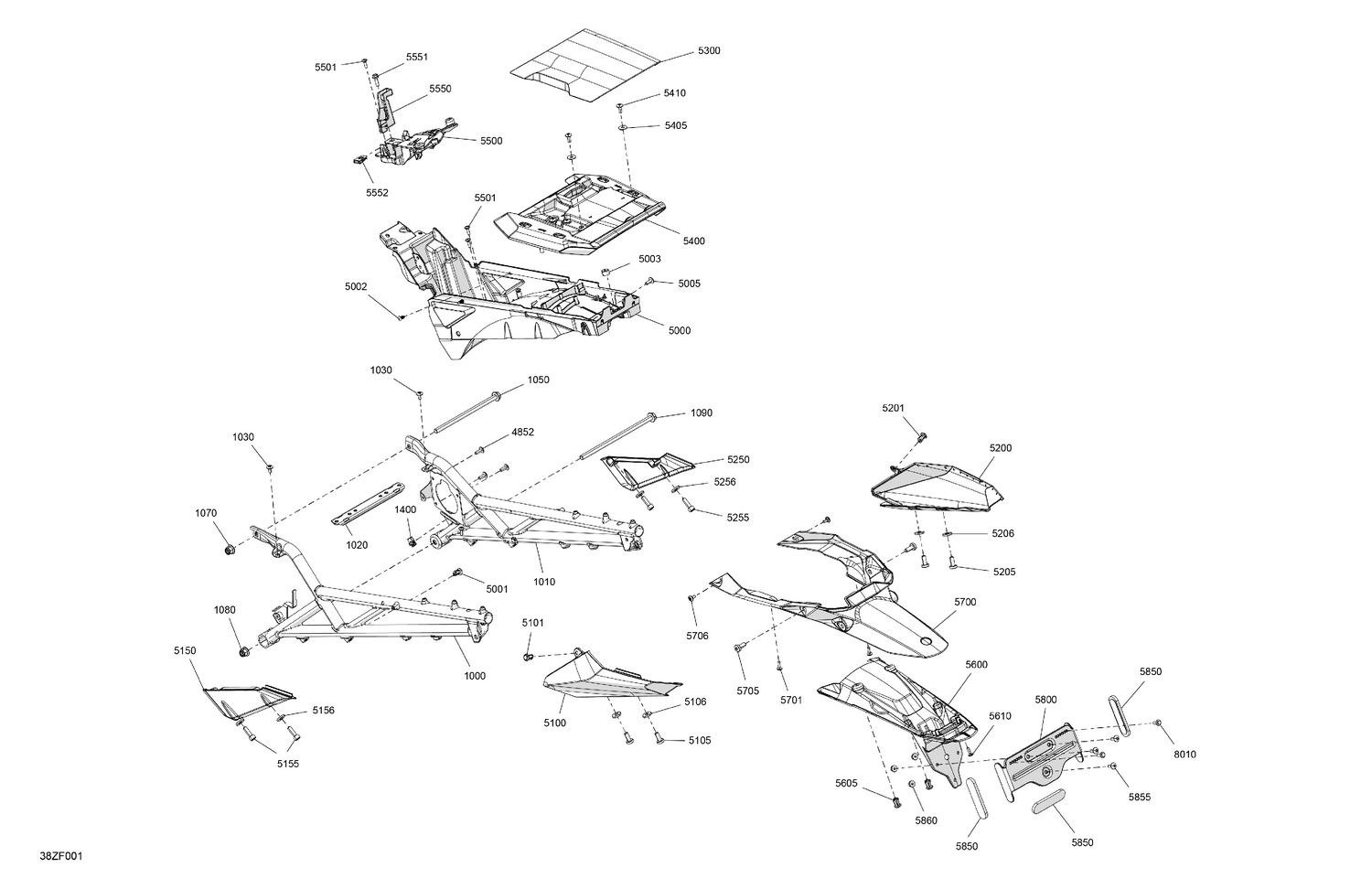

| Ref | Part Number | Description |
|---|
| 1000 |
705211702 |
LH Rear Chassis Extension |
| 1010 |
705211705 |
RH Rear Chassis Extension |
| 1020 |
705211901 |
Front Upper Cross Member |
| 1030 |
250000767 |
Torx Truss Screw M6 X 12 |
| 1050 |
250001334 |
Geoblack, Hex. Flange Screw M10 X 185 |
| 1070 |
250100246 |
Hex. Flange Elastic Nut M10 |
| 1080 |
250100246 |
Hex. Flange Elastic Nut M10 |
| 1090 |
250001335 |
Geoblack, Hex. Flange Screw M10 X 215 |
| 1400 |
250100209 |
Spring Nut U M5 X 0.8 |
| 4852 |
250000717 |
Torx Head Screw M6 X 16 |
| 5000 |
705017445 |
Under Fender Trim |
| 5001 |
293150230 |
Tuflok Plastic Rivet |
| 5002 |
293730062 |
Dart |
| 5003 |
291001203 |
Spacer |
| 5005 |
250000717 |
Torx Head Screw M6 X 16 |
| 5100 |
705019077 |
Deep Black, LH Rear Fairing |
| 5101 |
293150230 |
Tuflok Plastic Rivet |
| 5105 |
250000740 |
Torx Screw M8 X 20, Scotch Grip |
| 5106 |
250200208 |
Flat Washer M8 |
| 5150 |
705019948 |
LH Rear Bottom Fairing |
| 5155 |
250000740 |
Torx Screw M8 X 20, Scotch Grip |
| 5156 |
250200208 |
Flat Washer M8 |
| 5200 |
705019078 |
Deep Black, RH Rear Fairing |
| 5201 |
293150230 |
Tuflok Plastic Rivet |
| 5205 |
250000740 |
Torx Screw M8 X 20, Scotch Grip |
| 5206 |
250200208 |
Flat Washer M8 |
| 5250 |
705019949 |
LH Rear Bottom Fairing |
| 5255 |
250000740 |
Torx Screw M8 X 20, Scotch Grip |
| 5256 |
250200208 |
Flat Washer M8 |
| 5300 |
705018370 |
Sterling Silver Satin, Rear Upper Fairing |
| 5400 |
705017857 |
Accessory Support |
| 5405 |
234062670 |
Stainless Steel Flat Washer |
| 5410 |
250000717 |
Torx Head Screw M6 X 16 |
| 5500 |
705019983 |
Battery Support |
| 5501 |
250000720 |
Torx Screw K50 X 16 |
| 5550 |
705018486 |
Battery Lock |
| 5551 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 5552 |
250100208 |
Panel Nut M6 X 1.0 |
| 5600 |
705209266 |
Rear Bottom Fender |
| 5605 |
293150230 |
Tuflok Plastic Rivet |
| 5610 |
250000720 |
Torx Screw K50 X 16 |
| 5700 |
705211595 |
Rear Top Fender |
| 5701 |
250000720 |
Torx Screw K50 X 16 |
| 5705 |
250000740 |
Torx Screw M8 X 20, Scotch Grip |
| 5706 |
250001308 |
Torx Screw M5 X 12 |
| 5800 |
705209835 |
License Plate Support |
| 5850 |
705015551 |
Red, Reflector |
| 5855 |
250000717 |
Torx Head Screw M6 X 16 |
| 5860 |
233161464 |
Hex. Elastic Flange Nut M6 |
