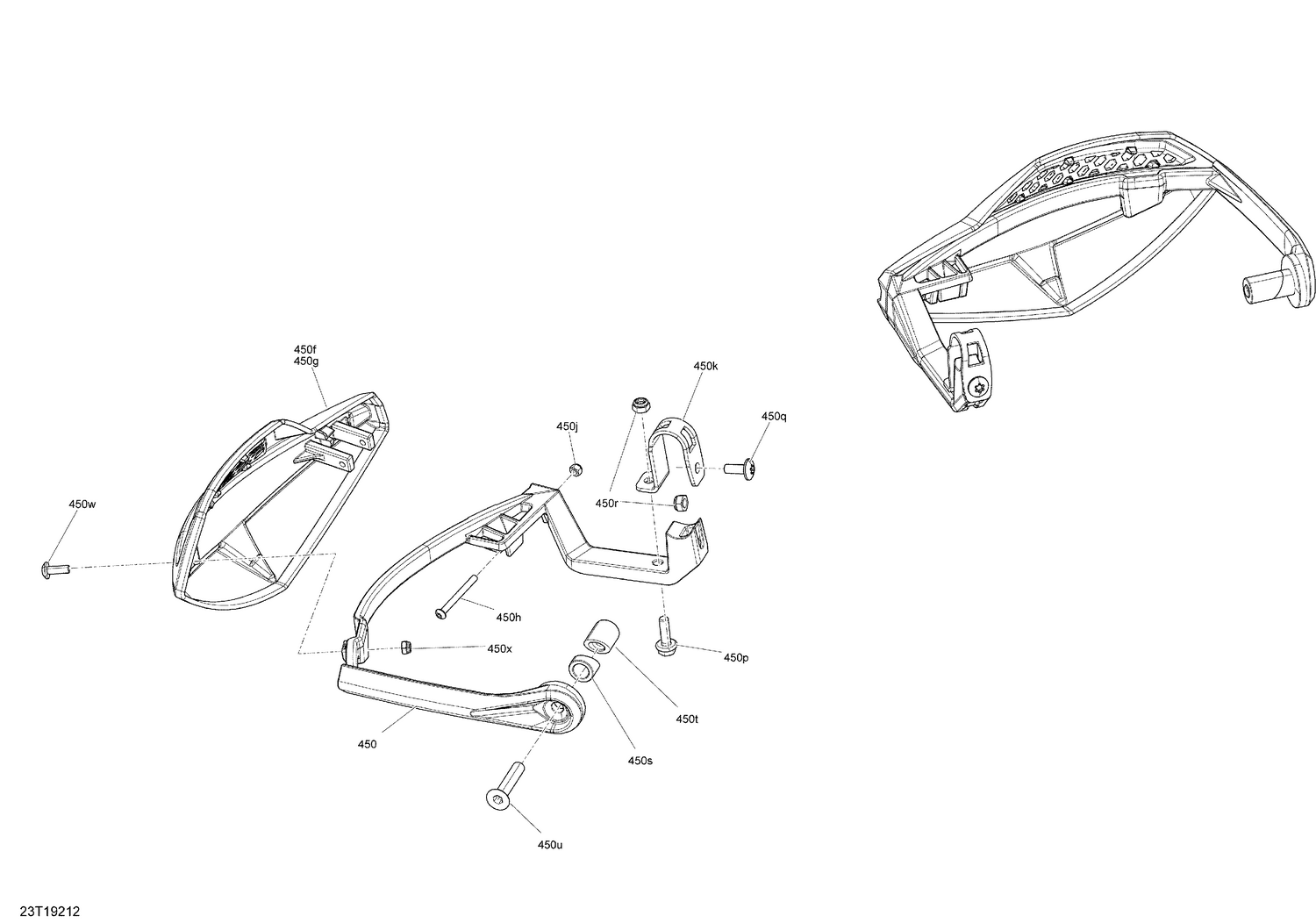

07- Steering Hand Guard - XMR - XTP - XXC
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 450f | 709401303 | Deep Black RH Air Deflector |
| 450f | 709402053 | Sunburst Yellow RH Air Deflector |
| 450g | 709401304 | Deep Black LH Air Deflector |
| 450g | 709402054 | Sunburst Yellow LH Air Deflector |
| 450h | 205444056 | Socket Head Screw M4 X 40 |
| 450j | 232541414 | Elastic Stop Nut M4 |
| 450k | 715001378 | Air Deflector Support Kit |
| 450p | 207662044 | Hex. Flange Screw M6 X 20 |
| 450q | 250000717 | Torx Head Screw M6 X 16 |
| 450r | 232561600 | Hex. Elastic Stop Nut M6 |
| 450s | 709400161 | Small Bracket |
| 450t | 709400162 | Large Bracket |
| 450u | 205384034 | Socket Head Screw |
| 450w | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
