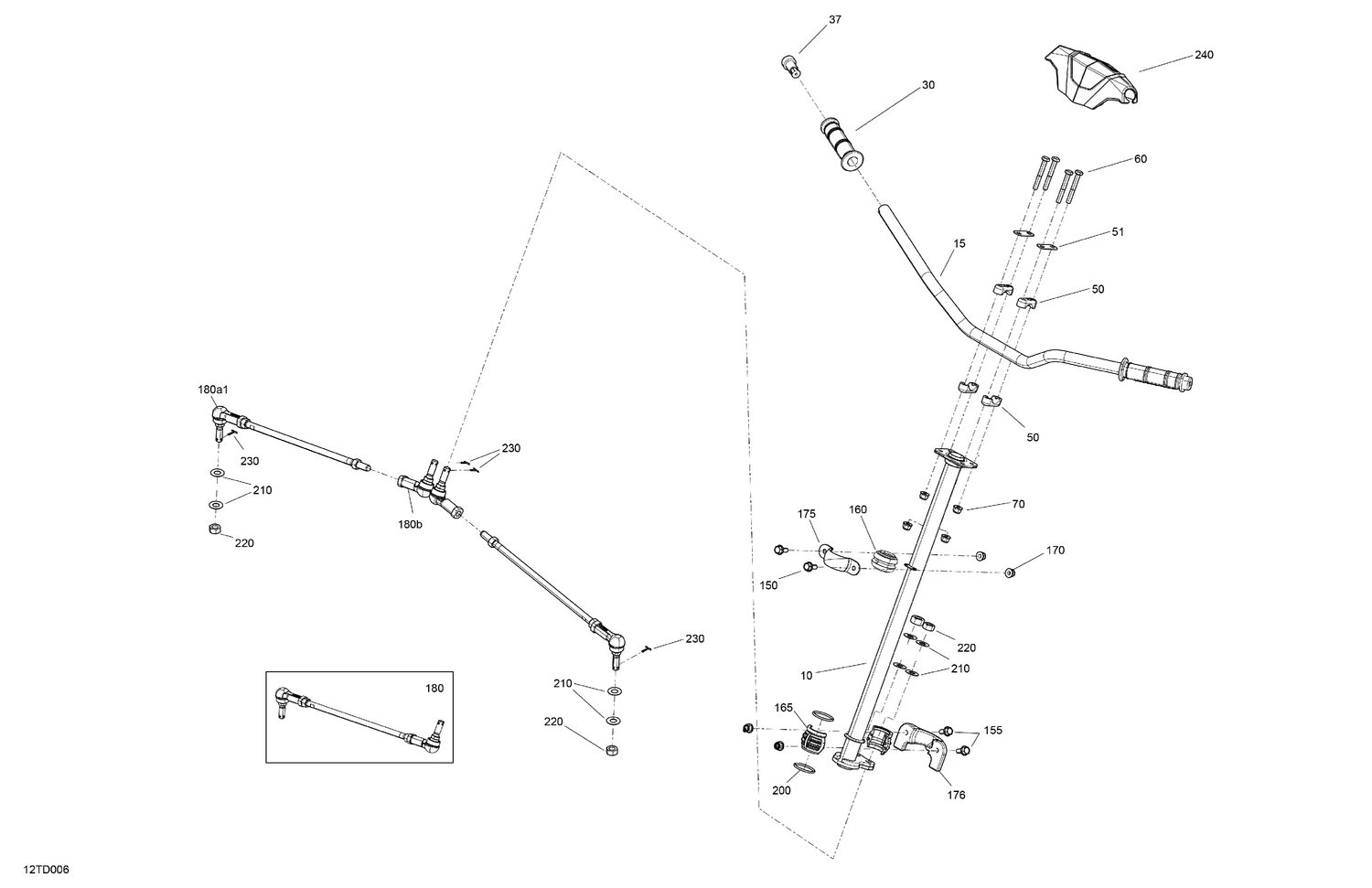

03- Mechanic - Steering
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709402806 | Steering Axle |
| 15 | 709402872 | Deep Black, Handlebar |
| 30 | 709400493 | Handle Grip |
| 37 | 709400449 | End Piece |
| 50 | 709401799 | Steering Support |
| 51 | 709400509 | Stiffner |
| 60 | 207086046 | Hex. Screw M8 X 60 |
| 70 | 233281416 | Hex. Elastic Flange Nut M8 |
| 150 | 207682044 | Hex. Flange Screw M8 X 20 |
| 155 | 207682544 | Hex. Flange Screw M8 X 25 |
| 160 | 709402169 | Spherical Bushing |
| 165 | 709400783 | Spherical Half Bushing |
| 170 | 233281416 | Hex. Elastic Flange Nut M8 |
| 175 | 709400827 | Upper Column Attachment |
| 176 | 709401428 | Column Attachment |
| 180a1 | 709402303 | LH Ball Joint |
| 180b | 709402302 | RH Ball Joint |
| 200 | 293300068 | O-Ring |
| 210 | 706200281 | Hardened Washer |
| 220 | 250100239 | Hex Nut M12 |
| 230 | 211400013 | Cotter Pin |
