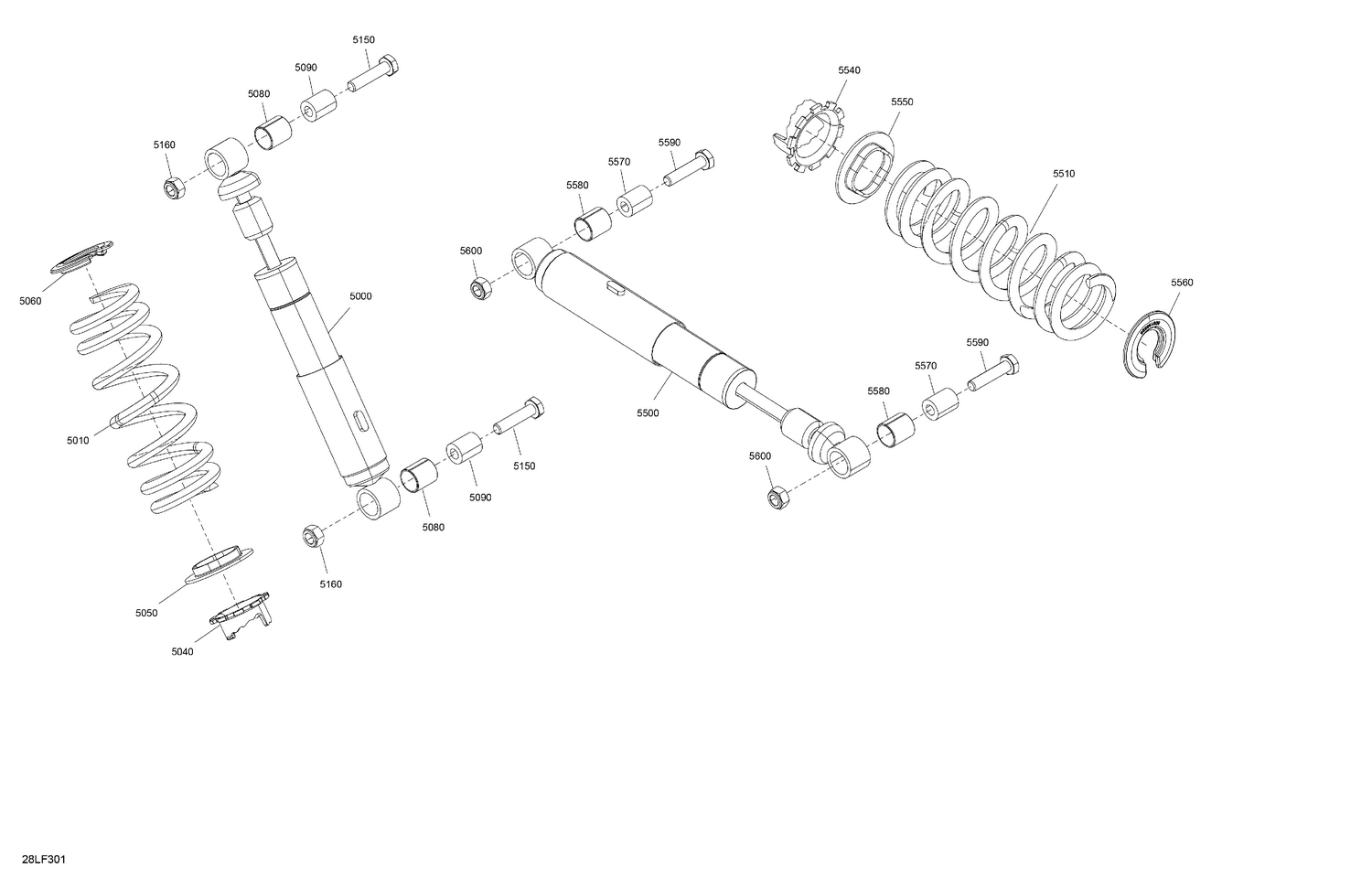

05- Suspension - Rear Shocks
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503196529 | Shock Absorber |
| 5010 | 503196560 | Spring 220 Mm-55 N/Mm |
| 5040 | 230078 | Adjusting Cam |
| 5050 | 503195685 | Spacer |
| 5060 | 503196528 | Stopper Spring |
| 5080 | 503195134 | Glide Bearing |
| 5090 | 5446652 | Bushing |
| 5150 | 207004544 | Hex. Screw M10 X 45 |
| 5160 | 232500416 | Elastic Stop Nut M10 |
| 5500 | 503196531 | Shock Absorber |
| 5510 | 503195854 | Black, Spring 280 MM-70 N/MM |
| 5540 | 230078 | Adjusting Cam |
| 5550 | 503195685 | Spacer |
| 5560 | 503196528 | Stopper Spring |
| 5570 | 5446652 | Bushing |
| 5580 | 503195134 | Glide Bearing |
| 5590 | 207004544 | Hex. Screw M10 X 45 |
