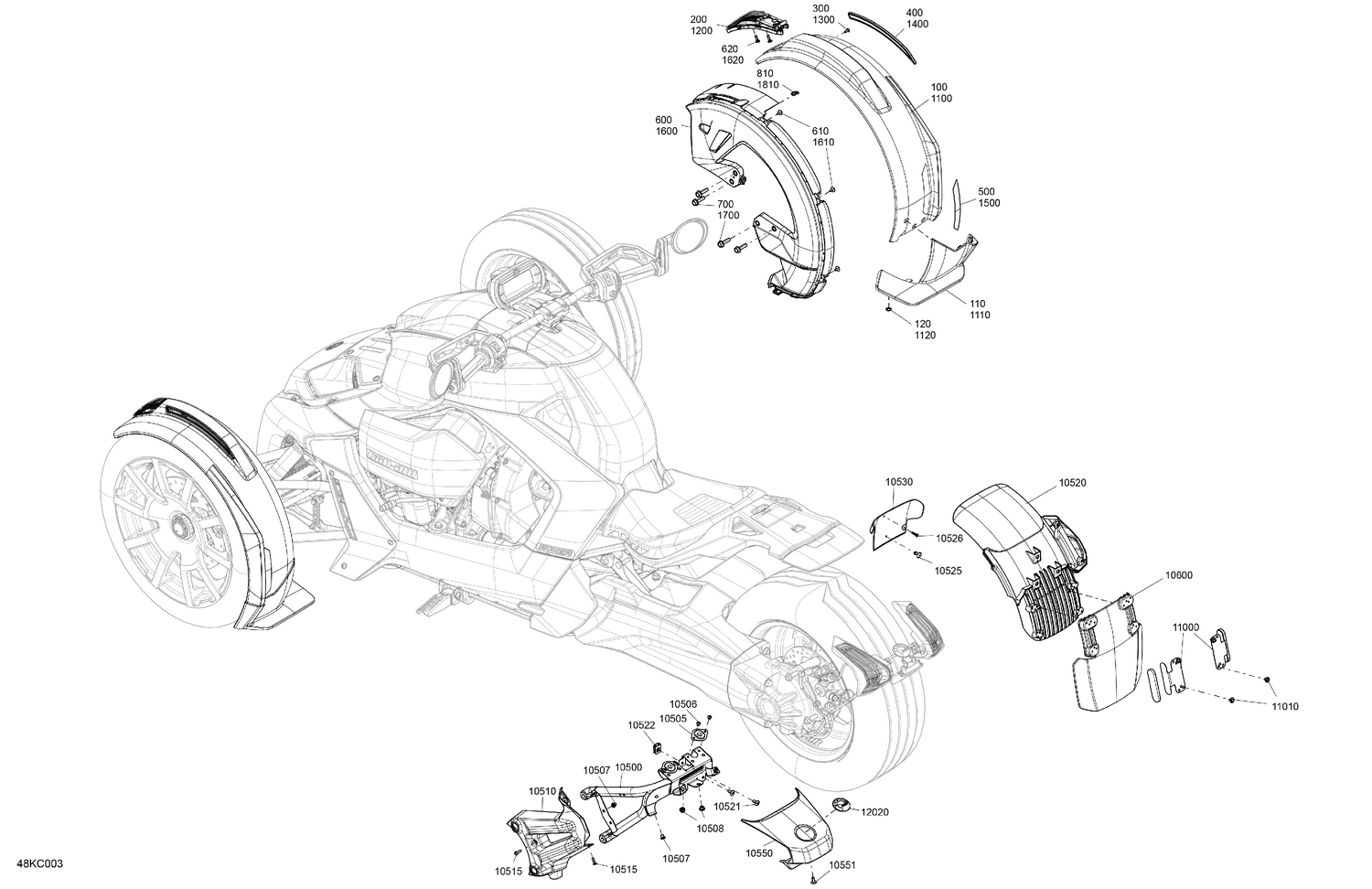

07- Body - Fender Kit
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 705016133 | LH Front Mud Guard |
| 120 | 250100181 | Push Nut |
| 200 | 710007008 | LH Front Position Light |
| 300 | 250001131 | Torx Truss PT K40 x 12 |
| 400 | 705012404 | Yellow, LH Reflector |
| 500 | 705012406 | Rear Reflector, Front Fender |
| 600 | 705011696 | LH Fender Support |
| 610 | 250000805 | Plastite Screw M4 X 10 |
| 620 | 250000720 | Torx Screw K50 X 16 |
| 700 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 810 | 409210100 | Clip Bracket Connector (edge) |
| 1100 | 705016208 | RH Front Fender |
| 1110 | 705016132 | RH Front Mud Guard |
| 1120 | 250100181 | Push Nut |
| 1200 | 710007009 | RH Front Position Light |
| 1300 | 250001131 | Torx Truss PT K40 x 12 |
| 1400 | 705012405 | Yellow, RH Reflector |
| 1500 | 705012406 | Rear Reflector, Front Fender |
| 1600 | 705017327 | RH Front Fender Support This part replaces 705011697. |
| 1610 | 250000805 | Plastite Screw M4 X 10 |
| 1620 | 250000720 | Torx Screw K50 X 16 |
| 1700 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 10500 | 705013304 | Rear Fender Support |
| 10505 | 705005055 | Grommet Ass'y |
| 10506 | 293150102 | Rivet 3/16" |
| 10507 | 293450267 | Insert M5 - 0.8 |
| 10508 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 10510 | 705013305 | LH Fender Trim Support |
| 10515 | 250000578 | Torx Truss Screw M5 X 16, T25 |
| 10520 | 705013143 | Rear Lower Fender |
| 10521 | 250000789 | Torx Truss M6X14 |
| 10522 | 250100208 | Panel Nut M6 X 1.0 |
| 10525 | 293150104 | Pop Rivet 3/16" |
| 10526 | 250001097 | Screw 8-32 |
| 10530 | 705013229 | Mud Guard |
| 10550 | 706003151 | Rear Fender Trim |
| 10551 | 250000616 | Black, Socket Screw, M6 X 16 S.Grip |
| 10600 | 705016134 | Rear Mud Guard |
| 11000 | 706005433 | License Plate Support Ass'y This part replaces 706004718. |
| 11010 | 250000725 | Screw M4 X 16 |
| 12020 | 704909040 | BRP Logo Emblem 48 MM UV |
