Home / BRP / EVINRUDE / 1979 / 15 / 15904E 1979 / GEARCASE

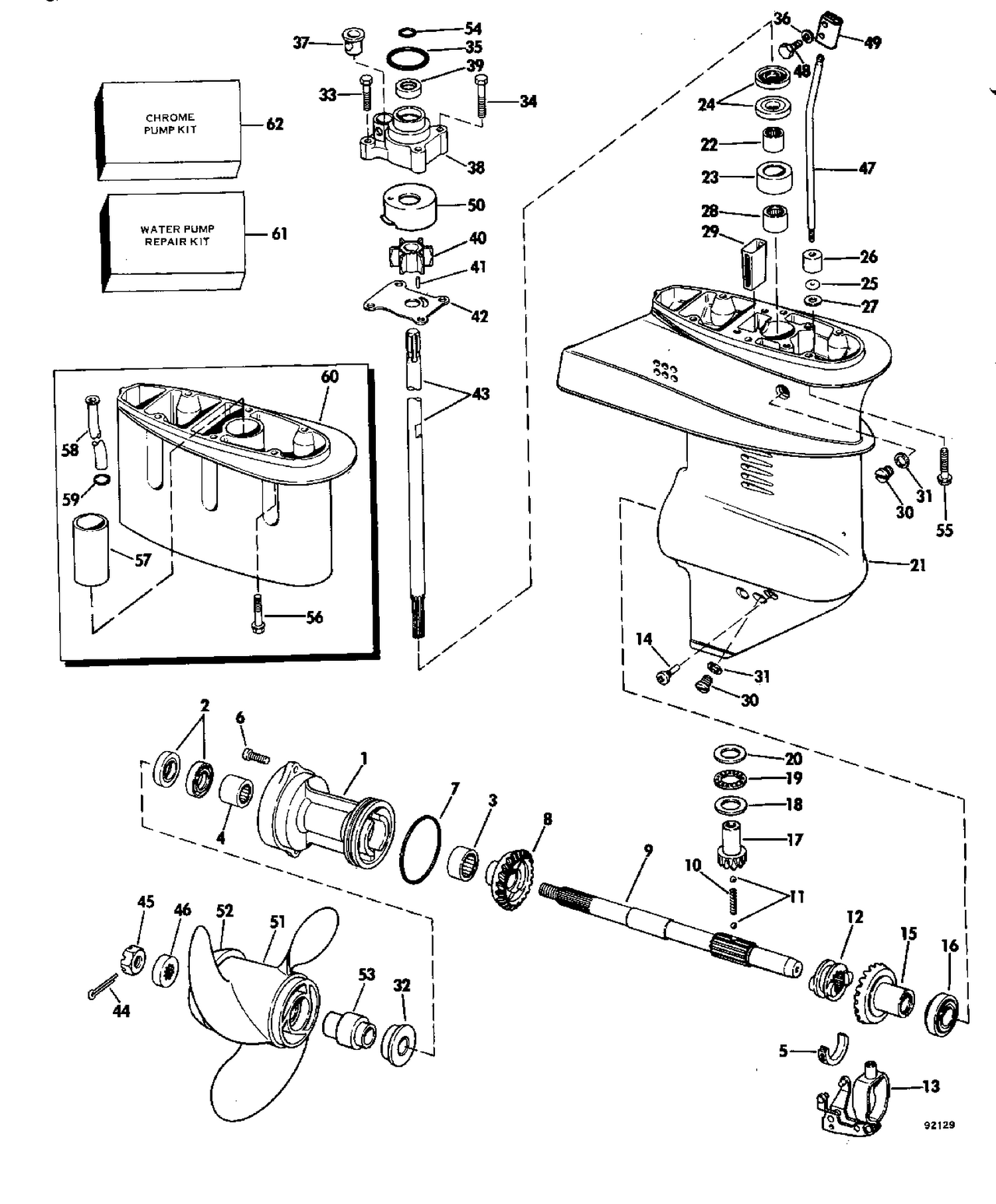

GEARCASE

GEARCASE

Parts (26)

RefPart NumberDescription
9 0322097 PORP0ELLER SHAFT
12 0325013 SHIFTER, Clutch dog
15 0386076 GEAR & BUSHING ASSY., Forward
17 0322341 PINION, Driveshaft
18 0322202 THRUST WASHER, Lower pinion bearing
20 0322201 THRUS TWASHER,Upper pinion bearing
21 0438617 GEARCASE Assy, This part replaces 0388002.
25 0301877 O RING SHIFT ROD
32 0318966 THR BUSHING, Prop. to shaft
38 0435390 IMPELLER HSG. & SEAL ASSY. This part replaces 0388289.
40 0386084 IMPELLER
41 0300611 AXE, turbine vers arbre d'entraînement
42 0318995 PLATE, Impeller housing
43 0321455 DRIVESHAFT, Standard
43 0321456 DRIVESHAFT, Long
47 0318992 SHIFT ROD LOWER, Standard
50 0324097 CUP, Impeller housing
51 0386669 PROPELLER AND BUSHING ASSEMBLY 10 X 5
51 0386670 PROPELLER AND BUSHING ASSEMBLY 9 X 10
51 0387389 PROPELLER, 9 1/4 x 8 AL
51 0389892 PROPELLER 9 3/8 X 9 SST
51 0778772 RH Alum. 9 1/2 x 10 This part replaces 0386118.
60 0123023 EXTENSION, Gearcase
61 0394711 CHROME PUMP KIT This part replaces 0389112.
0386710 0392002 EXTENSION KIT ASSY. This part replaces 0386710.
0388001 0438617 GEARCASE Assy, This part replaces 0388001.
