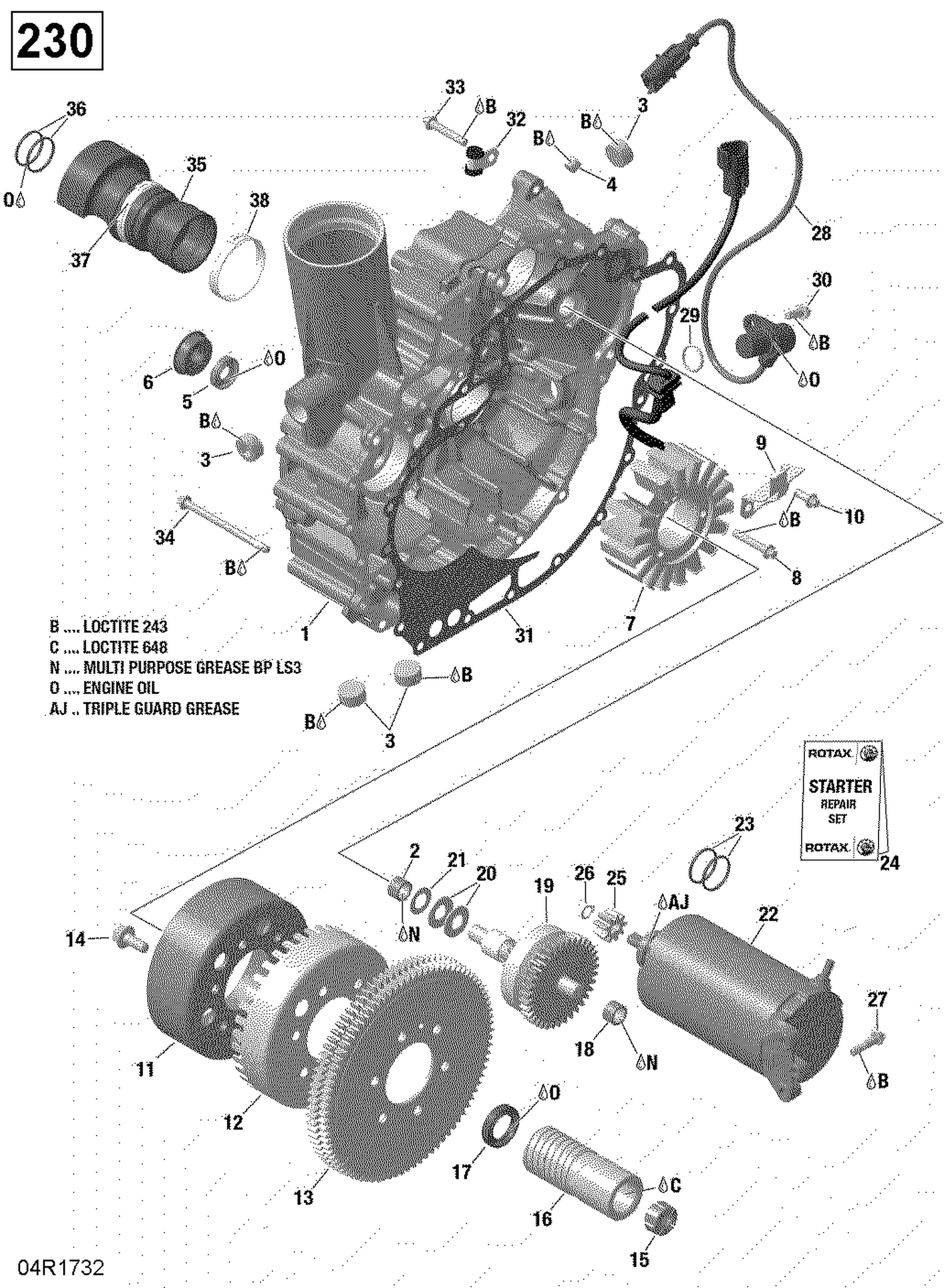

03- PTO Cover And Magneto - 230
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420232482 | Needle Bushing |
| 3 | 420641317 | Plug Screw M20 X 1.5 |
| 4 | 420641323 | Plug Screw M10 X 1 |
| 5 | 420650315 | Oil Seal This part replaces 420650310. |
| 6 | 420650371 | Rotary Seal This part replaces 420650370. |
| 7 | 420889726 | Stator Plate This part replaces 420889721. |
| 8 | 420641258 | Torx Flange Screw M6 X 35 |
| 9 | 420926300 | Retaining Plate |
| 10 | 420641048 | Torx Flange Screw M6 X 16 |
| 11 | 420296900 | Magneto Flywheel |
| 12 | 420966851 | Trigger Wheel This part replaces 420664082. |
| 13 | 420834871 | Starter Double Gear 87/86T This part replaces 420834874. |
| 14 | 295501162 | Hex Screw |
| 15 | 420660280 | Stop Sleeve |
| 16 | 420947770 | Output Sleeve |
| 17 | 420630551 | Sealing Ring |
| 18 | Not | Available As Spare Part - Needle Bushing |
| 19 | 420890637 | Bendix Starter |
| 20 | 420238300 | Spring Washer |
| 21 | 420827261 | Thrust Washer |
| 23 | 420631310 | O-Ring |
| 24 | 420641228 | Torx Flange Screw M6 X 85 |
| 24 | 420881340 | Carbon Brush Set |
| 25 | 420834522 | Starter Gear, 9 Teeth |
| 26 | 420845601 | Retaining Ring |
| 27 | 420641238 | Torx Flange Screw M6 X 25 |
| 29 | 420431580 | O-Ring |
| 30 | 420641048 | Torx Flange Screw M6 X 16 |
| 31 | 420931130 | Timing Drive Cover Gasket (1603 NA) |
| 32 | 420853414 | Clamp |
| 33 | 420641258 | Torx Flange Screw M6 X 35 |
| 36 | 420631612 | O-Ring This part replaces 420631610. |
| 37 | 420853023 | Gear Clamp 46.8-50.0MM |
