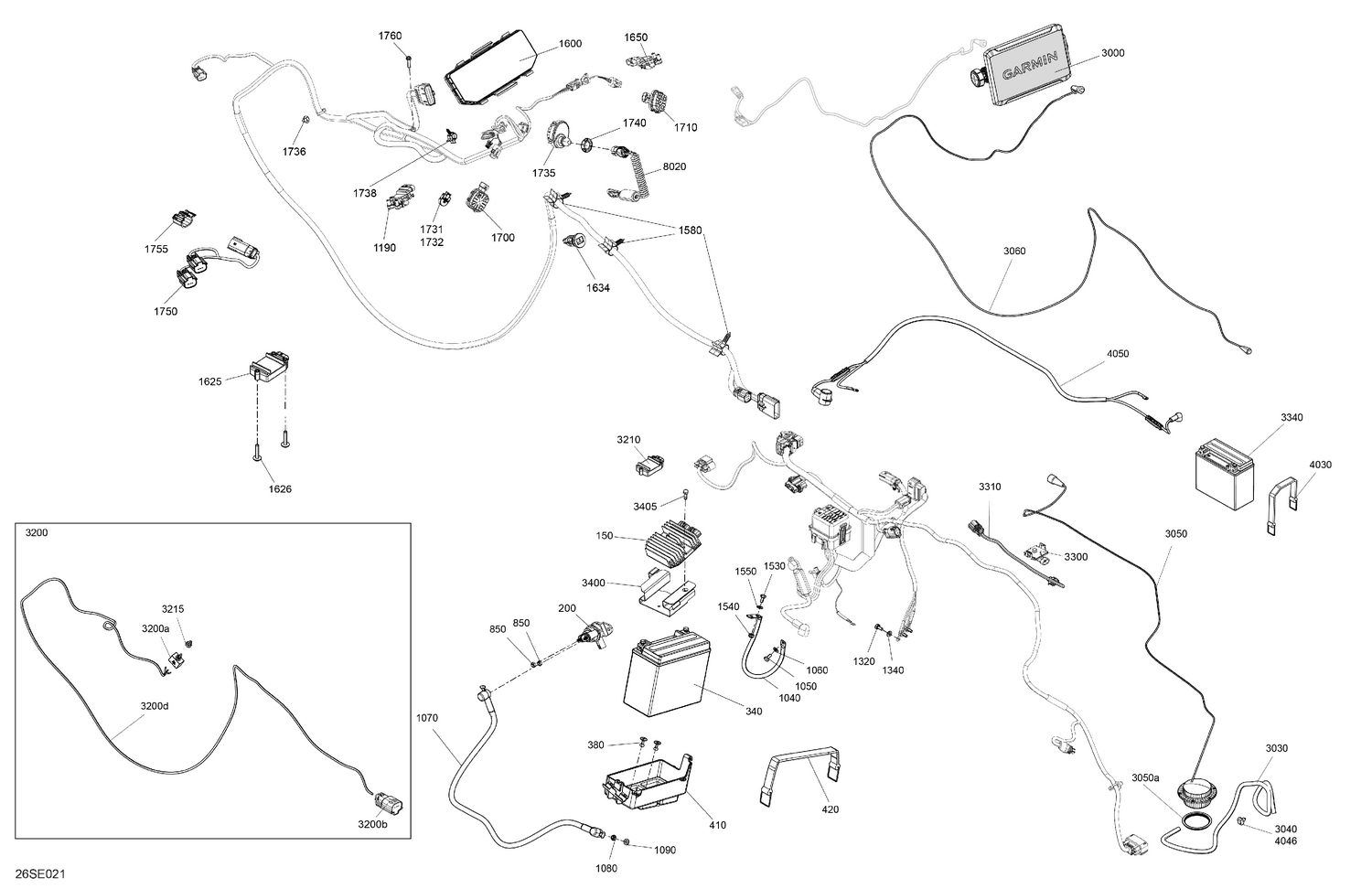

08- Electric - System
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 710010540 | Voltage Regulator |
| 200 | 278003012 | Starter Relay |
| 340 | 410301203 | Battery YUASA YTX20L |
| 380 | 293150123 | Pop Rivet 3/16" |
| 410 | 278003473 | Battery Support |
| 420 | 293850095 | Fuel Tank Strap |
| 850 | 232561200 | Brass Elastic Stop Nut M6 |
| 1040 | 278003451 | Ground Battery Cable |
| 1050 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1060 | 234061600 | Stainless Flat Washer M6 |
| 1070 | 278003369 | Starter Cable |
| 1080 | 232561200 | Brass Elastic Stop Nut M6 |
| 1090 | 234061600 | Stainless Flat Washer M6 |
| 1190 | 278002284 | LH Throttle Sensor |
| 1320 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1340 | 234061600 | Stainless Flat Washer M6 |
| 1530 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1540 | 232561200 | Brass Elastic Stop Nut M6 |
| 1550 | 234061600 | Stainless Flat Washer M6 |
| 1580 | 278003564 | Retainer |
| 1600 | 278004181 | Multifunction Gauge Full Size Color |
| 1625 | 278004506 | GPS |
| 1626 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1634 | 293720121 | Wiring Grommet |
| 1650 | 278002283 | Throttle Position Sensor |
| 1700 | 278003821 | Switch |
| 1710 | 278003474 | RH Switch Keypad |
| 1731 | 296000440 | Start/Stop Switch This part replaces 296000440. |
| 1732 | 296000440 | Start/Stop Switch This part replaces 296000440. |
| 1735 | 515179305 | Terminal DESS One Wire |
| 1736 | 710008294 | Mount Dart |
| 1738 | 278003564 | Retainer |
| 1740 | 278004274 | Specialized Nut |
| 1750 | 278003684 | Multiple Accessory Harness |
| 1755 | 278003734 | Connectors Support |
| 1760 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 3000 | 278004381 | GPS Receiver |
| 3030 | 219704389 | Polyurethane Hose 4000MM Long |
| 3040 | 710008294 | Mount Dart |
| 3050a | 292002447 | Seal |
| 3060 | 278003982 | Echo sounder Wiring Harness |
| 3200a | 278004017 | Switch |
| 3200b | 515178954 | Housing |
| 3200d | 515177246 | Shrink Tubing, 6 mm |
| 3210 | 278003996 | Module Minuterie |
| 3215 | 278004016 | Switch Trim |
| 3300 | 278003538 | O.T.A.S. Sensor |
| 3310 | 278003986 | Seat Wiring Harness |
| 3340 | 410301203 | Battery YUASA YTX20L |
| 3400 | 278004030 | Support Régulateur De Tension |
| 3405 | 207362060 | Hex. Screw M6 X 20, Scotch Grip |
| 4030 | 293850112 | Holding Strap |
| 4046 | 710008294 | Mount Dart |
| 4050 | 278004007 | Secondary Battery Wiring Harness |
