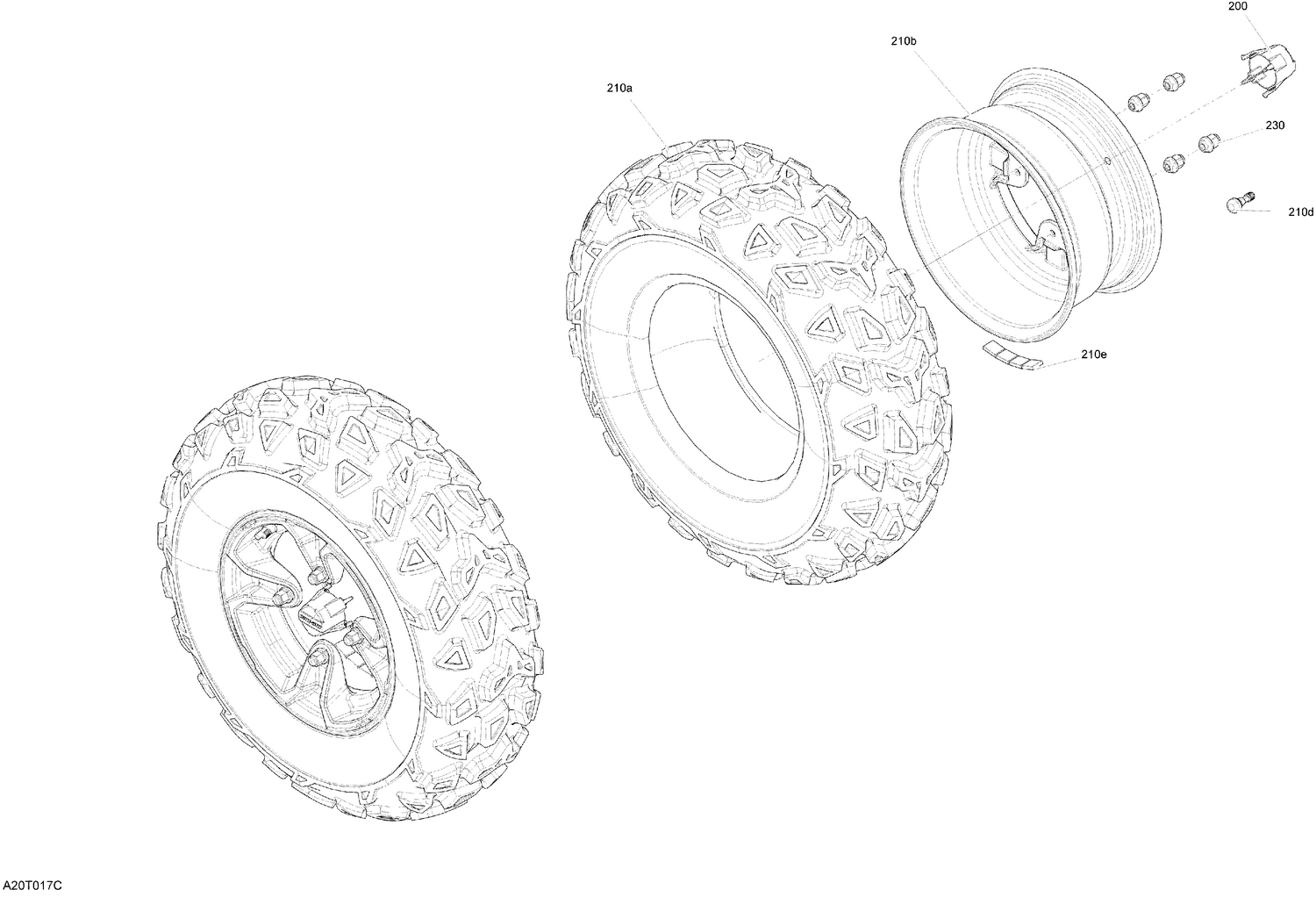

04- Drive - Front Section - Wheels - XT

04- Drive - Front Section - Wheels - XT

Parts (4)

RefPart NumberDescription
200 705400928 Wheel Cap
210a 705402708 Front Tire 25X8R12
210b 705401522 Deep Black, Rim R12 X 6
210d 705402595 Tire Valve Ass'y
