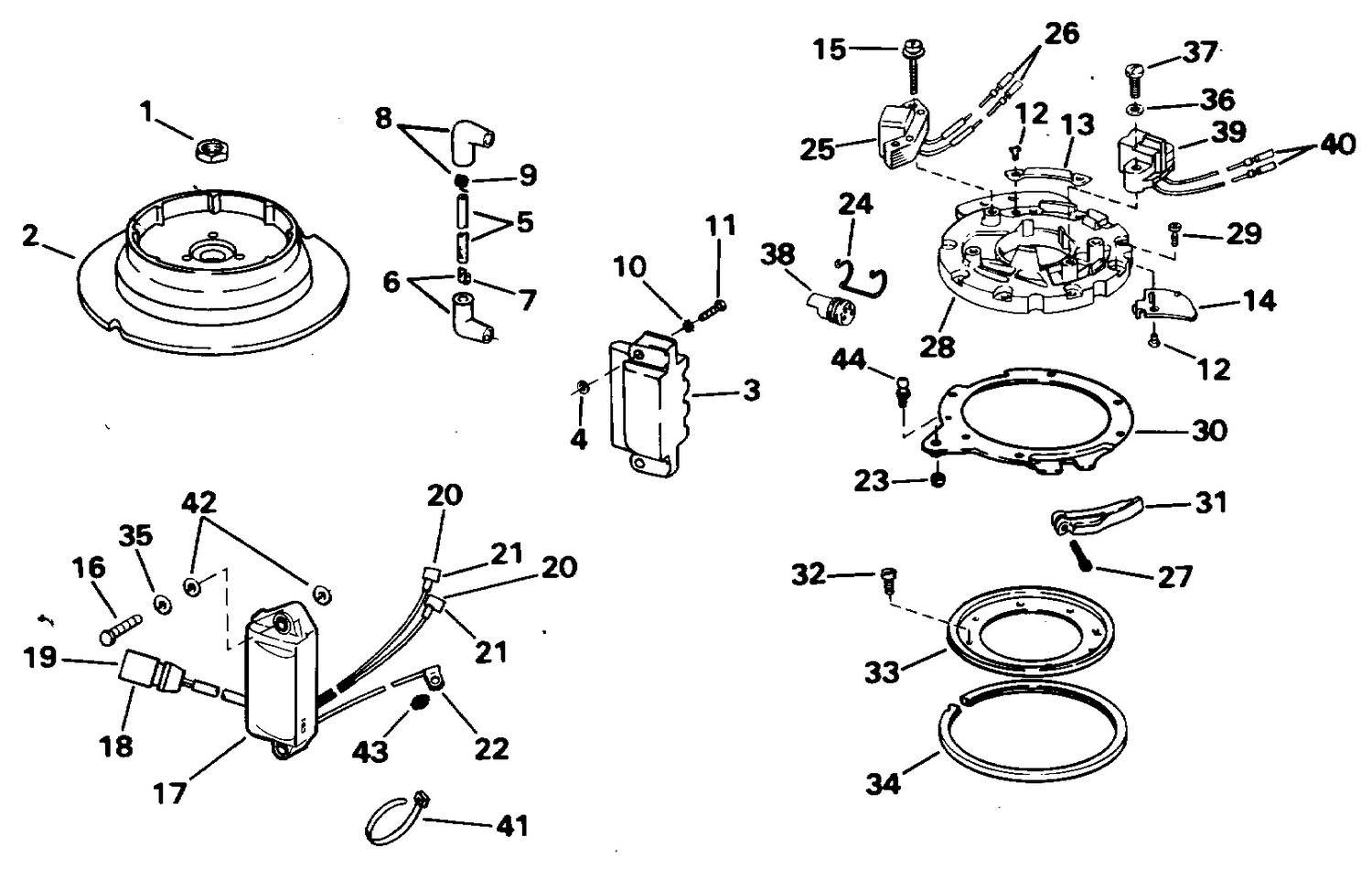

| Ref | Part Number | Description |
|---|
| 1 |
0302944 |
NIT,Flywheel |
| 2 |
0584584 |
FLYWHEEL ASSEMBLY |
| 3 |
0583740 |
COIL Assy |
| 4 |
0329176 |
FIBER WASHER, Ignition coil |
| 5 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 12 |
0303212 |
VIS, collier & capot |
| 13 |
0511458 |
COLLIER, fils |
| 14 |
0511459 |
CACHE, fils |
| 15 |
0337522 |
VIS, ensemble bobine |
| 16 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter |
| 17 |
0586798 |
POWER PACK This part replaces 0584783. |
| 23 |
0123603 |
LOCKNUT, Cover This part replaces 0338146. |
| 24 |
0512743 |
DISPOSITIF DE RETENUE |
| 25 |
0584840 |
CHARGE COIL & LAM ASSY. |
| 28 |
0582417 |
PLATE & SLEEVE ASSEMBLY |
| 29 |
0511460 |
VIS, dispositif de retenue |
| 30 |
0338215 |
RETAINER |
| 31 |
0338179 |
CAM, Throttle |
| 32 |
0315287 |
SCREW |
| 33 |
0322102 |
PLATE, Support |
| 34 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 37 |
0319682 |
VIS, capteur vers plaque |
| 39 |
0583387 |
SENSOR ASSEMBLY This part replaces 0584716. |
| 41 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 42 |
0329176 |
FIBER WASHER, Ignition coil |
