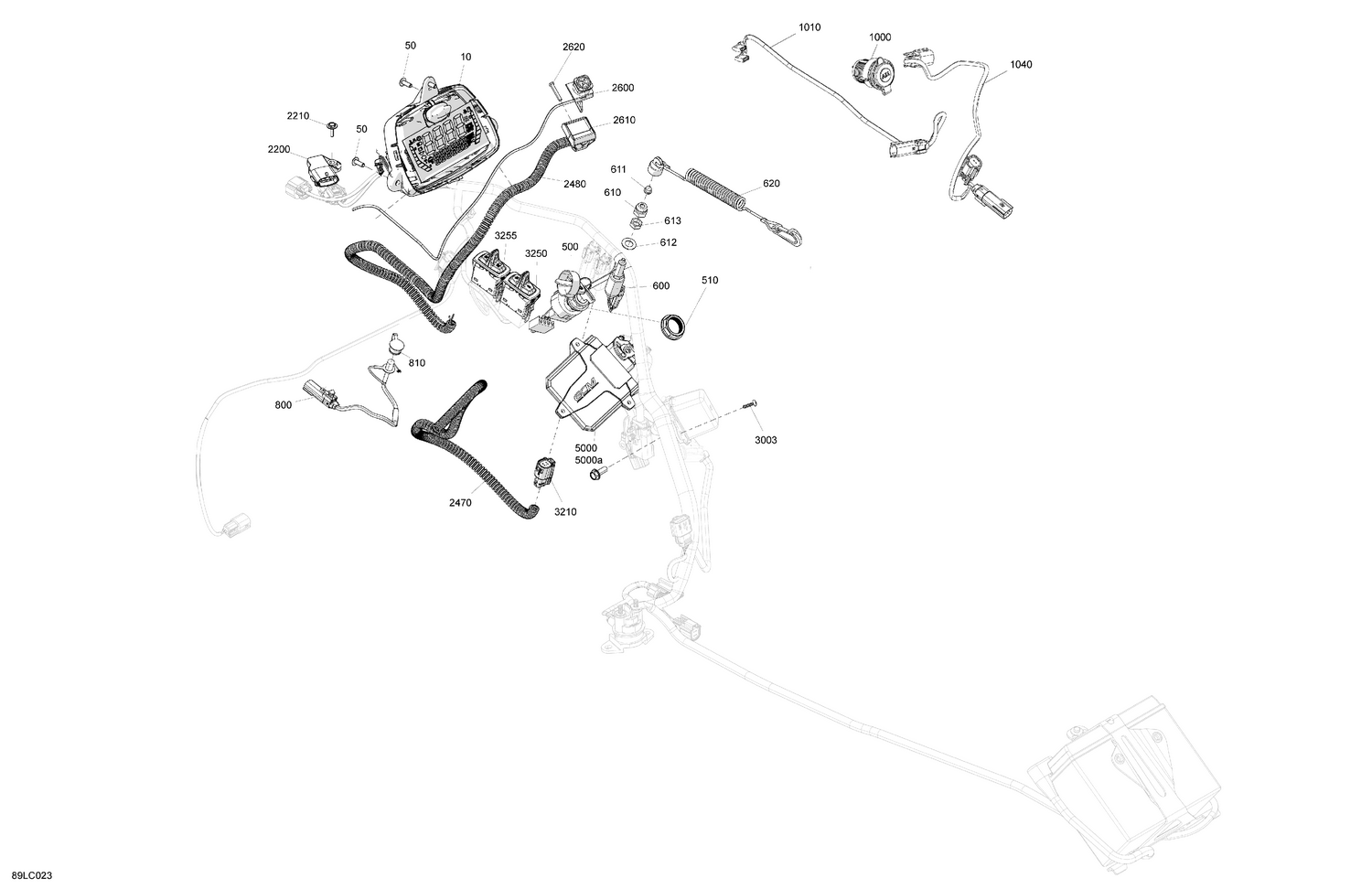

08- Electric - Upper Section
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515179303 | Multifunction Gauge Compact Mono |
| 13 | 5005376 | Motor & O-Ring Ay This part replaces 0438531. |
| 27 | 0335479 | BAGUE, support supérieur & inférieur |
| 28 | 0336534 | ANNEAU DE RETENUE |
| 32 | 0335480 | AXE, vérin de relevage |
| 34 | 0335463 | GOUPILLE, support inférieur |
| 50 | 250001131 | Torx Truss PT K40 x 12 |
| 500 | 710007324 | Ignition Switch |
| 510 | 710007923 | Nut Specialized |
| 600 | 515175653 | Brake Switch |
| 610 | 515145900 | Switch Nut |
| 611 | 570151100 | Plunger Cap |
| 612 | 503189564 | Washer |
| 613 | 234002600 | Flat Washer 10 mm, Stainless |
| 620 | 515178283 | Cap Ass'y |
| 800 | 515178645 | Heated Visor Wiring Harness |
| 810 | 572103300 | Cap |
| 1000 | 219400510 | USB Outlet |
| 1010 | 515178190 | Harness |
| 1040 | 515178153 | Extension Harness |
| 2200 | 707000995 | Pressure And Temperature Sensor |
| 2210 | 250000725 | Screw M4 X 16 |
| 2470 | 515178885 | Sheath Corrugated 9 MM ID |
| 2480 | 415130141 | Sleeve |
| 2600 | 515177931 | Emergency Stop Switch |
| 2610 | 515177310 | Emergency Stop Switch Support |
| 2620 | 250000263 | Torx Screw #8-18 |
| 3003 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 3250 | 515178462 | Switch Rocker Hand Warmer |
| 3255 | 515178463 | Switch Rocker Headlignt |
| 0438530 | 5005430 | Hyd Ay (Yc) This part replaces 0438530. |
