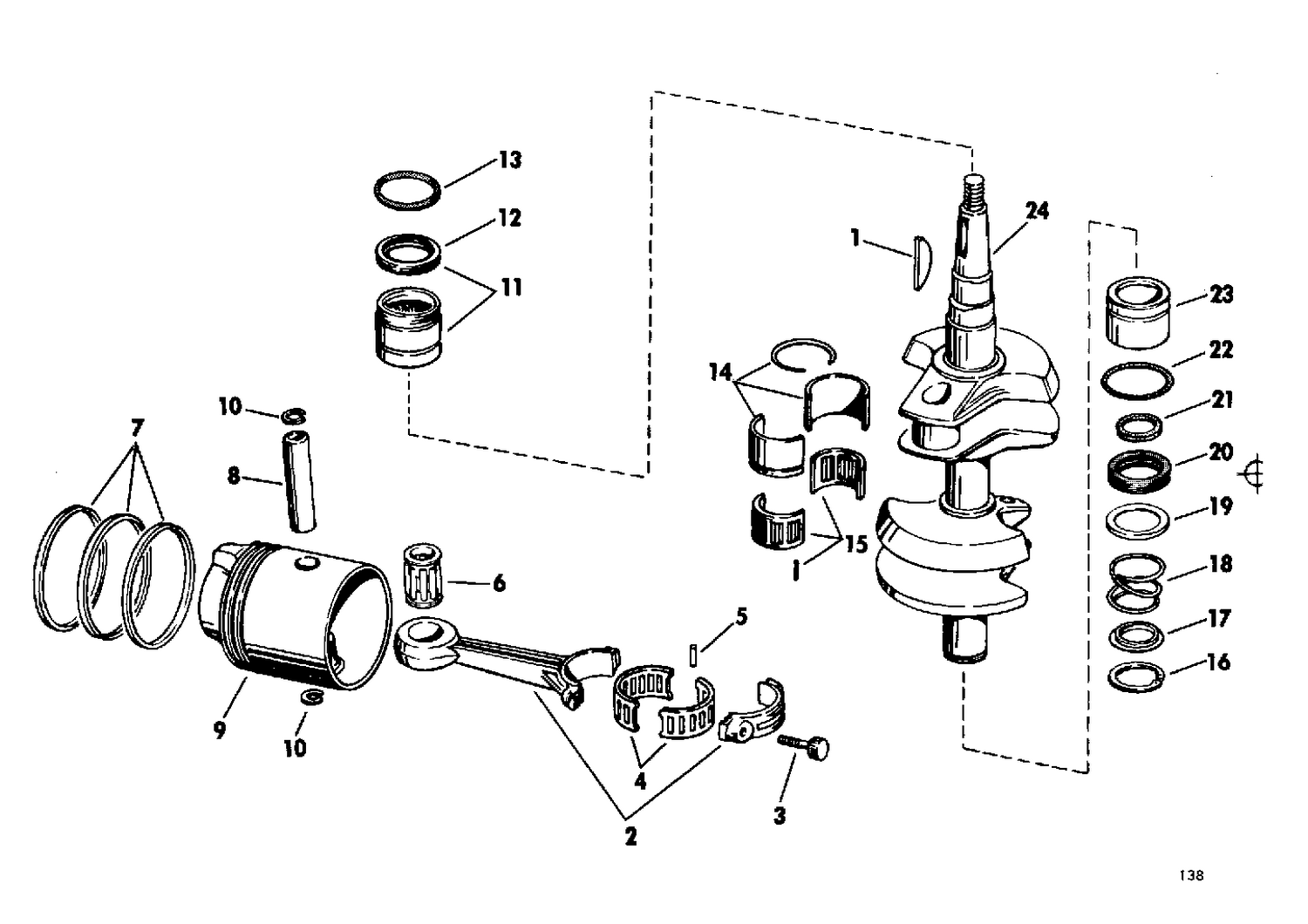

| Ref | Part Number | Description |
|---|
| 2 |
0378275 |
CONNECTING ROD ASSY |
| 4 |
0437088 |
BEARING Assy This part replaces 0378528. |
| 5 |
0378515 |
BEARING SET, Needle,connecting rod |
| 6 |
0378251 |
BEARING SET, Needle, wrist pin |
| 7 |
0380108 |
RING SET, Piston std |
| 7 |
0380109 |
RING SET, Piston, .025 o.s. |
| 8 |
0320663 |
WRIST PIN This part replaces 0307148. |
| 9 |
0383068 |
PISTON, Less rings, std |
| 9 |
0383069 |
PISTON, Less rings .025 O.S. |
| 10 |
0302577 |
RETAINING RING |
| 11 |
0378657 |
BEARING ASSEMBLY, Roller, upper |
| 12 |
0321504 |
SEAL This part replaces 0308500. |
| 13 |
0308458 |
JOINT TORIQUE, tête carter-moteur |
| 14 |
0309010 |
SLEEVE, Split, center bearing |
| 15 |
0378838 |
REATINER & NEEDLES, Center bearing |
| 16 |
0302536 |
RETAING RING |
| 17 |
0303801 |
WAHSER, Lower |
| 18 |
0302539 |
SPRING |
| 19 |
0302594 |
CLAMP |
| 20 |
0302538 |
CARBON SEAL |
| 21 |
0305098 |
QUAD RING |
| 23 |
0375763 |
BEARING, Roller, lower |
