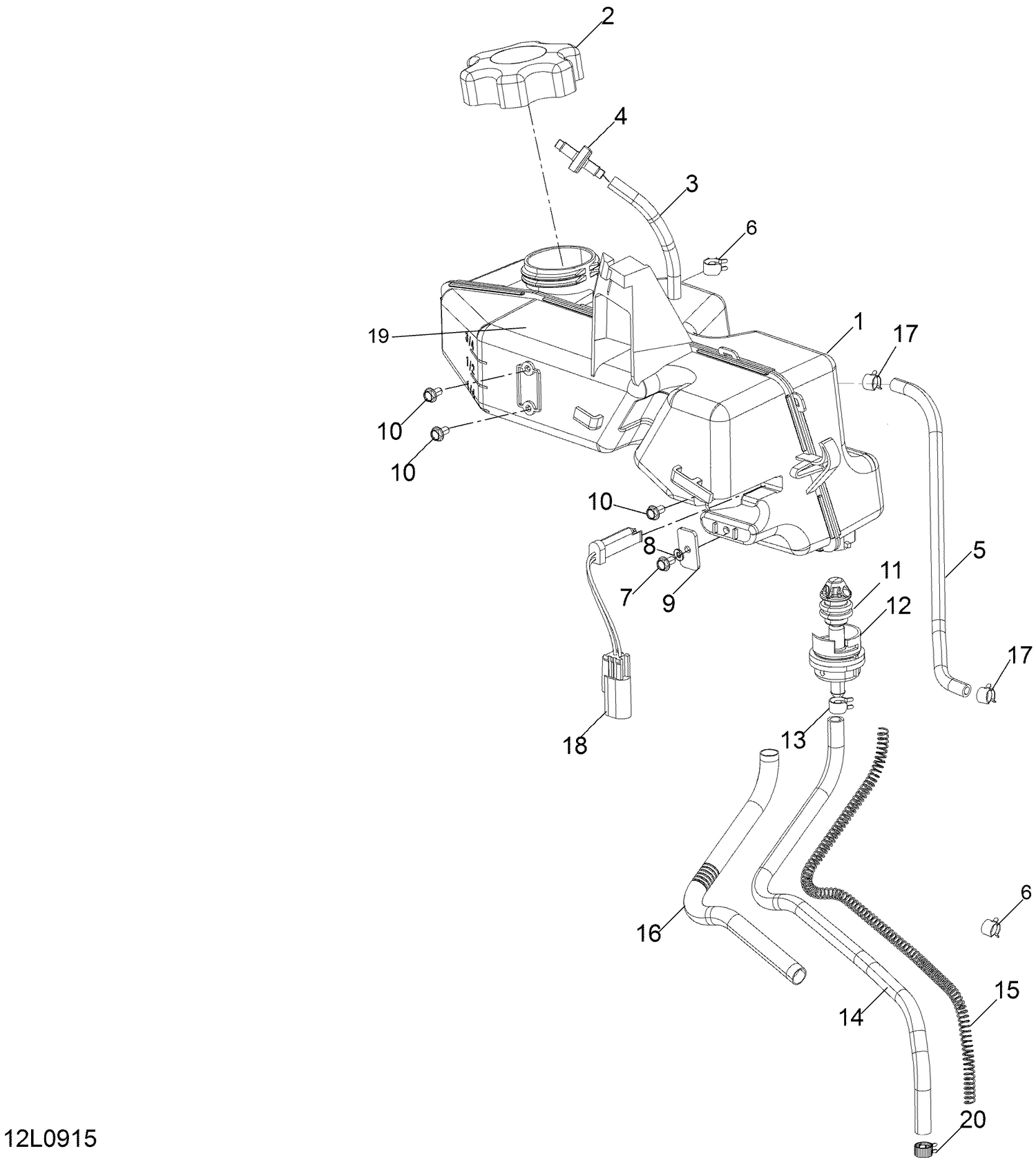

02- Oil System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000188 | Oil tank |
| 2 | 519000194 | CAP - Call your local BRP dealership |
| 3 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 4 | 275500398 | Valve check |
| 5 | 519000197 | Hose |
| 6 | 293650042 | Oetiker Clamp This part replaces 293650184. |
| 7 | 250000331 | Screw |
| 8 | 224061201 | Flat Washer |
| 9 | 519000179 | Bracket |
| 10 | 241151640 | Screw |
| 11 | 519000217 | Grommet |
| 12 | 519000195 | OIL FILTER - Call your local BRP dealership |
| 13 | 414415200 | Clamp |
| 14 | 519000171 | Hose |
| 15 | 519000196 | Spring |
| 16 | 513033228 | Tubing |
| 17 | 414554800 | Spring clamp |
| 18 | 515176508 | Level sensor |
| 19 | 516005528 | NOTICE DECAL, OIL - Call your local BRP dealership This part replaces 516003875. |
