Home / BRP / 2024 / 005 - North America - MXZ Series / North America - MXZ 600 EFI - 45 - NEO / North America - MXZ 600 EFI - 45 - NEO - BBRA - Catalyst Gray - 120X14X1.0C Track, 2024 000BBRA00 / 07- Body - Cargo

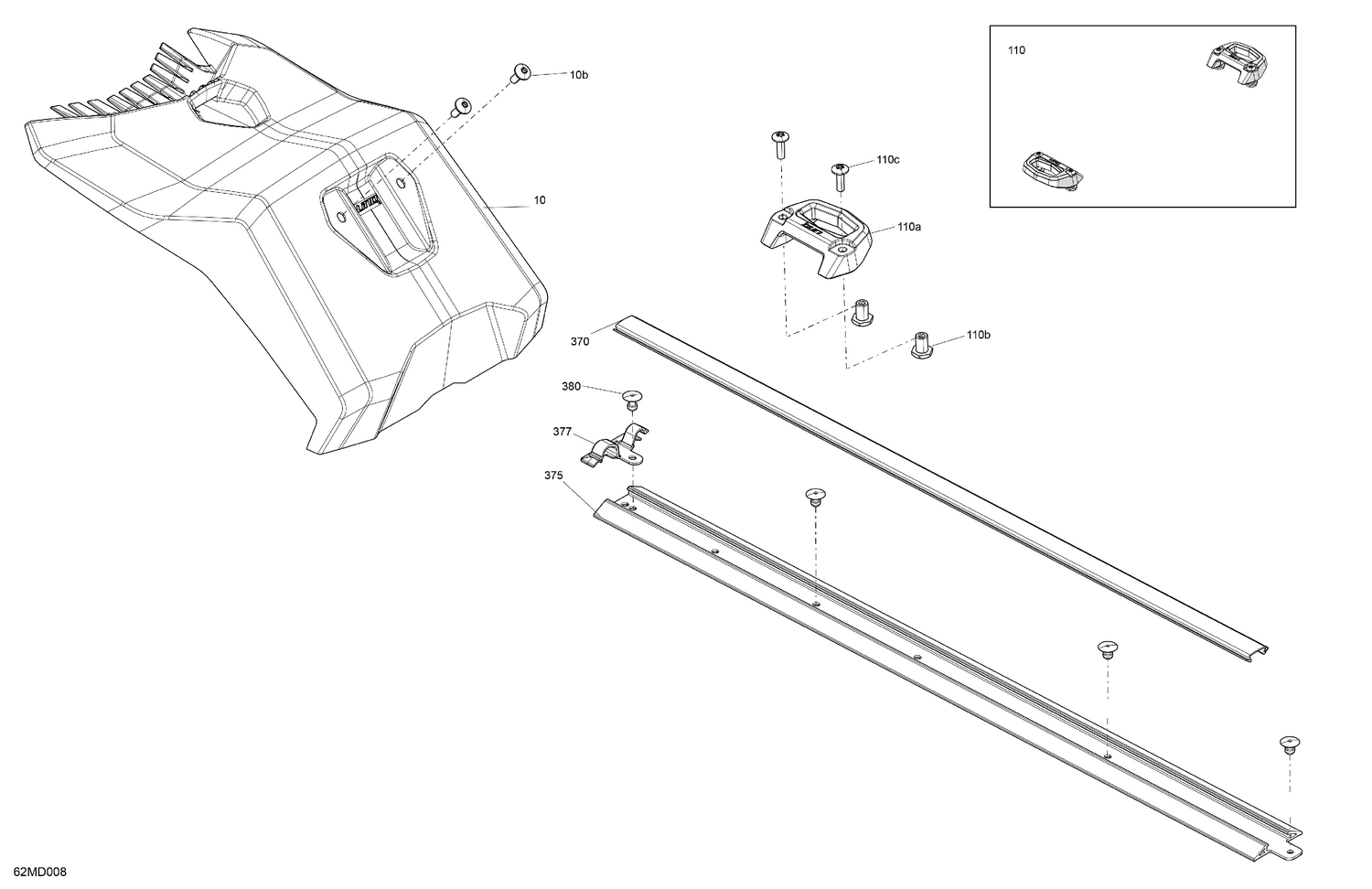

07- Body - Cargo

07- Body - Cargo

Parts (7)

RefPart NumberDescription
10b 250001005 Torx Screw M6 X 16
110a XXX Not Available As Spare Parts
110b 511000822 Threaded Insert
110c 250000446 Torx Screw M6 X 20, Scotch Grip
370 520002921 Extruded Trim
375 520002930 Grommet
377 520001722 Cap
