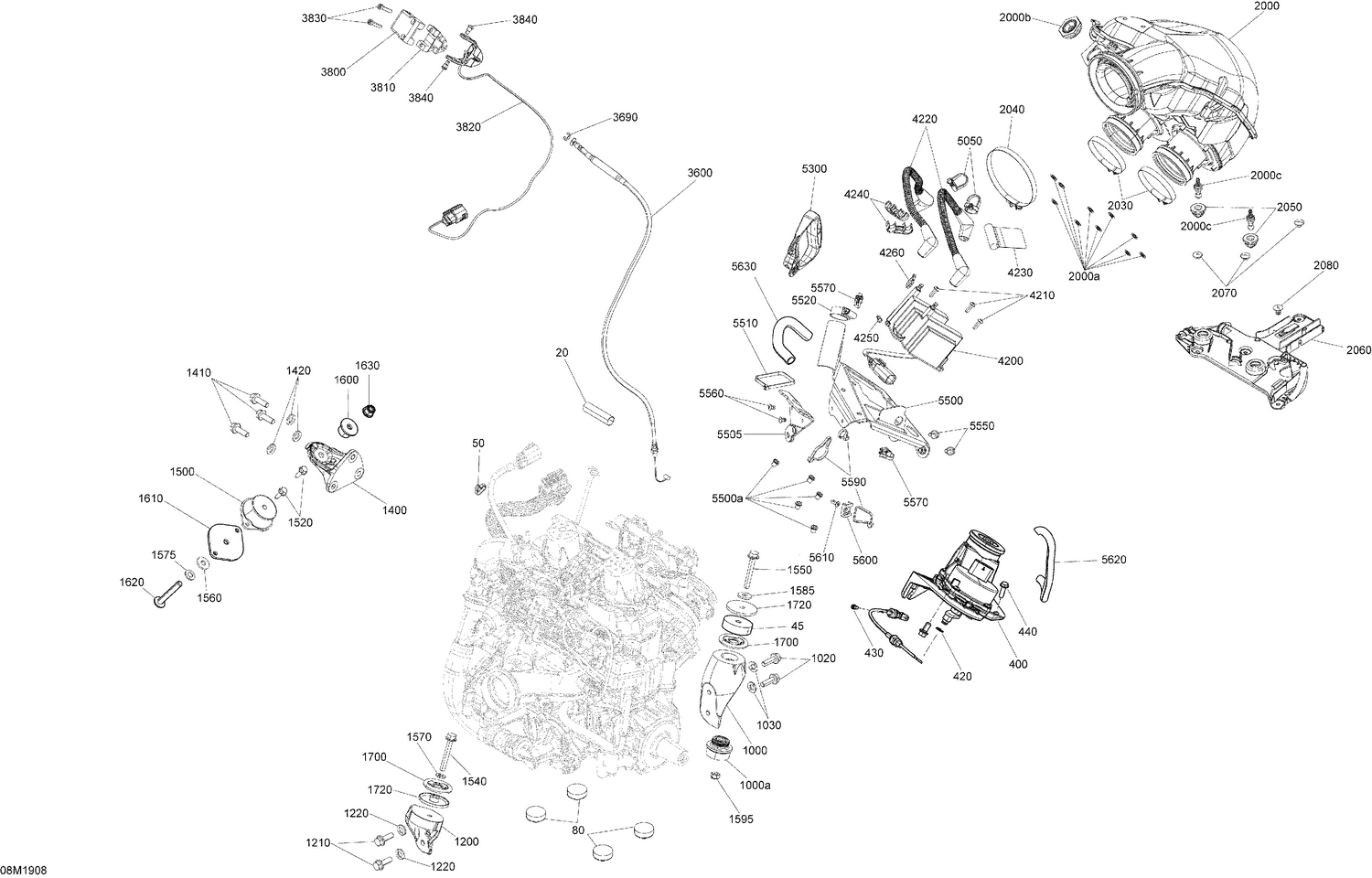

01- Engine - 600 Racing
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 515178492 | Braided Sleeve 60MM Long |
| 45 | 512061340 | Limiter |
| 50 | 414115200 | Tie-Rap 180 mm |
| 80 | 512061204 | Stopper |
| 400 | 420889432 | Servo Motor Ass'y This part replaces 420889438. |
| 420 | 293370122 | Circlip |
| 430 | 205551060 | Socket Head Screw M5 X 10 |
| 440 | 207551634 | Hex. Flange Screw, Scotch Grip |
| 1000a | 512061284 | Rubber Mount |
| 1020 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1030 | 250200146 | Conical Spring Washer M8 |
| 1200 | 512061025 | Front PTO Support |
| 1210 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1220 | 250200146 | Conical Spring Washer M8 |
| 1400 | 512061349 | MAG Support |
| 1410 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1420 | 250200146 | Conical Spring Washer M8 |
| 1500 | 512061284 | Rubber Mount |
| 1520 | 250001062 | Hex. Flange Screw M6 X 16 |
| 1540 | 207586044 | Hex. Flange Screw M8 X 60, Scotch Grip |
| 1550 | 207585544 | Hex. Flange Screw M8 X 55 |
| 1560 | 506151245 | Washer |
| 1570 | 250200008 | Flat Washer With Teflon 8 mm |
| 1575 | 250200146 | Conical Spring Washer M8 |
| 1585 | 503183200 | Yellow, Washer |
| 1595 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1600 | 512061351 | Limiter |
| 1610 | 512061347 | Shim |
| 1620 | 250000535 | Torx Screw M8 X 55 |
| 1630 | 233281414 | Hex. Flange Elastic Nut M8 |
| 1700 | 512061137 | Engine Stopper |
| 1720 | 512061335 | Spacer |
| 2000a | 732610072 | Push Nut |
| 2000b | 512061083 | Rubber |
| 2000c | 420441840 | Screw |
| 2030 | 293650212 | GEMI Clamp |
| 2040 | 293650247 | Gemi Clamp |
| 2050 | 420201630 | Rubber Cap |
| 2060 | 512061274 | Airbox Support |
| 2070 | 293150103 | Pop Rivet 3/16" |
| 2080 | 293150104 | Pop Rivet 3/16" |
| 3600 | 512061295 | Throttle Cable |
| 3690 | 414274500 | Circlip |
| 3800 | 512061365 | Upper Housing |
| 3810 | 512061294 | Lower Housing |
| 3820 | 512061266 | Throttle Ass'y |
| 3830 | 205052544 | Socket Screw M5 X 25 |
| 3840 | 250000991 | Flange Screw M5x12 |
| 4200 | 512061168 | Ignition Coil |
| 4210 | 250000724 | Torx Screw M5 X 20 |
| 4220 | 512061166 | Ignition Cable |
| 4230 | 516007661 | Warning Decal, Injectors |
| 4240 | 512061238 | Spark Plug Wire Holder |
| 4250 | 293750001 | Tie Wrap 94 mm |
| 4260 | 293750001 | Tie Wrap 94 mm |
| 5050 | 512060993 | Clamp |
| 5300 | 512060136 | Starter Grip |
| 5500a | 293450268 | Insert M5 X 0.8 |
| 5505 | 512061296 | Support |
| 5510 | 509000165 | Tie Rap |
| 5520 | 509000931 | Gear Clamp |
| 5550 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 5560 | 390909100 | Avex Rivet |
| 5570 | 710002899 | Clip Tie-Rap |
| 5590 | 414115200 | Tie-Rap 180 mm |
| 5600 | 293750026 | Tie Rap Mount |
| 5610 | 390402300 | Pop Rivet 3/16" |
| 5620 | 219704399 | Was 409901700 Tubing (9 mm) |
