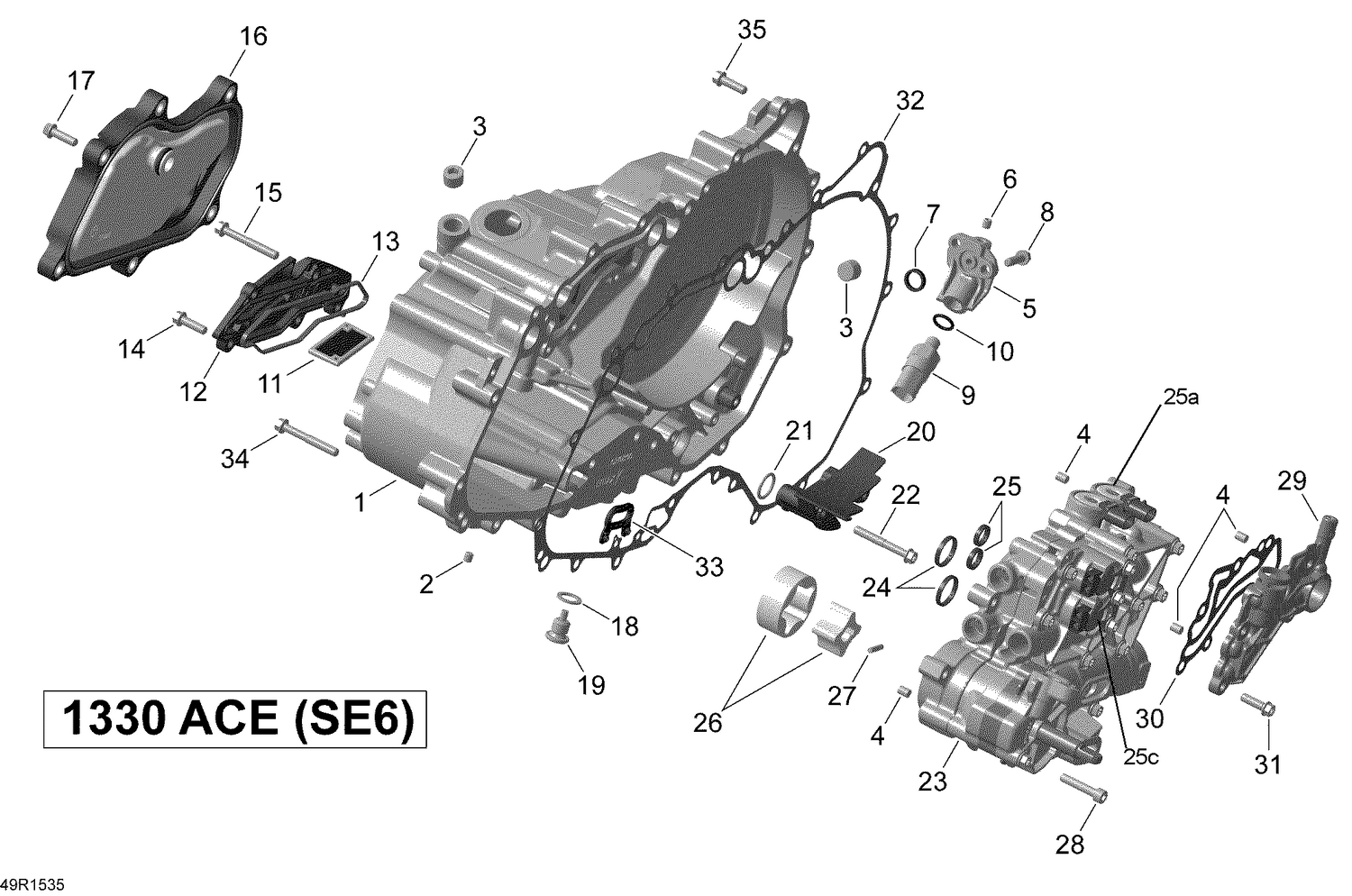

01- Clutch Cover _49R1535
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420841770 | PLUG SCREW M6 - Call your local BRP dealership |
| 3 | 420641309 | Plug Screw M14 X 1.5 This part replaces 420641308. |
| 4 | 420232210 | Center Pin |
| 5 | 420212173 | Pressure Sensor Housing |
| 6 | Not | Available As Spare Part - Not Available |
| 7 | 420450310 | Gasket |
| 8 | 420440207 | Torx Flange Screw M6 X 20 |
| 10 | 420450350 | O-Ring |
| 11 | 420656990 | Oil Sieve |
| 12 | 420210870 | Oil Duct Cover |
| 13 | 420250630 | Gasket |
| 14 | 420440207 | Torx Flange Screw M6 X 20 |
| 15 | 420440324 | Torx Flange Screw M6 X 45 |
| 16 | 420211156 | Oil Filter Cover |
| 17 | 420440207 | Torx Flange Screw M6 X 20 |
| 18 | 420250640 | Copper Washer |
| 19 | 420241780 | Magnetic Drain Plug M12 X 1.5 This part replaces 420241782. |
| 20 | 420224085 | Oil Guiding Plate |
| 21 | 420430220 | O-Ring |
| 22 | 420440324 | Torx Flange Screw M6 X 45 |
| 24 | 420450240 | Gasket |
| 25 | 420450310 | Gasket |
| 25a | 420264212 | Solenoid Valve 3/2 |
| 25c | 420656792 | Solenoid Valve Ass'y |
| 26 | 420456290 | Oil Pump Rotor |
| 27 | 420232731 | Needle Pin |
| 28 | 205063044 | Socket Head Screw M6 X 30 |
| 29 | 420211122 | VALVE HOUSING - Call your local BRP dealership |
| 30 | 420450290 | Gasket |
| 31 | 420440207 | Torx Flange Screw M6 X 20 |
| 34 | 420440324 | Torx Flange Screw M6 X 45 |
