Home / BRP / STERN DRIVE / 1998 / 4.30 / 432BPBYC 1998 / CRANKCASE & OIL PAN

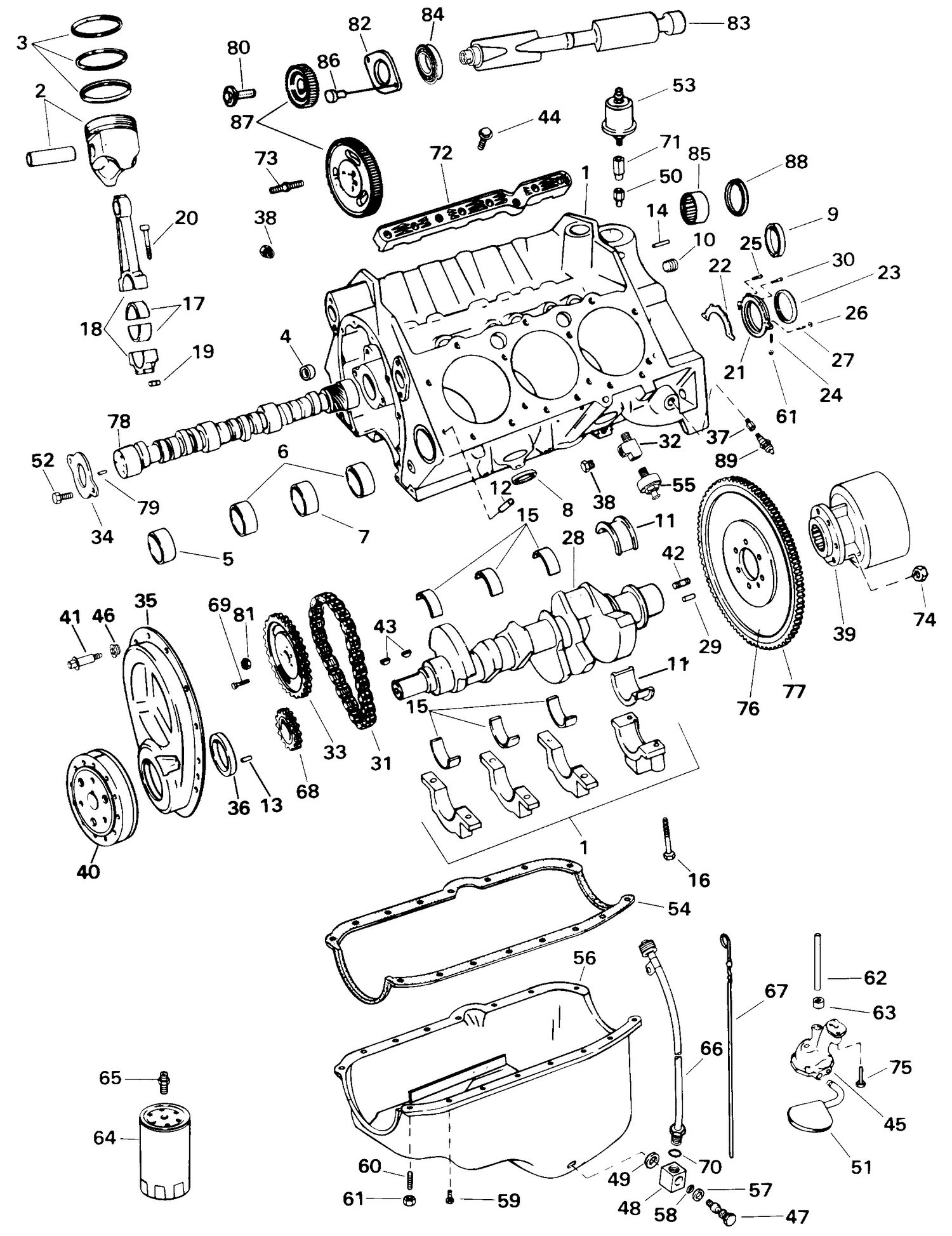

CRANKCASE & OIL PAN

CRANKCASE & OIL PAN

Parts (99)

RefPart NumberDescription
1 3855731 PARTIAL ENGINE
2 3855742 PISTON & PIN, Standard
2 3855743 PISTON & PIN, 0,5mm O.S.
3 3855740 PISTON RING SET, Standard
3 3855741 PISTON RING SET, 0,5mm O.S.
4 3853208 PLUG, Oil gallery, front
5 3853210 BEARING, Camshaft, #1
6 3853211 BEARING, Camshaft, #2, #4
7 3853212 BEARING, Camshaft, #3
8 0311376 CORE PLUG, Side This part replaces 3852100.
9 3853209 PLUG, Balancer shaft
10 3852471 PLUG
11 3853221 BEARING ASSY, Rear, standard
11 3853222 BEARING ASSY, 0.001 in. U.S.
11 3853223 BEARING ASSY, 0.002 in. U.S.
11 3853224 BEARING ASSY, 0.010 in. U.S.
11 3853225 BEARING ASSY, 0.020 in. U.S.
12 3853114 DOWEL PIN, Cylinder head
13 3855972 PIN, Camshaft gear
14 3853113 DOWEL PIN
15 3853215 BEARING, #1, 2, 3 & 4, standard
15 3853218 BEARING, #1, 2, 3 & 4, 0.010 in. U/S
15 3853220 BEARING, #1, 2, 3 & 4, 0.020 in. U/S
15 3853381 BEARING, #1, 2, 3 & 4, 0.001 in. U/S
15 3853382 BEARING, #1, 2, 3 & 4, 0.002 in. U/S
16 3853214 BOLT, Crankshaft, bearing cap
17 3853176 BEARING, Rod, 0.001 in. U.S.
17 3854955 BEARING, Rod, standard
18 0987730 CONNECTING ROD ASSY. This part replaces 3854173.
19 3853148 NUT, Connecting rod
20 3853179 BOLT, Connecting rod
21 3857716 RETAINER, Crankshaft seal
22 3852656 GASKET, Rear seal retainer
23 3852657 OIL SEAL, Crankshaft, rear
24 3857718 STUD, Oil pan, rear
25 3853204 BOLT, Seal retainer
26 3853206 NUT, Rear seal retainer
27 3853205 STUD, Rear seal retainer
28 3855733 CRANKSHAFT
29 3853200 PIN, Flywheel
30 3853203 BOLT, Seal retainer
31 3852685 CHAIN, Camshaft
32 3850490 FITTING, Knock sensor
33 3854319 SCREW, Module
34 3854329 RETAINER, Camshaft
35 3856594 COVER, Crankcase front end
36 3855732 SEAL, Front cover
37 3850660 FITTING, Oil pressure switch
38 0909601 PLUG, Manifold This part replaces 3850802.
39 3853917 COUPLER ASSY.
40 3855734 DAMPER ASSY.
41 3855736 SCREW, Front cover, long
41 3855737 SCREW, Front cover, short
41 3855738 STUD, Front cover
42 3853274 STUD, Coupler
43 3853648 KEY, Crankshaft
44 3855817 BOLT, Valve lifter guide
45 3856125 OIL PUMP ASSY.
46 3855739 GROMMET, Front cover
47 3855721 RETAINER, Oil pan drain
48 3855722 FITTING, Oil pan drain
49 3851981 GASKET, Fitting to oil pan
50 3855776 ADAPTER, Oil sender
51 3857714 SCREEN, Oil pickup
52 3854323 SCREW, Camshaft retainer
53 3857532 OIL PRESSURE SENDER
54 3855801 GASKET, Oil pan
55 3854905 SENSOR, Knock
56 3855800 OIL PAN
58 3853674 O-RING, Oil drain
59 3855802 SCREW, Oil pan
60 3853202 STUD, Oil pan
61 3856930 NUT, Oil pan
62 3853198 SHAFT, Distributor to oil pump
63 3853199 RETAINER, Distributor to oil pump
64 0502903 OIL FILTER
65 3853174 FITTING, Oil filter
66 3855723 TUBE ASSY., Oil drain
67 3850473 GAUGE, Oil level
68 3852690 SPROCKET, Crankshaft
69 3854330 BOLT, Camshaft sprocket
71 3852503 ELBOW, Oil pressure switch
72 3855825 GUIDE, Lifter
73 3854313 STUD, Camshaft sprocket
74 3853273 LOCKNUT, Coupler
75 3853234 BOLT, Pump to block
76 3853958 FLYWHEEL
77 3853207 GEAR, Flywheel
78 3854328 CAMSHAFT
79 3857717 PIN, Camshaft gear
80 3854320 BOLT, Balancer gear
81 3853168 NUT, Camshaft sprocket stud
82 3854317 RETAINER, Balancer shaft
83 3857715 BALANCER SHAFT & BEARING
84 3850519 BEARING, Balancer shaft
85 3854315 BEARING, Balancer shaft
86 3853172 BOLT, Balancer retainer
87 3854314 GEAR SET
88 3853209 PLUG, Balancer shaft
