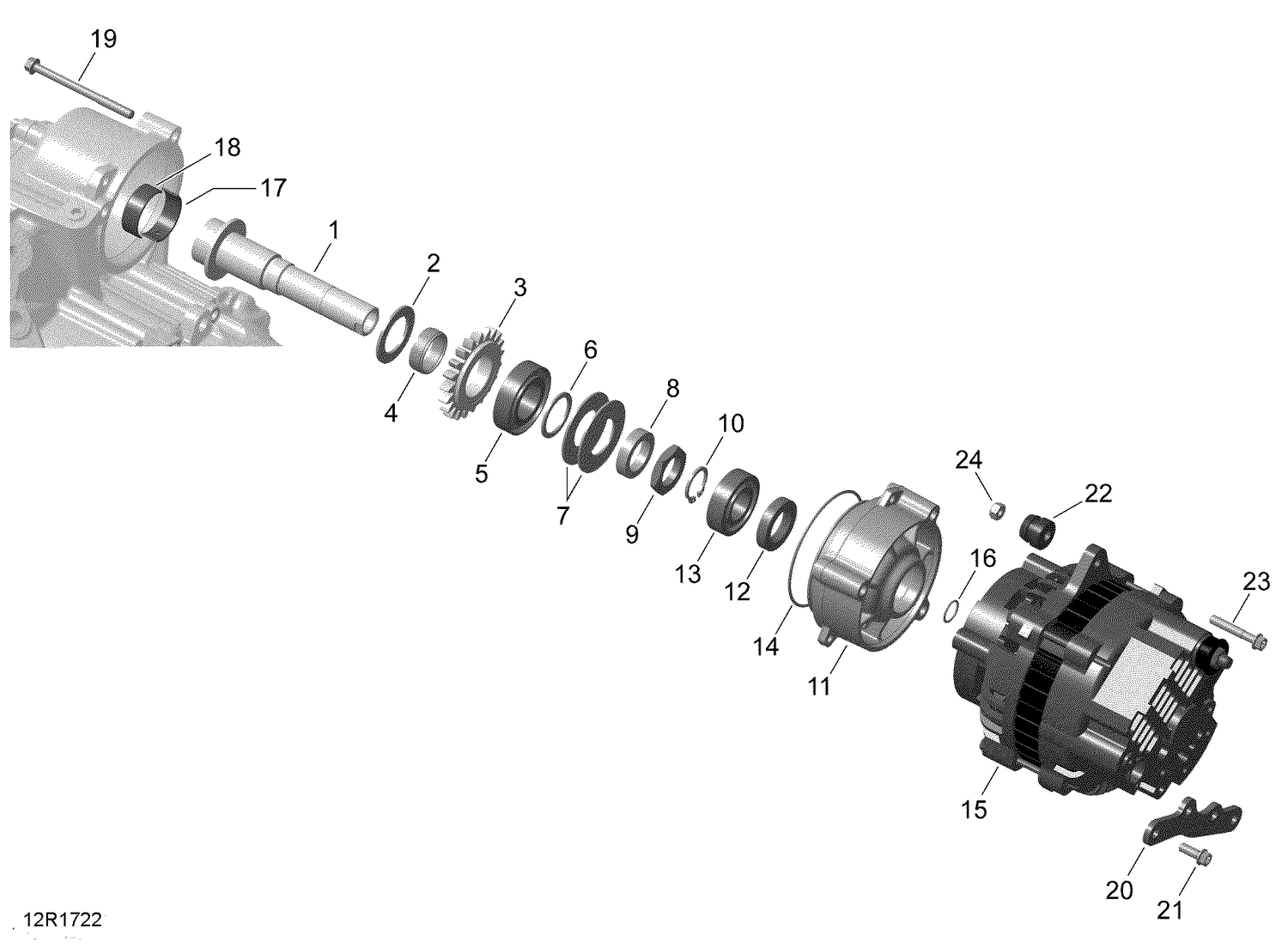

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Friction Washer |
| 3 |
Not |
Available As Spare Part - Drive Gear |
| 4 |
Not |
Available As Spare Part - Needle Bearing |
| 5 |
Not |
Available As Spare Part - Ball Bearing |
| 6 |
Not |
Available As Spare Part - Thrust Washer |
| 7 |
Not |
Available As Spare Part - Disc Spring |
| 8 |
Not |
Available As Spare Part - Ring |
| 9 |
Not |
Available As Spare Part - Hex. Nut M22 X 1.5 |
| 10 |
420945665 |
Retaining Ring |
| 11 |
420210610 |
Alternator Flange |
| 12 |
420930267 |
Oil Seal |
| 13 |
420932660 |
Ball Bearing |
| 14 |
420950490 |
O-Ring |
| 16 |
420430603 |
O-Ring |
| 17 |
Not |
Available As Spare Part - Plain Bearing |
| 18 |
Not |
Available As Spare Part - Plain Bearing |
| 19 |
420440657 |
Torx Flange Screw M6 X 75 |
| 20 |
420651710 |
Alternator Support |
| 21 |
420440162 |
Torx Flange Screw M6 X 16 |
| 22 |
420201170 |
Isolator |
| 23 |
420440274 |
Torx Flange Screw M6 X 35 |
