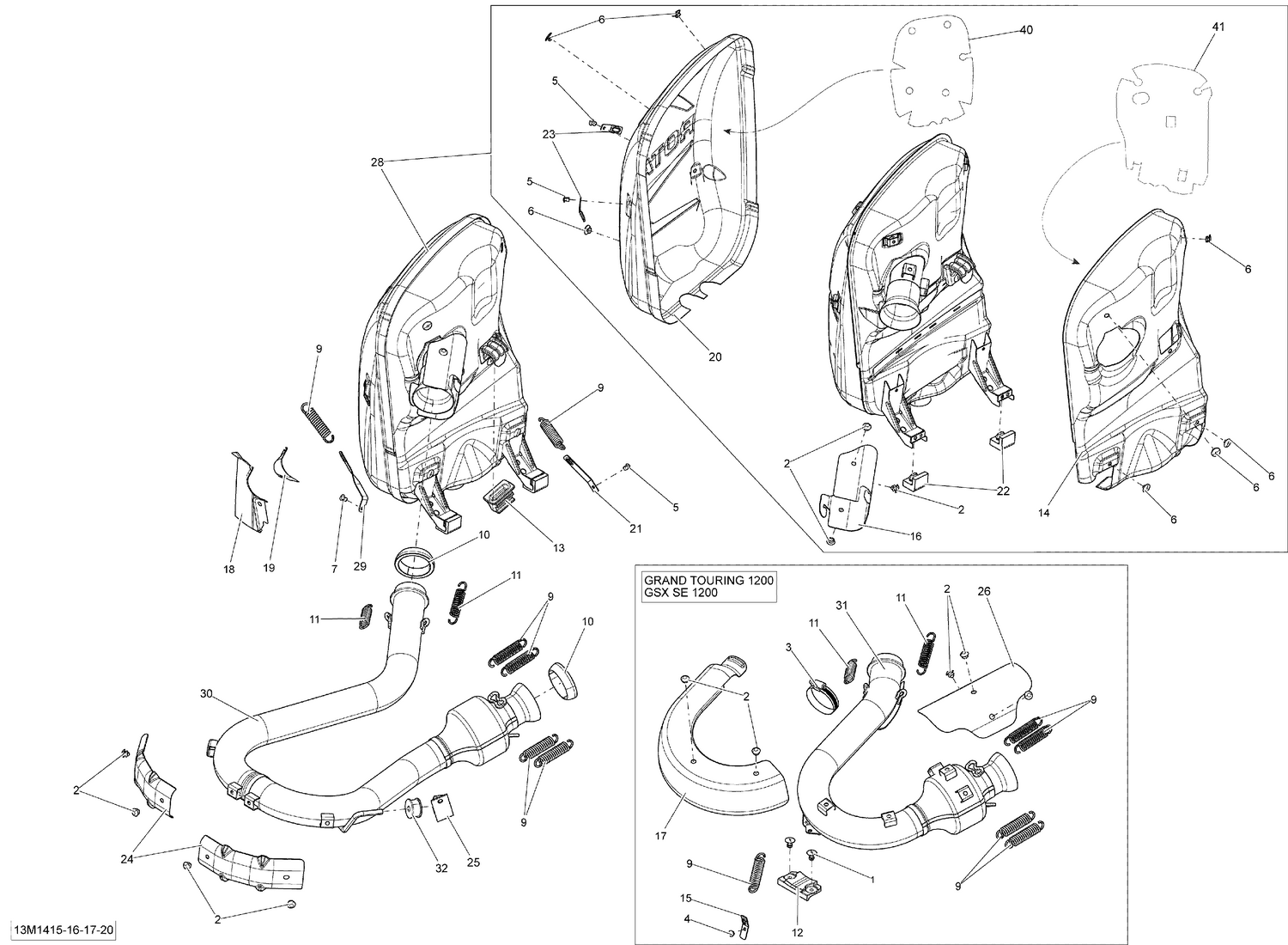

| Ref | Part Number | Description |
|---|
| 1 |
XXX |
Not Available As Spare Parts |
| 2 |
293150173 |
Rivet 6,4 mm |
| 3 |
XXX |
Not Available As Spare Parts |
| 4 |
XXX |
Not Available As Spare Parts |
| 5 |
390909200 |
Avex Rivet |
| 6 |
390910000 |
Pop Rivet 3/16” |
| 7 |
293150194 |
Interlock Rivet 3/16'' |
| 9 |
415107100 |
Spring |
| 10 |
514054174 |
Exhaust Gasket |
| 11 |
514054226 |
Spring |
| 12 |
XXX |
Not Available As Spare Parts |
| 13 |
514054346 |
Stopper |
| 14 |
514054369 |
LH HEAT SHIELD - Call your local BRP dealership |
| 15 |
XXX |
Not Available As Spare Parts |
| 16 |
514054396 |
DEFLECTOR - Call your local BRP dealership |
| 17 |
XXX |
Not Available As Spare Parts |
| 18 |
514054398 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 19 |
514054399 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 20 |
514054474 |
RH HEAT SHIELD - Call your local BRP dealership |
| 21 |
514054484 |
SPRING BRACKET - Call your local BRP dealership |
| 22 |
514054496 |
Lower Stopper |
| 23 |
514054522 |
Spring Bracket |
| 24 |
514054564 |
DEFLECTOR - Call your local BRP dealership |
| 25 |
514054600 |
SUPPORT - Call your local BRP dealership |
| 26 |
XXX |
Not Available As Spare Parts |
| 28 |
514054929 |
EXHAUST MUFFLER ASS'Y - Call your local BRP dealership |
| 29 |
514055030 |
Spring Bracket |
| 30 |
514055074 |
Long Tube Ass'y |
| 31 |
XXX |
Not Available As Spare Parts |
| 32 |
707600702 |
Anti-Vibration Rubber |
| 40 |
514054256 |
INSULATING WOOL - Call your local BRP dealership |
