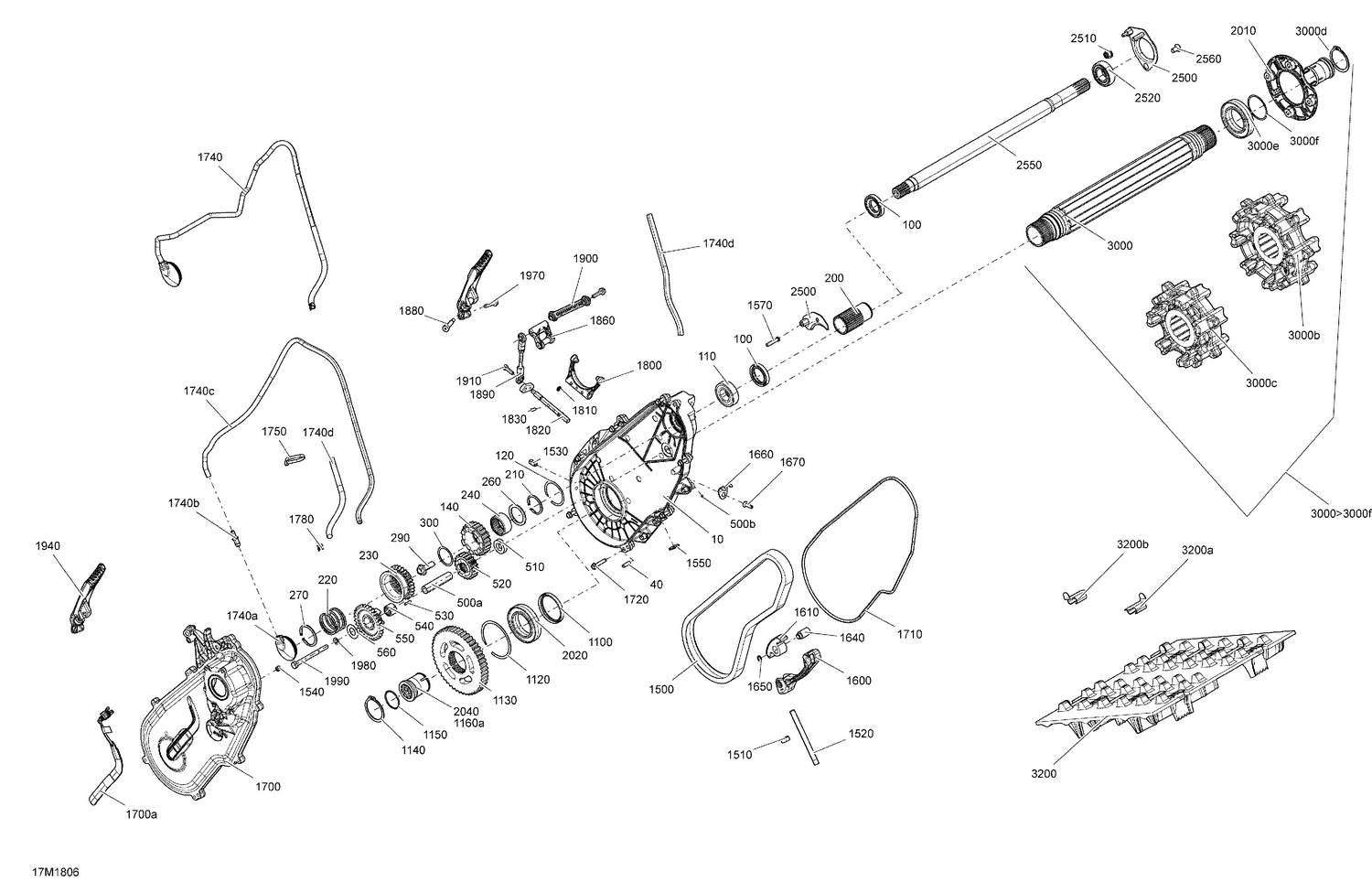

| Ref | Part Number | Description |
|---|
| 10a |
518325816 |
Plate |
| 10b |
233261434 |
Flange Elastic Nut M6 |
| 40 |
250400048 |
Dowel Pin |
| 100 |
293200168 |
Oil Seal This part replaces 293250175. |
| 110 |
293350115 |
Ball Bearing |
| 120 |
504152576 |
Circlip |
| 140 |
504152927 |
Sprocket, 21 Teeth |
| 200 |
504152979 |
Coupling |
| 210 |
293370054 |
Circlip |
| 220 |
504153179 |
Spring Release |
| 230 |
504152960 |
Slinding Gear, 27 Teeth |
| 240 |
293350063 |
Needle Bearing |
| 260 |
504152689 |
Washer |
| 270 |
293370055 |
Circlip |
| 290 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip |
| 300 |
504152862 |
Washer |
| 500a |
504083100 |
Reverse Shaft |
| 500b |
250400010 |
Rolled Pin M3 X 10 |
| 510 |
504078700 |
Ring |
| 520 |
293350064 |
Needle Bearing |
| 530 |
570048600 |
Alignement Rod |
| 540 |
293350064 |
Needle Bearing |
| 550 |
504152724 |
Sprocket, 29 Teeth |
| 560 |
504077300 |
Spacer |
| 1100 |
293200159 |
Oil Seal |
| 1110 |
293350059 |
Ball Bearing |
| 1120 |
504152582 |
Circlip |
| 1130 |
861805540 |
Kit Sprocket This part replaces 504152971. |
| 1140 |
504152572 |
Circlip |
| 1150 |
293300122 |
O-Ring |
| 1160 |
504152619 |
Magnetic Cap |
| 1500 |
504152630 |
Drive Chain, 106 Links |
| 1510 |
232006414 |
Hex. Nut M10 X 1.5 |
| 1520 |
504152602 |
Adjustment Screw |
| 1530 |
504152636 |
Magnetic Plug 1/8 - 27 NPTF |
| 1540 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1550 |
250200100 |
Bonded Washer |
| 1600 |
504153431 |
Chaine Tensionner |
| 1610 |
504152739 |
Slider Chain |
| 1640 |
504152841 |
Tensioner Axle |
| 1650 |
504152282 |
Circlip |
| 1660 |
504153122 |
Chain Slider |
| 1670 |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 1700a |
504152896 |
Rotation Sensor |
| 1710 |
293300130 |
Tight Seal |
| 1720 |
250000934 |
Hex. Flange Screw M6 X 30 |
| 1740a |
504152930 |
Cap |
| 1740b |
293710035 |
Straight Fitting |
| 1740c |
219704410 |
Polyurethane Hose 10000Mm Long |
| 1740d |
504153074 |
Tube Protector |
| 1750 |
414115200 |
Tie-Rap 180 mm |
| 1800 |
504153432 |
Fork Ass'y |
| 1810 |
414484400 |
O-Ring |
| 1820 |
504152956 |
Welded Axle Fork |
| 1830 |
250400045 |
Spring Pin M5 X 16 |
| 1860 |
504153427 |
Lever |
| 1880 |
250000340 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 1890 |
504152951 |
Ball Joint |
| 1900 |
504152710 |
Double Ball Joint |
| 1910 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 1920 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip |
| 1930 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 1940 |
504153082 |
Grip |
| 1960 |
250000340 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership |
| 1970 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 1980 |
504082900 |
Washer |
| 1990 |
207089044 |
Hex. Screw M8 X 90 |
| 2030 |
293300122 |
O-Ring |
| 2040 |
504152619 |
Magnetic Cap |
| 2050 |
504152572 |
Circlip |
| 2500 |
504153187 |
Bearing Housing |
| 2510 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 2520 |
293350074 |
Ball Bearing |
| 2550 |
504153000 |
Countershaft |
| 2560 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 3000b |
504153087 |
Sprocket, 7 Teeth |
| 3000c |
504153088 |
Sprocket, 7 Teeth |
| 3000d |
504153886 |
Retaining Ring This part replaces 504153426. |
| 3000e |
293350059 |
Ball Bearing |
| 3000f |
293300134 |
O-Ring |
| 3200 |
504154391 |
Track 16 X 154 X 1,5 This part replaces 504152761. |
