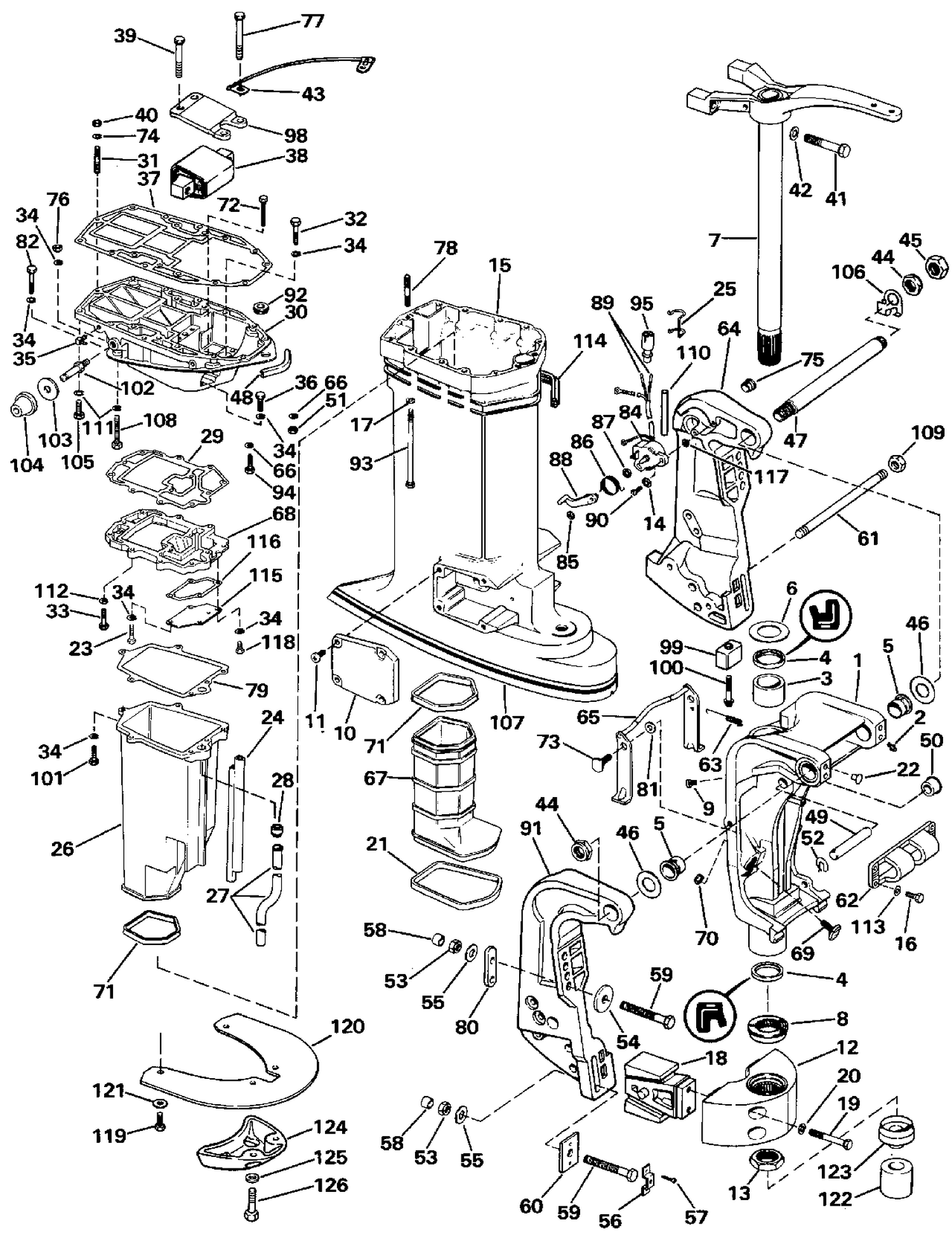

| Ref | Part Number | Description |
|---|
| 1 |
0432709 |
SWIVEL BRACKET |
| 1 |
0432711 |
SWIVEL BRACKET |
| 5 |
0321035 |
BRUSHING, Swivel bracket |
| 6 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 7 |
0392518 |
STEERING ARM ASSY. |
| 7 |
0392519 |
STEERING ARM ASSY. |
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 9 |
0306014 |
VIS, ancrage |
| 10 |
0338942 |
COVER, Mount bracket lower This part replaces 0320864. |
| 11 |
0322000 |
SCREW, Starter to crankcase |
| 12 |
0340006 |
BRACKET, Mount This part replaces 0327051. |
| 12 |
0911519 |
BRACKET, Mount |
| 13 |
0320746 |
CROU, support de montage |
| 15 |
0435103 |
EXHAUST HOUSING This part replaces 0397862. |
| 15 |
0435433 |
EXHAUST HOUSING This part replaces 0397861. |
| 16 |
0125544 |
SCREW, Bracket |
| 17 |
0307708 |
RONDELLE GROWER |
| 18 |
0434629 |
MOUNT, Lower This part replaces 0391774. |
| 18 |
0434632 |
MONTURE CAOUTCHOUC, inférieur This part replaces 0391710. |
| 19 |
0328078 |
SCREW, Mount |
| 20 |
0306314 |
L'WASHER,Scr,long |
| 21 |
0320961 |
JOINT, boîtier d'engrenages vers carter intérieur |
| 22 |
0334076 |
CAP, Tilt tube |
| 23 |
0333165 |
SCREW, Cover, long |
| 24 |
0334118 |
SEAL, Exhaust housing, front |
| 25 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 26 |
0334112 |
EXHAUST HOUSING, Inner, upper |
| 27 |
0346897 |
TUBE WATER, Inlet This part replaces 0321016. |
| 27 |
0346898 |
TUBE WATER, Inlet This part replaces 0321015. |
| 28 |
0305145 |
GROMMET |
| 29 |
0343809 |
GASKET, Plate to adapter This part replaces 0333566. |
| 30 |
0434147 |
ADAPTER, Exh. hsg. This part replaces 0398779. |
| 32 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 33 |
0312978 |
SCREEN, Ground plt to intmd hsg |
| 36 |
0306409 |
VIS, collecteur vers carter-moteur |
| 37 |
0333879 |
GASKET, Adapter to powerhead |
| 38 |
0395539 |
RUBBER MOUNT ASSY., Upper |
| 41 |
0912345 |
SCREW, Upper mount |
| 42 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 43 |
0583967 |
GROUND LEAD |
| 44 |
0335554 |
CROU, tube de relevage |
| 45 |
0322376 |
NUT, Wiper, tilt tube |
| 47 |
0335553 |
TILT TUBE |
| 48 |
0333434 |
SEAL, Cover to adapter |
| 49 |
0331038 |
PIN, Tilt cylinder |
| 50 |
0331010 |
BUSHING, Tilt cylinder |
| 52 |
0331029 |
SPRING CLIP |
| 53 |
0363254 |
NUT, Stern bracket screw This part replaces 0313623. |
| 54 |
0307238 |
RONDELLE |
| 55 |
0320248 |
RONDELLE, écrou |
| 56 |
0318273 |
Bolt hex retainer 1/2 in. |
| 57 |
0319886 |
SCREW |
| 58 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 59 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) This part replaces 0327053. |
| 59 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 59 |
0363012 |
SCREW, Bracket mounting This part replaces 0326614. |
| 60 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 61 |
0329417 |
THRUST ROD ASSY |
| 62 |
0125543 |
BRACKET, Steering tube |
| 64 |
0329712 |
STERN BRACKET ASSY., Port |
| 65 |
0390442 |
LOCATING LEVER, Rod |
| 67 |
0327796 |
EXHASUT HSG,Inner lower This part replaces 0320838. |
| 67 |
0327797 |
EXHAUST HOUSING, Inner lower This part replaces 0320839. |
| 68 |
0347251 |
WATER PLATE This part replaces 0333563. |
| 71 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 72 |
0312495 |
SCREW, Adapter to inner hsg. |
| 73 |
0329109 |
SHOULDER SCREW |
| 76 |
0328742 |
NUT |
| 77 |
0330931 |
VIS, support supérieur |
| 78 |
0314956 |
STUD |
| 79 |
0334113 |
GASKET, Inner exh hsg to water plate |
| 80 |
0321735 |
SUPPORT, Stern bracket |
| 82 |
0303398 |
VIS, support |
| 84 |
0583359 |
SENDING UNIT ASSY |
| 91 |
0329713 |
STERN BRACKET, Starboard |
| 92 |
0329748 |
SEAL Shift rod |
| 93 |
0355037 |
SCREW, Exhaust housing to c/c This part replaces 0332128. |
| 96 |
0392123 |
ANODE |
| 97 |
0328049 |
SCREW |
| 98 |
0330929 |
PLATE, Upper mount |
| 99 |
0433458 |
ANODE, Port stern bracket |
| 100 |
0333350 |
SCREW, Anode |
| 101 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 102 |
0329743 |
STUD, Cover mount |
| 103 |
0349556 |
Washer This part replaces 0329749. |
| 104 |
0349557 |
MOUNT This part replaces 0328584. |
| 106 |
0352105 |
CLAMP, Cable This part replaces 0327264. |
| 107 |
0211388 |
DECAL |
| 107 |
0332731 |
DECAL Exh. hsg., Jo. |
| 107 |
0333960 |
DECAL, Exh. Hsg. |
| 108 |
0311416 |
SCREW, Adapter to cylinder |
| 109 |
0329742 |
LOCKNUT, Thrust rod |
| 110 |
0512790 |
SLEEVE, Motor & sending leads |
| 114 |
0398200 |
SEAL ASSY., Exhaust hsg. |
| 115 |
0333565 |
COVER, Water plate |
| 116 |
0333564 |
GASKET, Cover to water plate |
| 119 |
0910741 |
SCREW, Cover plate |
| 120 |
0345776 |
DÉFLECTEUR DE PROJECTIONS This part replaces 0334979. |
| 122 |
0911312 |
JOINT, arbre d'articulation |
| 123 |
0912233 |
DISPOSITIF DE RETENUE, joint arbre d'articulation |
| 124 |
0345776 |
DÉFLECTEUR DE PROJECTIONS This part replaces 0913262. |
