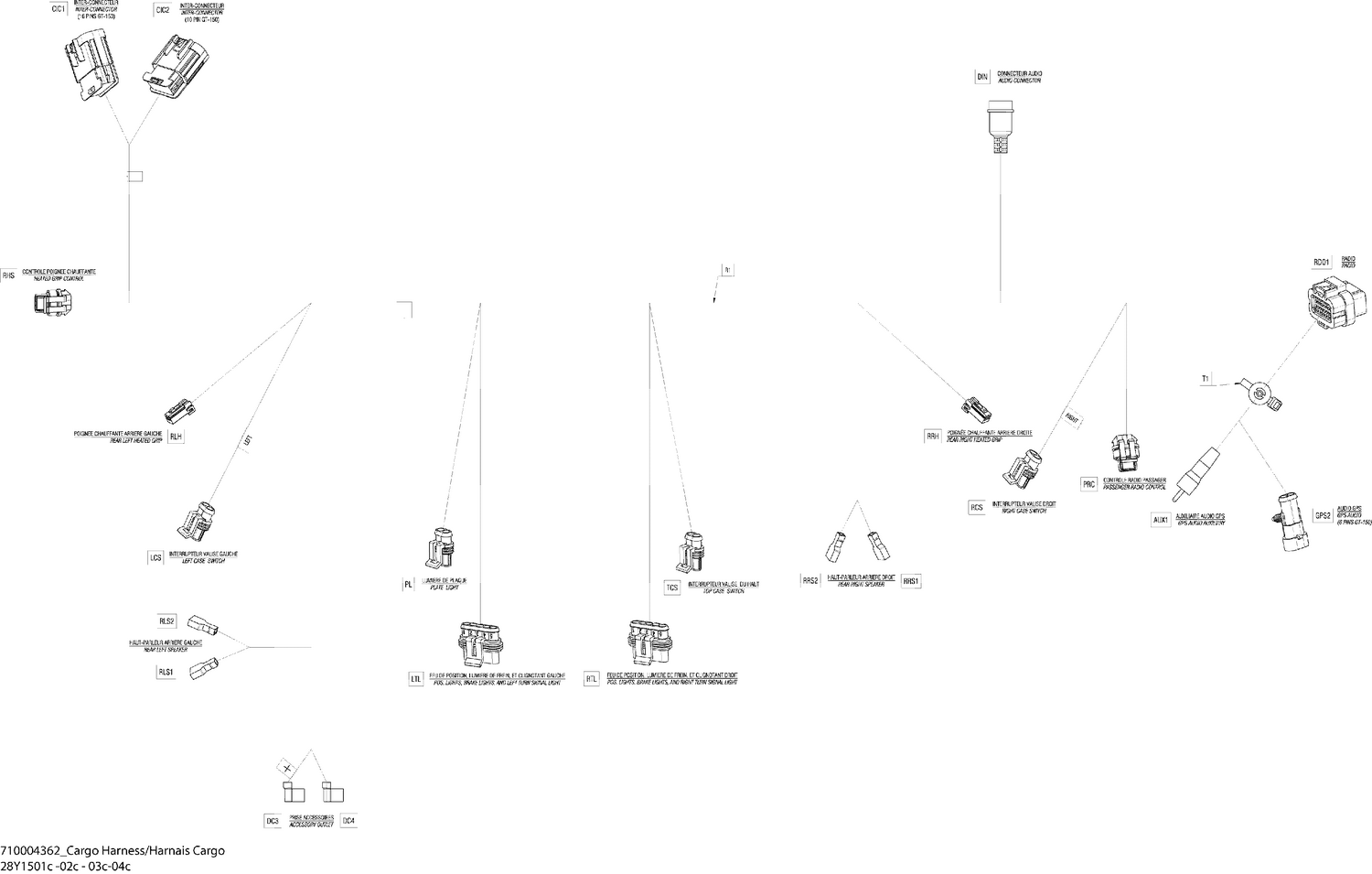

10- Electrical Harness Cargo_28Y1501c
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| AUX1 | 710001227 | Housing |
| CIC1 | 710001223 | Terminal |
| CIC1 | 710001224 | Terminal |
| CIC1 | 710001225 | Cap |
| CIC1 | 710001233 | Seal |
| CIC1 | 710001332 | Seal Wire |
| CIC1 | 710001952 | Housing |
| CIC2 | 409010300 | Female Terminal |
| CIC2 | 710001223 | Terminal |
| CIC2 | 710001224 | Terminal |
| CIC2 | 710001225 | Cap |
| CIC2 | 710001233 | Seal |
| CIC2 | 710001332 | Seal Wire |
| DC3 | 409010300 | Female Terminal |
| DC4 | 710003385 | WIRING HARNESS_DIN - Call your local BRP dealership |
| DIN | 409209400 | Male Terminal Housing, 2 Circuits |
| GPS2 | 278001013 | Wire Seal |
| GPS2 | 409012900 | Male Terminal |
| GPS2 | 710002033 | Connector Holder |
| GPS2 | 710002796 | Terminal |
| LCS | 515176621 | Wire Seal |
| LCS | 710000780 | Connector |
| LCS | 710001340 | Female Terminal |
| LTL | 278001013 | Wire Seal |
| LTL | 278001014 | Female Terminal |
| LTL | 409209500 | Female Housing, 2 Circuits |
| LTL | 515176621 | Wire Seal |
| LTL | 710001340 | Female Terminal |
| PL | 278002387 | Female Terminal Housing 3 Circuits |
| PL | 515176621 | Wire Seal |
| PL | 710001340 | Female Terminal |
| PRC | 710000926 | Seal |
| PRC | 710001164 | Female Terminal |
| R1 | 409209500 | Female Housing, 2 Circuits |
| R1 | 710002069 | RESISTOR - Call your local BRP dealership |
| RCS | 515176621 | Wire Seal |
| RCS | 710001340 | Female Terminal |
| RCS | 710001849 | Housing |
| RDO1 | 278002387 | Female Terminal Housing 3 Circuits |
| RDO1 | 515176345 | Plug |
| RDO1 | 515176348 | Female Terminal |
| RDO1 | 515176541 | Female Terminal |
| RDO1 | 710001908 | TERMINAL - Call your local BRP dealership |
| RHS | 515175658 | Female Housing, 2 Circuits |
| RHS | 710000925 | Terminal |
| RHS | 710001153 | Seal Wire |
| RLH | 515175231 | Female Terminal |
| RLH | 710000082 | Female Terminal |
| RLS1 | 409010700 | Female Terminal |
| RLS2 | 515175658 | Female Housing, 2 Circuits |
| RRH | 515175231 | Female Terminal |
| RRH | 710000082 | Female Terminal |
| RRS1 | 409010700 | Female Terminal |
| RRS2 | 710000780 | Connector |
| RTL | 278001013 | Wire Seal |
| RTL | 278001014 | Female Terminal |
| RTL | 515176621 | Wire Seal |
| RTL | 710001340 | Female Terminal |
| T1 | 409209500 | Female Housing, 2 Circuits |
| TCS | 515176621 | Wire Seal |
