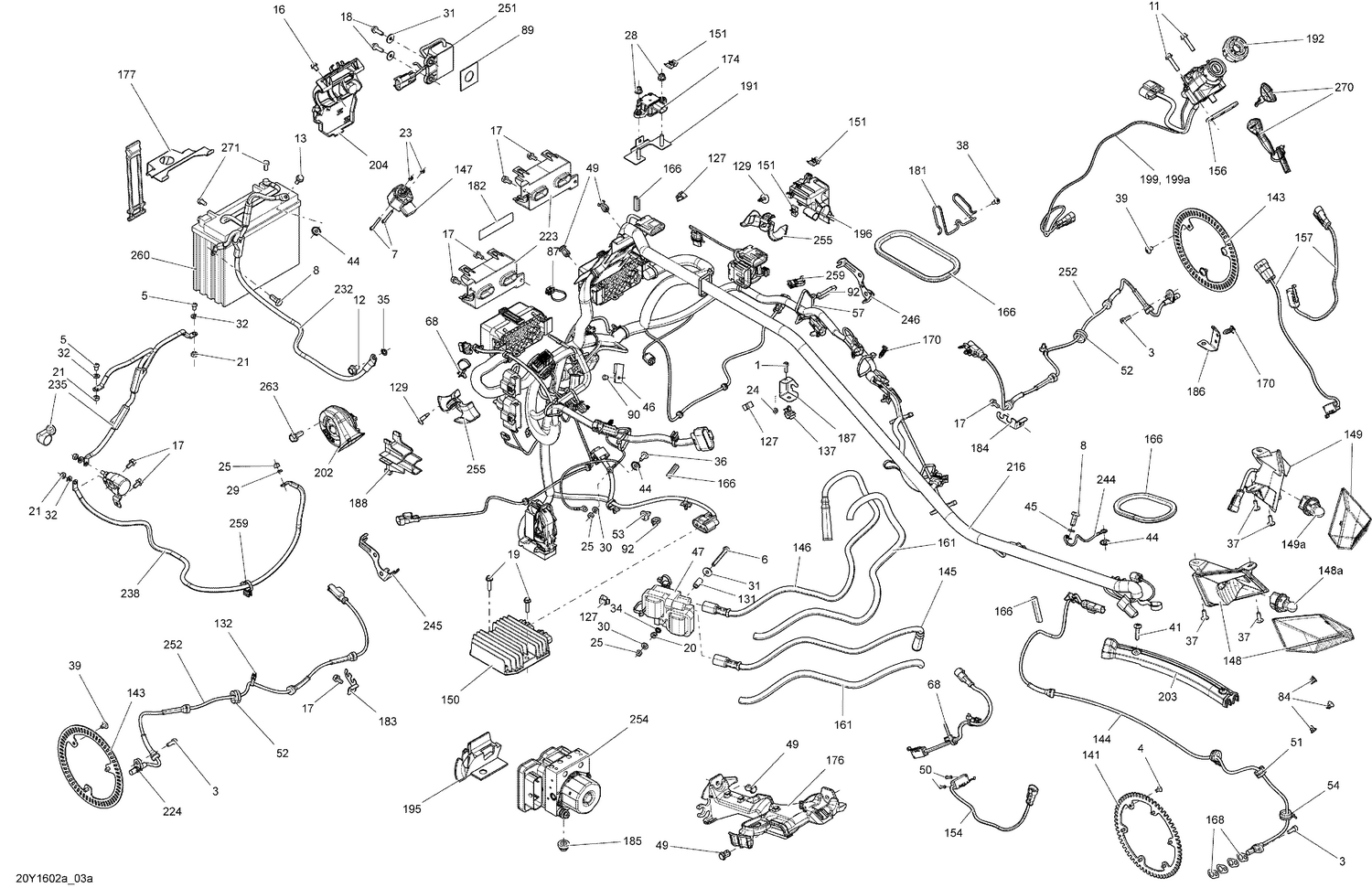

10- Electrical System - General
Parts (103)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205051644 | Socket Screw M5 X 16 |
| 3 | 205561660 | Socket Head Screw M6 X 16, Scotch Grip |
| 4 | 205851036 | Socket Head Screw M5 X 10 |
| 5 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 6 | 207065544 | Hex. Screw M6 X 55 |
| 7 | 207144044 | Hex. Cap Screw |
| 8 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 11 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 12 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 13 | 207661644 | Hex. Flange Screw M6 X 16 |
| 16 | 210261050 | Hex. Forming Screw M6 X 10 |
| 17 | 210261250 | Hex. Flange Screw M6 X 12 |
| 18 | 210262050 | Hexagonal Head Screw |
| 19 | 210262550 | Hex. Flange Forming Screw M6 X 25 |
| 20 | 232061414 | Hex. Nut M6 |
| 21 | 232061600 | Hex. Nut M6 |
| 23 | 232541484 | Elastic Stop Nut M4 |
| 24 | 232551600 | Hex. Elastic Nut M5 |
| 25 | 232561414 | Elastic Stop Nut M6 |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 29 | 234061600 | Stainless Flat Washer M6 |
| 30 | 234061670 | Black, Flat Washer 6 mm |
| 31 | 234062410 | Flat Washer 6 mm |
| 32 | 234161601 | Lock Washer Helical M6 |
| 34 | 234461608 | External Serrated Lock Washer 6 mm |
| 35 | 234481608 | Serrated Lock Washer 8 mm |
| 36 | 250000348 | Torx Truss Screw M6 X 16 |
| 37 | 250000721 | Torx Truss Screw M6 X 16 |
| 38 | 250000742 | Torx Screw M5 X 14 |
| 39 | 250000995 | Torx-truss M/s M6 X 10 This part replaces 250000747. |
| 41 | 250000843 | Torx Truss Screw M6 X 30 |
| 44 | 250200041 | Lock Washer Serrated M6 |
| 45 | 250200111 | Washer |
| 46 | 270000141 | Clip |
| 47 | 278001546 | Ignition Coil |
| 49 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 50 | 293150150 | Pop Rivet |
| 51 | 293720084 | Grommet |
| 52 | 293720095 | Grommet |
| 53 | 293730040 | Mount Dart This part replaces 293730018. |
| 54 | 293750001 | Tie Wrap 94 mm |
| 57 | 293750008 | Tie Wrap 368 mm |
| 68 | 293750009 | Tie-Rap 173 mm |
| 84 | 293750044 | Tie Rap Mount |
| 87 | 293750063 | Clip Tie-Rap |
| 89 | 293830091 | Rubber Bumper |
| 90 | 390402400 | Pop Rivet 3/16" |
| 92 | 414115200 | Tie-Rap 180 mm |
| 127 | 414227300 | Clip |
| 129 | 414745900 | Tuflock Phillips Plastic Screw |
| 131 | 512059812 | SPACER - Call your local BRP dealership |
| 132 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 137 | 515176795 | Tie Rap Mount (screwable) |
| 141 | 705601372 | Sensor Wheel |
| 143 | 705601512 | Front Sensor Wheel |
| 144 | 706202361 | Speed Sensor |
| 145 | 707000399 | Cable Ass'y |
| 146 | 707000518 | Cable Ass'y |
| 147 | 219800354 | Steering Position Sensor |
| 148 | 515176850 | LH Tail Light Ass'y |
| 149 | 515176849 | RH Tail Light Ass'y |
| 150 | 710001191 | Voltage Regulator |
| 151 | 710001222 | Lock |
| 156 | 710001365 | Switch Support |
| 157 | 710001379 | Brake Pressure Switch Ass'y |
| 161 | 219704407 | Tubing 10 MM 1000MM Long |
| 166 | 219704354 | Trim 1000Mm Long |
| 168 | 710002023 | Shim |
| 170 | 710002033 | Connector Holder |
| 174 | 710002677 | Yaw Rate Sensor |
| 176 | 710002860 | Rear Support |
| 177 | 710002893 | Battery Holder |
| 181 | 710003017 | Grommet Spindle |
| 182 | 710003077 | RH/LH Fuse Box Decal |
| 183 | 710003156 | Speed Sensor Holder |
| 184 | 710003157 | Speed Sensor Holder |
| 185 | 710003279 | Shock Damper |
| 186 | 710003305 | Connectors Bracket |
| 187 | 710003306 | KNOCK HOLDER SUPPORT - Call your local BRP dealership |
| 188 | 710003322 | Connector Support |
| 191 | 710003494 | YRS Holder |
| 192 | 710003594 | Switch Cover |
| 195 | 710003996 | VCM Harness Protector |
| 196 | 710004086 | Connector Support |
| 199 | 710007316 | Ignition Switch This part replaces 710004277. |
| 199a | 219800373 | DESS Antenna |
| 202 | 710004229 | HORN - Call your local BRP dealership |
| 203 | 710004281 | Protector |
| 204 | 710004308 | Wire Support |
| 223 | 710004472 | Fuse Holder Support |
| 232 | 710004733 | Cable Neg |
| 235 | 710004734 | CABLE POSITIVE - Call your local BRP dealership |
| 238 | 710004735 | START CABLE - Call your local BRP dealership |
| 244 | 710004849 | Tank Cable |
| 245 | 710004860 | LH Support Wire |
| 246 | 710004861 | RH Support Wire |
| 251 | 710004916 | Dess Module |
| 252 | 219800456 | Kit Speed Sensor This part replaces 710004923. |
| 254 | 219800375 | VCM Module |
| 255 | 710004931 | Harness Holder |
| 259 | 710005037 | Clip Tie-Rap |
| 263 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 269 | 520000758 | Bulb |
