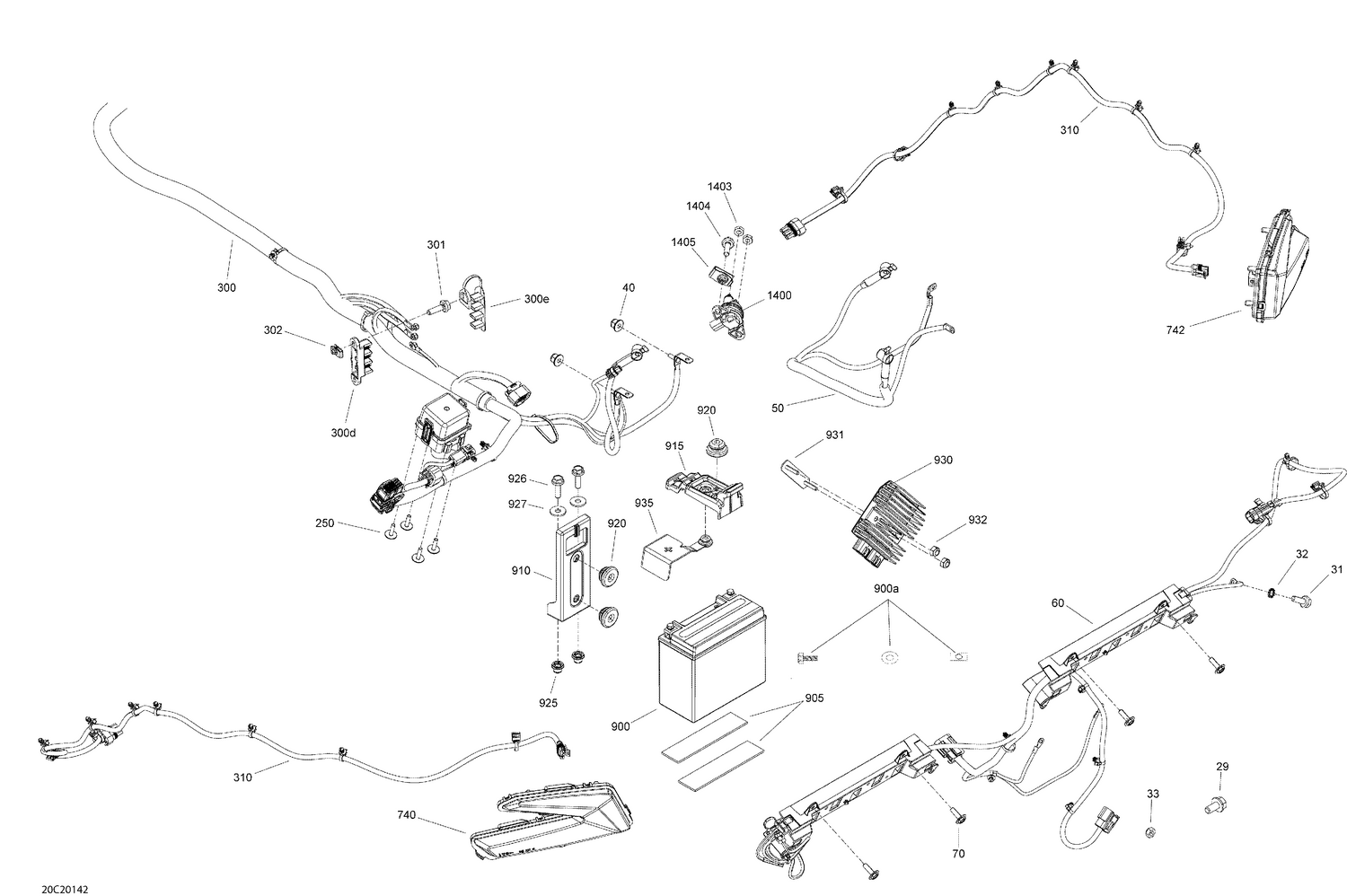

10- Electric - System - Rear Section
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 29 | 207581644 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 31 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 32 | 234461608 | External Serrated Lock Washer 6 mm |
| 33 | 232561414 | Elastic Stop Nut M6 |
| 40 | 233261494 | Hex. Flange Elastic Nut M6 |
| 50 | 710006022 | Starter Wiring Harness |
| 60 | 710007036 | Junction Wiring Harness This part replaces 710006809. |
| 70 | 250000959 | Screw PT Type K-50 X 16 |
| 250 | 250000725 | Screw M4 X 16 |
| 300d | 710004825 | Borne 3 positions |
| 300e | 710006610 | Junction Block Cover |
| 301 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 302 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 310 | 710006424 | Rear Wiring Harness |
| 740 | 710004743 | LH Tail Light |
| 742 | 710004744 | RH Tail Light |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 293830126 | Rubber Pad |
| 910 | 710004788 | Fixation Plate |
| 915 | 710004789 | Fixation Plate |
| 920 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 925 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 926 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 927 | 234062410 | Flat Washer 6 mm |
| 930 | 710005842 | Voltage Regulator |
| 931 | 710005782 | Bracket |
| 932 | 232561414 | Elastic Stop Nut M6 |
| 935 | 710006471 | Battery Cable Cap |
| 1400 | 278003012 | Starter Relay |
| 1403 | 232561200 | Brass Elastic Stop Nut M6 |
| 1404 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
