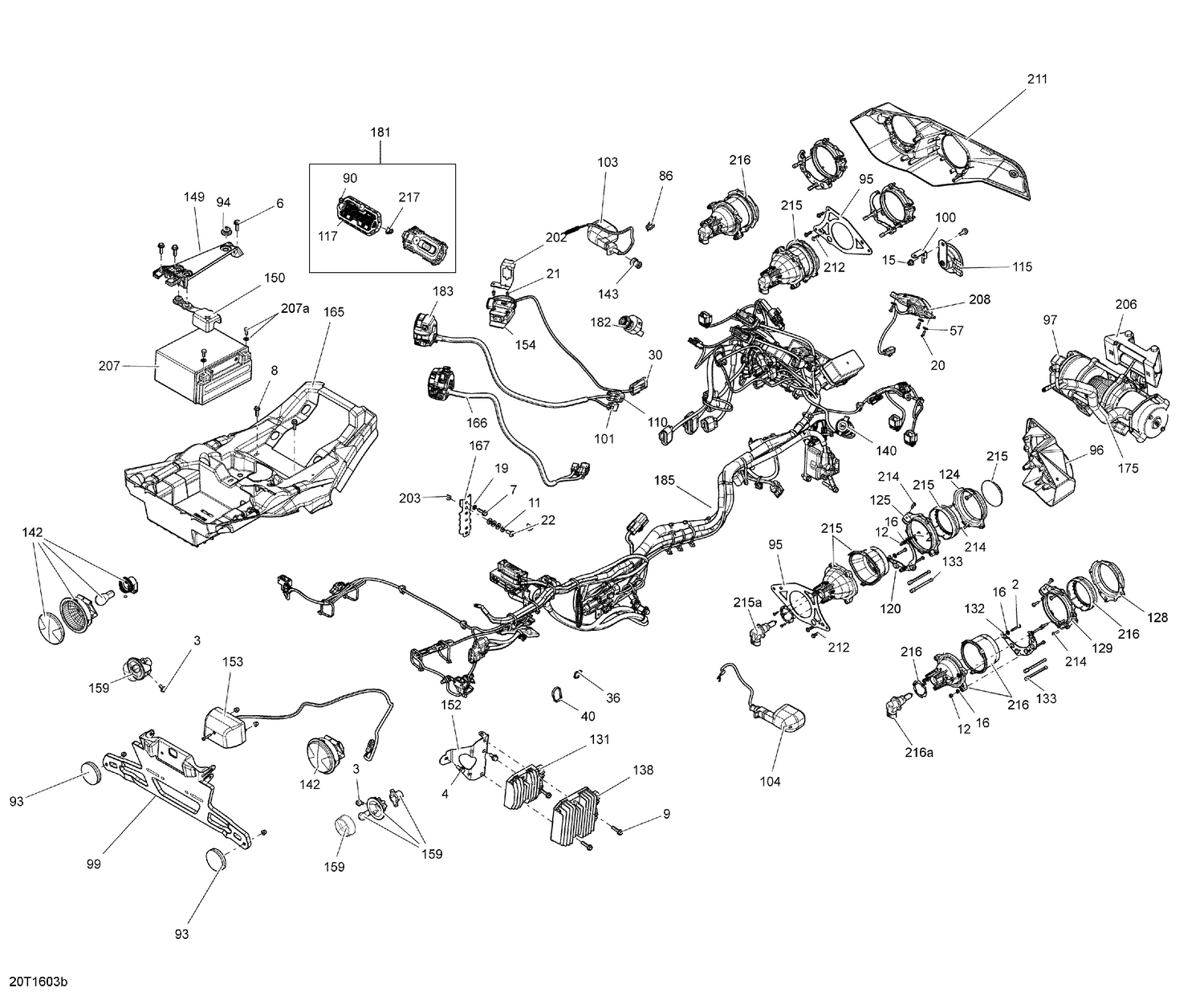

10- Electrical System
Parts (70)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip |
| 2 | 207142544 | Hex. Screw M4 X 25 |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 6 | 207662054 | Hex. Flange Screw M6 X 20 |
| 7 | 210262040 | Hex. Flange Screw M6 X 20 |
| 8 | 210262050 | Hexagonal Head Screw |
| 9 | 210262550 | Hex. Flange Forming Screw M6 X 25 |
| 11 | 224061121 | Flat Washer |
| 12 | 232541414 | Elastic Stop Nut M4 |
| 15 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 234051410 | Flat Washer M5 |
| 17 | 234161601 | Lock Washer Helical M6 |
| 19 | 234461608 | External Serrated Lock Washer 6 mm |
| 22 | 250000717 | Torx Head Screw M6 X 16 |
| 25 | 270000141 | Clip |
| 36 | 293750001 | Tie Wrap 94 mm |
| 40 | 293750008 | Tie Wrap 368 mm |
| 53 | 293830005 | Rubber Bumper |
| 55 | 390402300 | Pop Rivet 3/16" |
| 56 | 391301600 | Washer |
| 61 | 414115200 | Tie-Rap 180 mm |
| 86 | 414227300 | Clip |
| 90 | 704904615 | BRP Logo13 mm This part replaces 704901270. |
| 94 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 95 | 705004309 | Painted Headlamp Support |
| 96 | 705004509 | RH Front Facia |
| 116 | 710000992 | Clip |
| 117 | 710001183 | Trim Ring Ass'y |
| 120 | 710001037 | LH Low Light Support |
| 120 | 710001094 | RH Low Light Support |
| 124 | 710001081 | RH Low Front Housing |
| 124 | 710001083 | LH Low Front Housing |
| 125 | 710001082 | RH Low Rear Housing |
| 125 | 710001084 | LH Low Rear Housing |
| 128 | 710001085 | RH High Front Housing |
| 128 | 710001087 | LH High Front Housing |
| 129 | 710001086 | RH High Rear Housing |
| 129 | 710001088 | LH High Rear Housing |
| 131 | 710001191 | Voltage Regulator |
| 132 | 710001036 | LH High Light Support |
| 132 | 710001115 | RH High Light Support |
| 133 | 710001147 | Setting Screw |
| 140 | 710001248 | DC Outlet |
| 141 | 710007777 | Starter Relay This part replaces 710001364. |
| 142 | 710001645 | Tail Light Ass'y |
| 142a | 520000758 | Bulb |
| 149 | 710009129 | Retaining Plate This part replaces 710002404. |
| 150 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 152 | 710002587 | Rectifier Support |
| 161 | 710003006 | Housing |
| 165 | 710008370 | Battery Support This part replaces 710003990. |
| 167 | 710004118 | Connector Bracket |
| 168 | 710004324 | Brake Harness |
| 173 | 710004377 | Positive Cable |
| 177 | 710004382 | Ground Cable |
| 181 | 710005087 | Speedometer This part replaces 710005024. |
| 185 | 710005005 | Main Harness This part replaces 710004619. |
| 203 | 232361493 | Domed Nut M6 |
| 207 | 410301203 | Battery YUASA YTX20L |
| 207a | 250000282 | Battery Bolt Kit |
| 208a | 520000758 | Bulb |
| 211 | 705004508 | LH Front Facia |
| 212 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 213 | 710005944 | Light Harness This part replaces 710004326. |
| 214 | 250000723 | Phillips Screw K40 X 16 |
| 215 | 710002524 | Low Beam Ass'y |
| 215a | 415129249 | Halogen Bulb |
| 216 | 710002525 | High Beam Ass'y |
| 216a | 415129249 | Halogen Bulb |
| 217 | 715900265 | Button |
